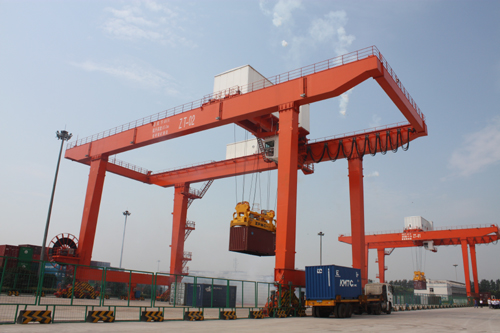

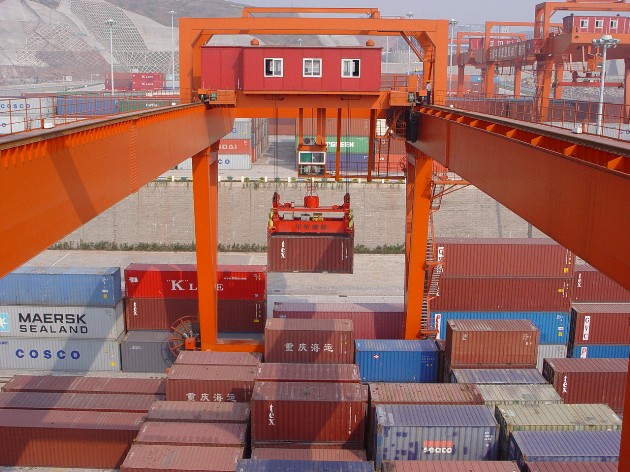

The Smart Control System Stacking Gantry Crane has the advantages of excellent technical performance, high loading and unloading efficiency, low operating cost, high utilization rate of the yard, convenient operation and maintenance, and easy automation, and can meet the operational requirements of different yards. The main feature of the stacking gantry crane is that the crane runs along the track and has the advantages of being able to realize automatic control. Compared with the gantry crane, the free space of the container yard can be even larger. It is the machinery with the highest site utilization rate in all container yard machinery and the largest number of piles per unit area. It is suitable for use in container terminals with an annual throughput of 100,000 TEUs or more or two consecutive berths.
1. High loading and unloading efficiency
2. Centralized control
3. Horizontal shift in the amplitude process
4. Container alignment during rotation
5. Offset center of gravity adjustment device
6. Lifting speed can be fine-tuned, smooth braking
7. Change the attachment is convenient
8. Good safety protection system
Item | Data |
Capacity(NOT including spreader) | 30.5-40.5t |
Span | 15.4-23.47m |
Lifting height | 18.2m |
lifting speed | 12-46m/min |
cross travelling speed | 45-70m/min |
long travelling speed | 45-100m/mim |
Working class | ISOA6-A7/FEM3M-FEM4M |
Power source | as your demands |
Other | According to your specific usage, specific model and design will offer |
