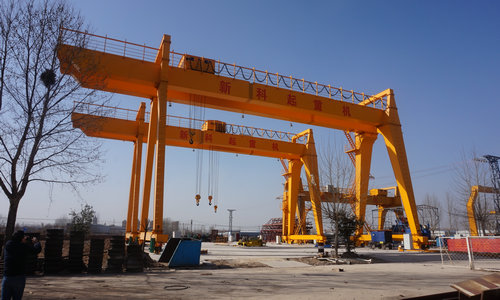

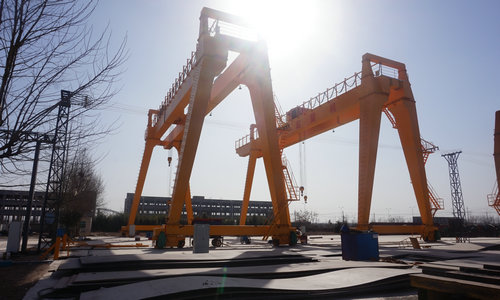

The metal structure of the utility model is like a portal frame, and two support feet are installed under the main beam, and the utility model can be directly carried on the track of the ground, and both ends of the main beam can be provided with overhanging cantilever beams.

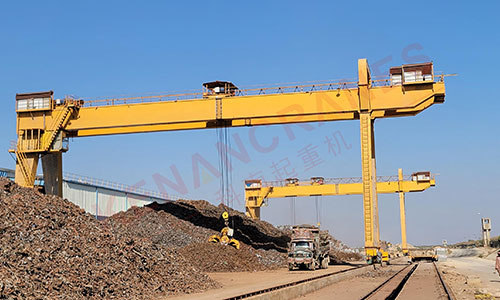

Gantry crane is widely used in the port yard because of its high utilization ratio, large range of operation, wide adaptability and versatility.
1. Overload protection device.
2. Top quality long time bearing polyurethane materials buffer.
3. Crane traveling limit switch.
4. Voltage lower protection function.
5. Emergency stop system.
6. Lifting height limit device.
We are a leading manufacturer of gantry cranes, offering light and heavy duty gantry cranes to meet every lifting need. The main models of 30-ton gantry cranes produced by our company are A type gantry cranes, U type gantry cranes, semi gantry cranes, truss gantry cranes, cantilever gantry cranes, portable gantry cranes, etc., which are well received by customers. Other designs can also be ordered. We can customize the 30-ton gantry crane system according to your actual needs.
| Mechanism Item | Result | |
| Lifting capacity （ton） | 30 | |
| Lifting height (m) | Main | 10-12 |
| Auxiliary | 10.72-13 | |
| Span (m) | 18-35 | |
| Working environment temperture (℃) | -20~40 | |
| Speed (m/min) | Lifting Speed (Main) | 5.9-9.3 |
| Lifting Speed (AuX) | 8.5-16.7 | |
| Trolley | 34-44.6 | |
| Cab | 34.5-47.1 | |
| Working system | A5 | |
| Power source | 3-Phase A C 50HZ 380V | |
