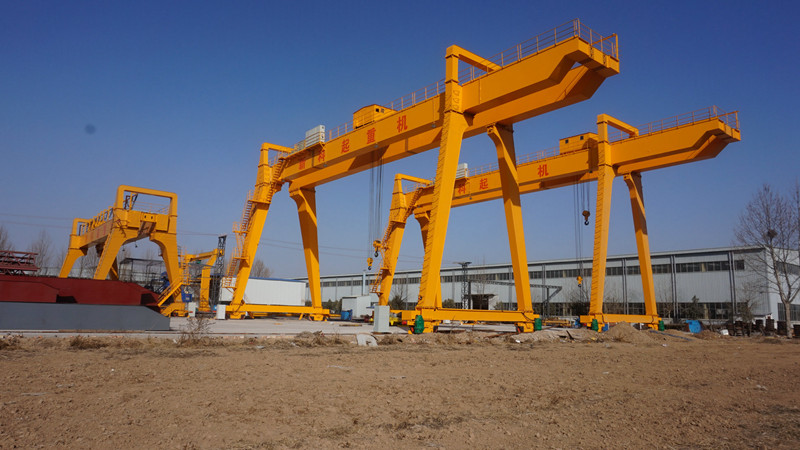

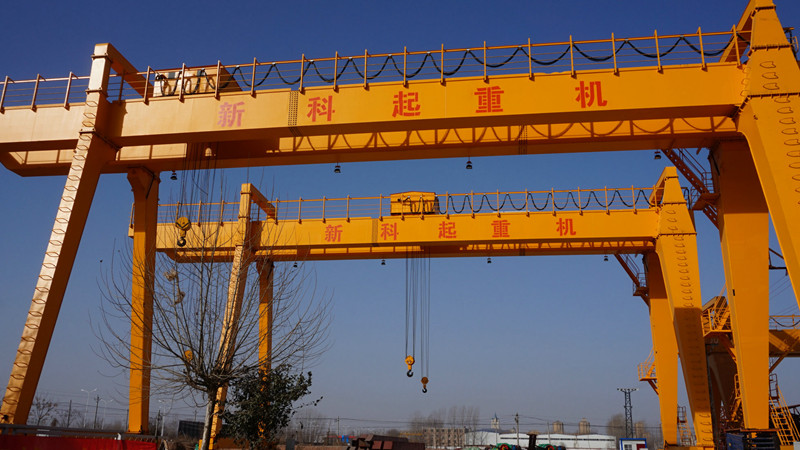

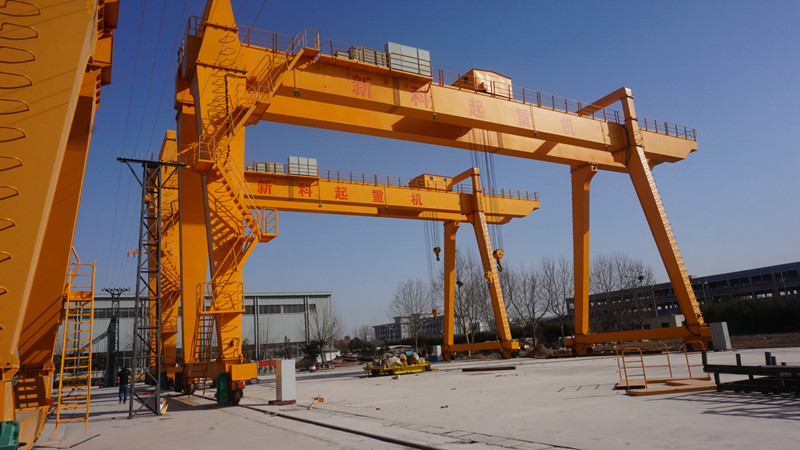

High Reliable Control Double Girder Goliath Gantry Cranes adopts the latest German technology, lifting is provided with double speed (frequency conversion is optional), and all cars are the standard configuration of frequency conversion, the use of new conductive I-steel rail cable conductive device to ensure the efficient operation of lifting equipment, from the lifting motor to the wire rope, from the gear box to the electrical equipment, have undergone a rigorous quality standard audit, with Both ground and air operations.
There are two types of ground operation with line handle operation and remote control handle operation; air operation refers to the driver's cab operation, comfortable and flexible operation.
1. The use of box-shaped double beam welding structure, increase the working space and easy to transport, installation and maintenance.
2. The car adopts the opposite rail cable conductive device.
3. Standardization, serialization and generalization of parts and components.
4. There are two kinds of cable coil type (divided into left and right end) and sliding line type (divided into left and right end) for users to choose.
5. The driver’s cab has a wide field of vision and a linkage console, which makes the operation flexible, balanced and comfortable.It can also be equipped with fan, hot air device, air cooler, air conditioner, walkie-talkie, etc.
| Capacity | 5~500t |
| Span | 12~35m or as require |
| Left cantilever | 0~6m or as require |
| Right cantilever | 0~6m or as require |
| Lifting height | 3~60m |
| Lifting speed | 2~16m/min |
| Cross speed | 20~60m/min |
