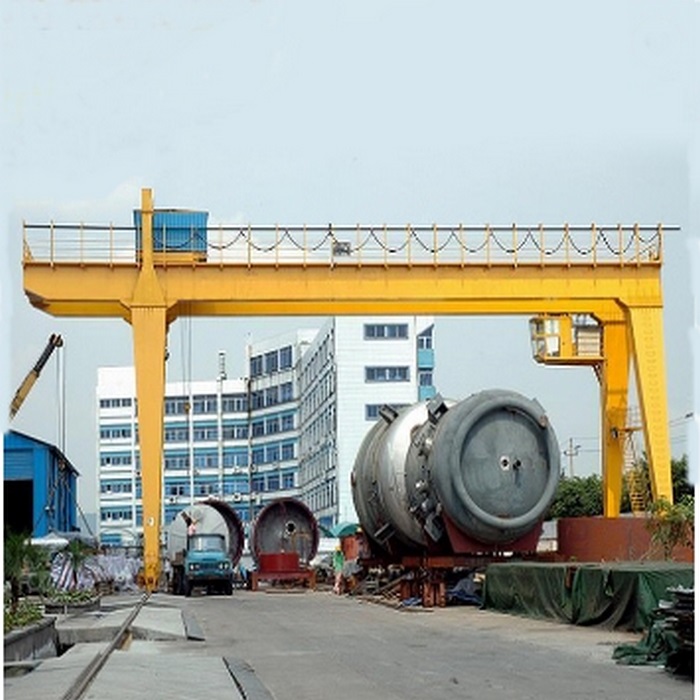

40 ton Gantry Crane consists of four main parts, namely, the bridge structure, the crane traveling mechanism, the trolley and the electric equipment. All movements of the crane are controlled in the operating room.
40 ton gantry cranes are usually double girder construction which helps to improve the efficiency and safety of your production line. In various lifting applications, we provide different types of 40 ton gantry cranes to meet your actual needs. According to the frame structure, it can be divided into A-frame gantry crane and U-frame gantry crane, and according to the operating mechanism, it can be divided into rail-mounted gantry crane and rubber tire gantry crane.
This type of double beam gantry crane has two conductive forms, cable and sliding contact line. When buy this crane, any form will be fine, and also tell us the crane's working environment and power source. Each type is designed for a specific application and work environment, and has its own advantages and disadvantages. We can design cost-effective lifting solutions according to your requirements to maximize your benefits.
1. 14 months warranty when products leave the factory, or 12 months warranty after installation and commissioning in addition to the human damage factors.
2. 2 years spare-parts provided for better maintenance.
3. Professional technical staffs provide installation, commissioning and training services.
4. Delivery with English user manual, parts manual, product certification and other relevant certificates.
5. Technical advisory for any time.
Lifting Capacity | T | 16/3.2 | 20/5.0 | 32/8.0 | 50/10.0 | 75/20.0 | ||
Span | M | 18-35 | ||||||
Max. Lifting Height | Main hook | M | 10/12 | |||||
Aux hook | 10.6-12.6 | 10.6-12.6 | 10.7-12.7 | 11.1-13.1 | 11.1-13.1 | |||
Working System | A5 | |||||||
Speed | Hoisting | Main | m/min | 15.3 | 15 | 13.2 | 5.9 | 6.25 |
Aux | 22 | 19 | 17 | 13.2 | 9.28 | |||
Trolley Travelling | 44.7 | 44.7 | 38.6 | 36 | 38.9 | |||
Crane Travelling | 30-35 | 34.5-32.9 | 52.53 | 45-38.6 | 38.5-32.6 | |||
Weight | Trolley | t | 7.1 | 8.1 | 11.7 | 16.8 | 29.4 | |
Total Weight | 92-142 | 105-148 | 92-142 | 111-156 | 189-245 | |||
Max. Wheel Load | 275-369 | 341-435 | 275-369 | 392-483 | 314-361 | |||
