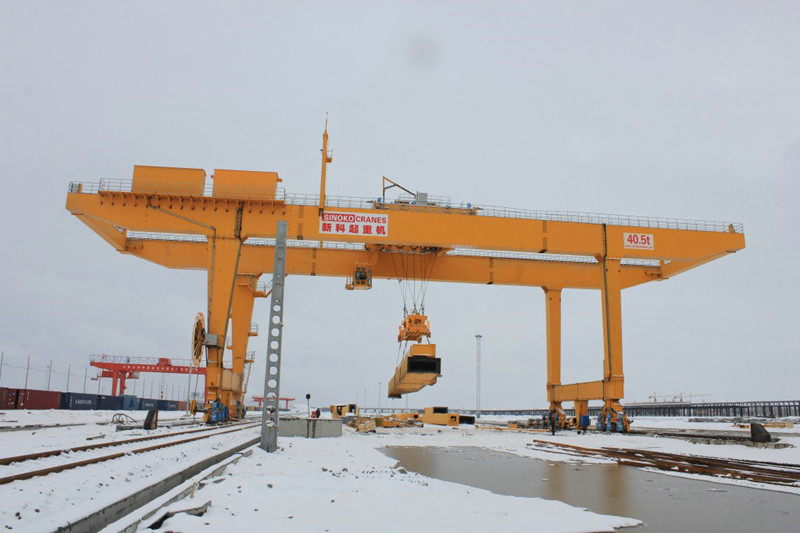

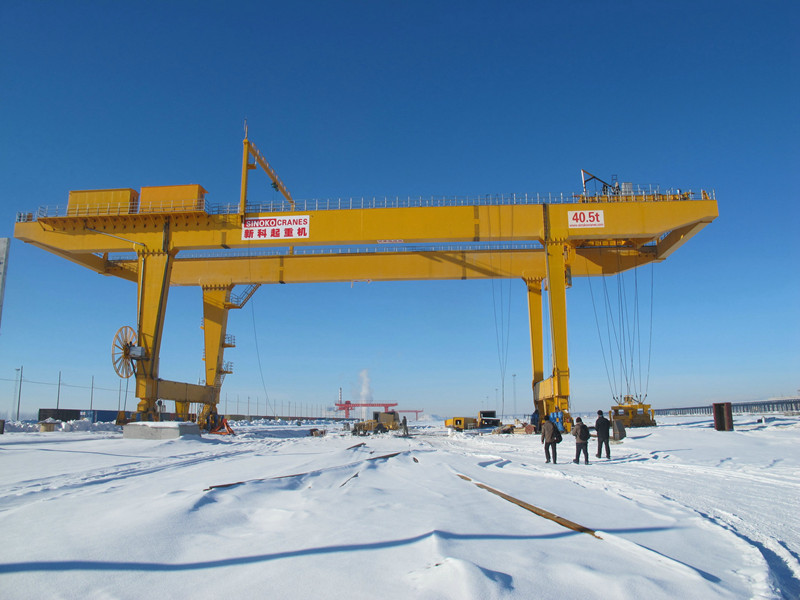

Due to its metal structure like a portal frame and carrying two legs under the main beam, Automatic Control Yard Gantry Crane can directly walk on the track of the ground, and the main beam has cantilever beams at both ends.
Automatic Control Yard Gantry Cranes consist of three parts: mechanical transmission, metal mechanism and electrical equipment. The mechanical transmission part consists of a hoisting mechanism, a crane trolley running mechanism, and a cart running mechanism. They achieved lifting and lowering of lifting goods, moving left and right, and moving forward and backward to form a working area.
Adopting European electrical components, like ABB/Siemens/Schneider brands, quality is reliable and easy replacement locally.
Few trouble shooting and highly efficiency
Convenient installation and maintenance
Long service life
Optimized investment
| Lifting Capacity(t) | 5 | 10 | 16 | 20 | 32 |
| Span (m) | 10-40 | ||||
| Hoisting Speed (m/min) | 12.9 | 10.6 | 10.7 | 9.7 | 9.7 |
| Cross Travel Speed (m/min) | 38 | 36.5 | 36.5 | 36.5 | 36.5 |
| Long Travel Speed (m/min) | 72 | 72 | 72 | 72 | 72 |
| Control Model | Cabin operated through master controllers | ||||
| Working Class | ISO M5-M7 | ||||
| Steel Track | P38 | P43 | P43 | QU70 | QU70/80 |
