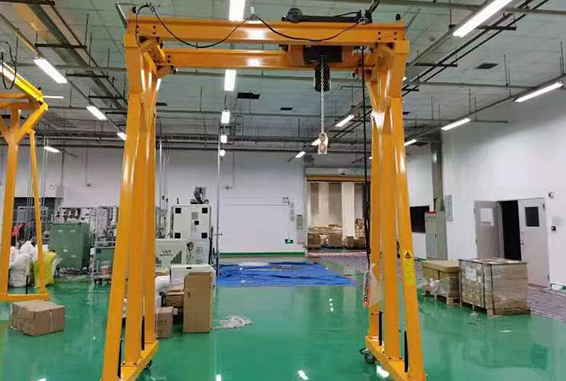

The A-frame crane, also referred to as a Portable Gantry Crane, is a highly versatile and compact crane that finds widespread application in small work areas. Its mobility and ease of transportation make it an ideal choice for a diverse range of lightweight lifting tasks.
The Sinoko A-frame Gantry Cranes are available in three models, each catering to specific needs and preferences.

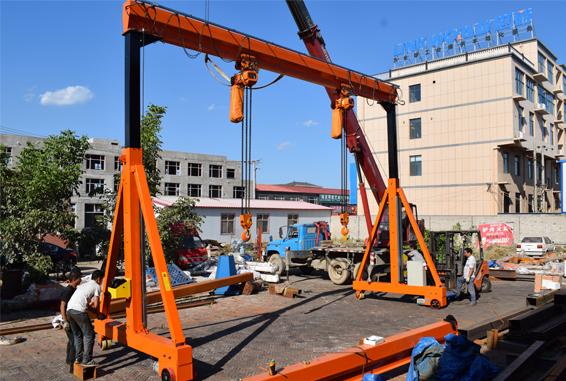

Steel Adjustable Height Model:
Capacities: Up to 20 tons
Height Under Beam: Maximum of 12m
Span Length: Extending up to an impressive 15m
Steel Fixed Height Model:
Capacities: Up to 20 tons
Height Under Beam: Maximum of 10m
Span Length: Set at a fixed 10m

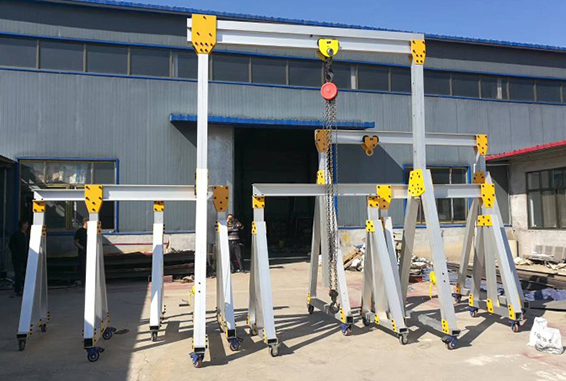

Aluminum with Adjustable Span and Height Model:
Capacities: Up to 5 tons
Height Under Beam: Accommodating heights of up to 8m
Span Length: Versatile, reaching up to 8m
The Sinoko A-frame Gantry Cranes, apart from their outstanding functionality, boast the added advantages of portability, lightweight construction, and affordability. With their robust A-frame designs, these cranes provide an exceptional lifting solution that is both efficient and reliable.
Effortless Mobility:
Our A-frame crane boasts a simple and lightweight design, ensuring easy maneuverability and swift transportation.
Convenient Disassembly:
With the option of disassembly, transporting and storing the crane becomes a breeze, simplifying logistics and saving valuable time.
Flexible Hoisting Choices:
Enjoy a range of hoisting options for the A-frame crane, as you can select either a chain hoist or a wire-rope hoist, providing versatility to meet your specific lifting needs.
| Specification | Range |
| Lifting capacity | 0.5-20t |
| Span length | 2m-16m |
| Lifting height | 2m-12m |
| Lifting speed | 0.9-7.2m/min |
| Trolley speed | 11m/min |
| Crane travelling speed | 6m/min (manually) |
| Working class | A2 |
| Customized service | Available |
If you have any specific requirements or questions, please feel free to reach out to us. Our team is here to assist you and provide any additional details you may need. Contact us today to discuss your lifting and material handling needs and to explore the available customized services. We look forward to hearing from you and helping you find the perfect solution for your requirements.
