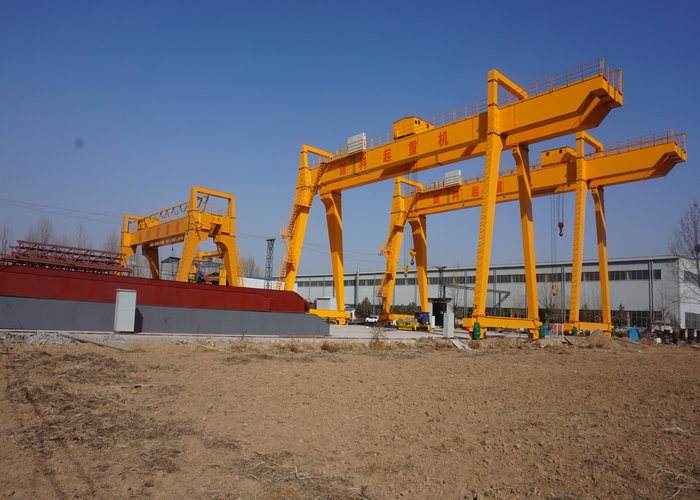

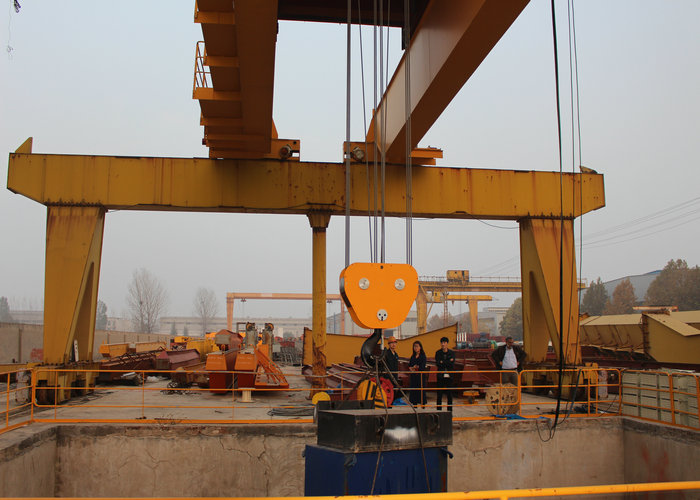

SEW Motor Driven 500 ton Gantry Crane consists of four main parts, namely, the bridge structure, the crane traveling
mechanism, the trolley and the electric equipment. All movements of the crane are controlled in the operating room. This type of double beam gantry crane has two conductive forms, cable and sliding contact line. When buy this crane, any form will be fine, and also tell us the crane's working environment and power source.
Gantry cranes are an excellent alternative to permanent indoor overhead cranes, which minimal investment in any new building by eliminating the need for increased foundational and structural considerations. In addition, they can be disassembled and moved to a new location easily.
1. Good quality with competitive price
2. Reasonable structure, favorable performance
3. Control the load easily and position the load exactly
4. Smooth starting and stopping
5. Superior safety and reliability
6. Low noise, commodious cabin and good view
7. Low dead weight low your cost
8. Easy maintenance for parts
| Span (m) | 28.5 | |
| Lifting Height (m) | Main | 33/10 |
| Aux | 34 | |
| Max.Wheel load | 480 | |
| Installed Power | 350 | |
| Speed（m/min） | Main hoisting | 0.15-1.5 |
| Aux hoisting | 0.6-6 | |
| Crab travelling | 1.36-13.6 | |
| Trolley travelling | 1.6-16 | |
| Main dimensions (mm) | B1 | 16000 |
| B2 | 246000 | |
| L1 | 4500 | |
| L2 | 3500 | |
| Working System | Medium | |
| Power Source | 3-Phase A.C.380V 50Hz | |
