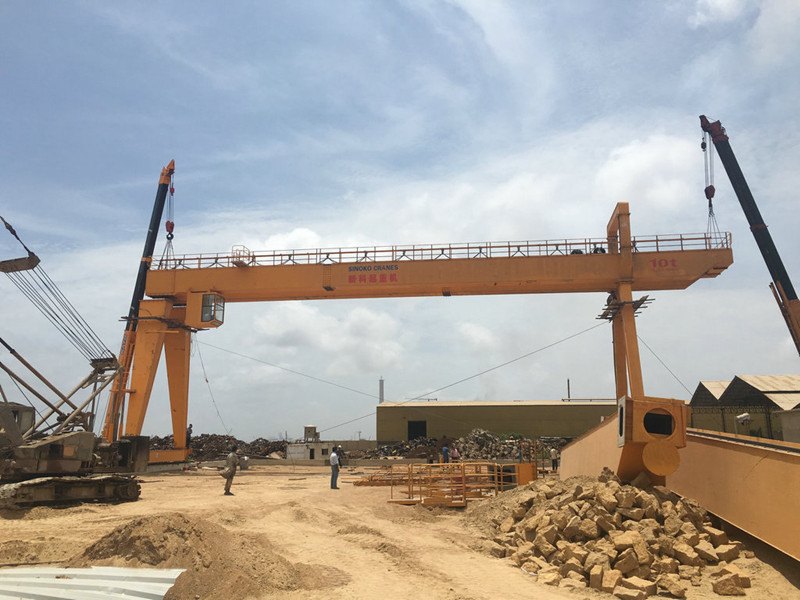

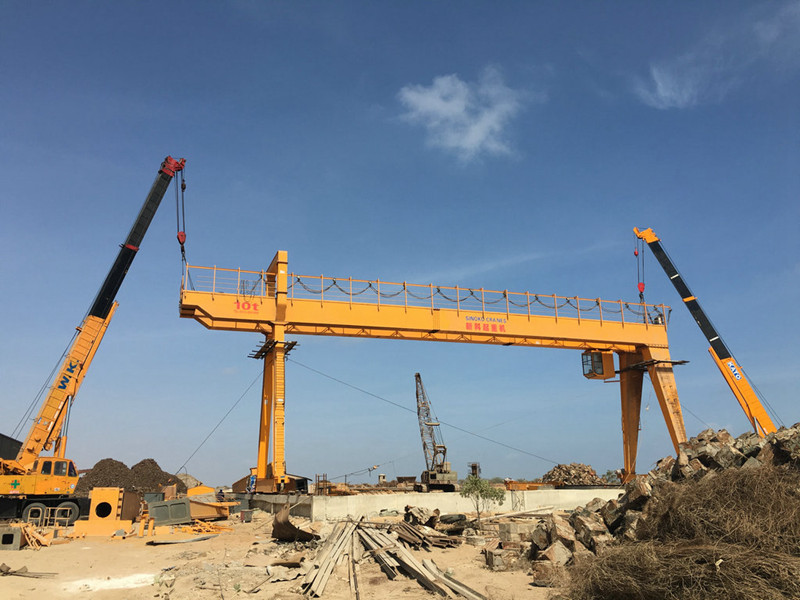

Outdoor Gantry Crane 10 ton

1. European Type Outdoor Traveling Gantry Crane is widely used together with winch or trolley for lifting device.


2. It is a medium and heavy size crane which travels in track.


3. Its proper lifting weight is 5 to 75 tons,and proper span is 18 to 35 meters.


4. Its proper working temperature is -20--+40 centigrade.


5 .This kind of crane is composed of main beam, support legs, crane traveling organ, trolley, electric equipment, strong lifting winch.


6. This product is a regular crane widely used in workshop, storage, port and hydroelectric power station and some other outdoor place, where it has a high frequency or more lifting times.


7. Gantry lift has two controlliing methods namely ground controlling and cabin controlling.


8. Power is supplied by cable or slide wire.


9. It is prohibited for lifting melt metal, flammable, explosive, corrosion, overloading, dust and other dangerous operations.


10. European Type Outdoor Traveling Gantry Crane have A type, U type. U type is designed for container lifting. It could be designed with cantilever or not.


11.The crane with three working class: A5,A6,A7.


10T Outdoor Traveling Gantry Crane Unique features:

a) high reliability, safety, free maintenance rate;

   1) work duty: FEM2M, M5

   2) Protection class: IP55

   3) continuing rate: 60% ( for the high class motor)

   4) Cooling rate: 30% than normal crane

   5) Over temperature protection: 170°C

b) compact design, small size, low dead weight, low headroom

c) Low noise

d) Investment-saved---the workshop's civil work cost, due to crane's light dead weight and low wheel pressure.

e) Power-saved. The total motor power is much lower than normal design.


10T Outdoor Traveling Gantry Crane Specification

Capacity

T

10

Span

m

18

22

26

30

35

Lifting height

m

10

Lifting speed

m/min

0.66/4; 0.8/5; 1.0/6.3; 1.3/8

Trolley travelling speed

m/min

2.0~20; 3.0~30

Crane travelling speed

m/min

3.0~30

Max. Wheel load

KN

102

109

117

127

143

Rail recommended

Model

24kg/m

Total motor power

kw

17

Main dimension (mm)

Span(m)

18

22

26

30

35

Crane base distance

B

5500

5000

Crane width

B0

6320

5820

Trolley rail distance

W

1600

Hook left limitation

S1

500

Hook right limitation

S2

800


10T Outdoor Traveling Gantry Crane Ordering Notice

1. Span ( rail centre to centre )

2. The required lifting height ( from hook to the ground ) and the span distance

3. Crane travelling length

4. What will be lifted by the crane

5. The crane and hoist movement speed (m/min)

6. The rail length and the height.

7. Single speed or double speed for lifting and travelling ?

8. Driver cabine control or pendant control ?

9. How many hours work per day ?

10. Power source : 380v,50Hz,3phase or others?

About Delivery: 30 days after reciving your deposit and after the order confirmed.

About Payment: L/C, T/T, Western Union


10T Outdoor Traveling Gantry Crane After-sale Service

1.One year warranty for whole machines

2.Providing free quick-wear part

3.Low charge for continue maintenance when warranty is expired

4.Exclusive engineer support at any time

5.We can provide free training to end-users
