Ground Travelling Gantry Crane

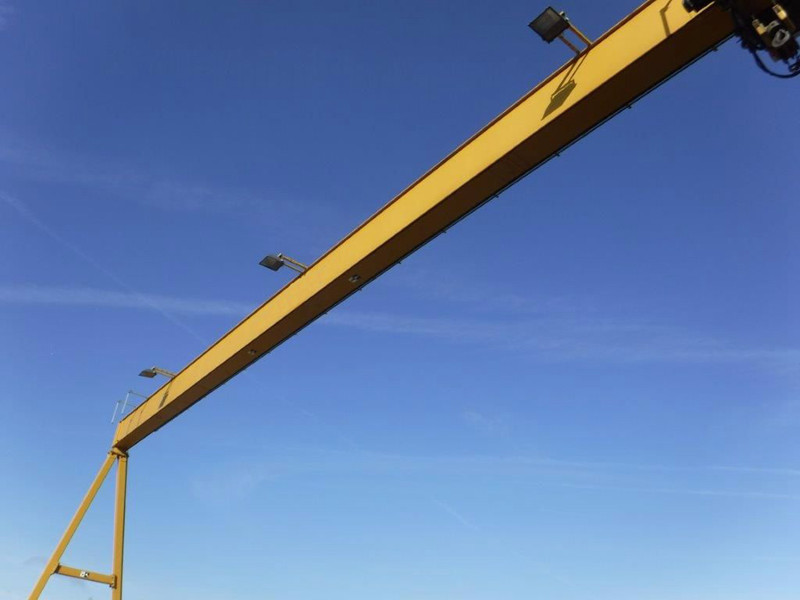

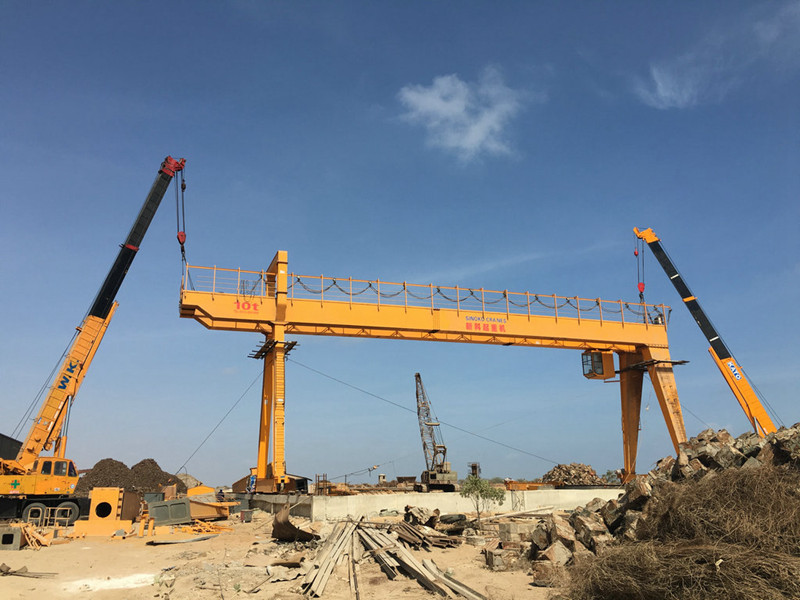

Ground Traveling Gantry Crane Description

A ground travelling gantry crane is a type of crane used for lifting and moving heavy materials. It is typically mounted on rails running along the ground and can travel both in horizontal and vertical directions. It is commonly used in industrial settings such as construction sites, warehouses, and factories.


This kind of Crane is available for general service, such as loading, unloading, lifting and transferring work in outdoor yards of the factory or on railways, also works as container crane matching special hang parts. The capacity is from 10 to 50 tons, span is from 18 to 32 m, the working class is medium & heavy grade. All movements of the crane are controlled in the cabin.

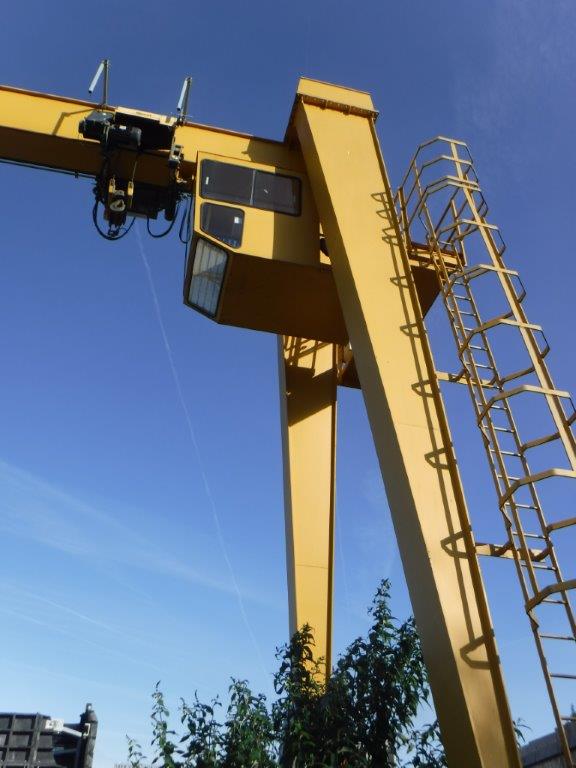

Ground Traveling Gantry Crane Mechanical Feature

1. Doublewelding box girder, DIN/FEM standard deflection

2. Steel tube legs,Material Fe37 or Fe52

3. Whole length CNC cutting for complete web plate, high deflection accuracy

4. High quality automatic welding and NDT inspection

5. Shot-blasting Sa2.5 for complete girder after welding, stress release

6. Epoxy zinc rich high quality painting, 2x2 with 140μm

7. 10.9 class High tension bolts mouting between girder and legs, life time safety connection

8. Vertical gear motor driving, more safety and smaller space


Ground Traveling Gantry Crane Advantage

The advantages of ground travelling gantry cranes include their flexibility and versatility. They can be used to move heavy loads quickly and safely, even in restricted spaces. The crane can also be adjusted to different heights to accommodate any size object, and the adjustable speed and weight capacities ensure that it can lift even the heaviest materials. Additionally, ground travelling gantry cranes are generally easy to use and maintain, making them an ideal choice for many industrial applications.

Ground Traveling Gantry Crane Specification

Capacity

T

10

Span

m

18

22

26

30

35

Lifting height

m

10

Lifting speed

m/min

0.66/4; 0.8/5; 1.0/6.3;  1.3/8

Trolley travelling  speed

m/min

2.0~20; 3.0~30

Crane travelling speed

m/min

3.0~30

Max. Wheel load

KN

102

109

117

127

143

Rail recommended

Model

24kg/m

Total motor power

kw

17

Main dimension (mm)

Span(m)

18

22

26

30

35

Crane base distance

B

5500

5000

Crane width

B0

6320

5820

Trolley rail distance

W

1600

Hook left limitation

S1

500

Hook right limitation

S2

800


Component Used on Ground Traveling Gantry Crane

- Electric motor is well-known one in China, like Jiamusi or other international one likeABB,SEWand so on as customer’s requirement.

- Reducer isSEWof other equivalent ones.

- Inverter is Schneider,ABBor some other international ones.

- Such important electric components as breaker, contactor, and fuse are ofSchneider,Siemensand so on.

- Other ones can be followed according to our customer’s requirement.


All above datas are standard. Please tell us the following parameters before you finish this order:

1.Lifting capacity
2.Span (rail centre to centre)
3.The required lifting height (from hook to the ground) and the span distance
4.Crane travelling length
5.What will belifted by the crane
6.The crane and hoist movement speed(m/min)
7.The rail length and the height.
8.Single speed or double speed for lifting and travelling?
9.Driver cabine controlor pendant control?
10.How many hours work perday?
11.Power source: 380v,50Hz,3phase or others?
