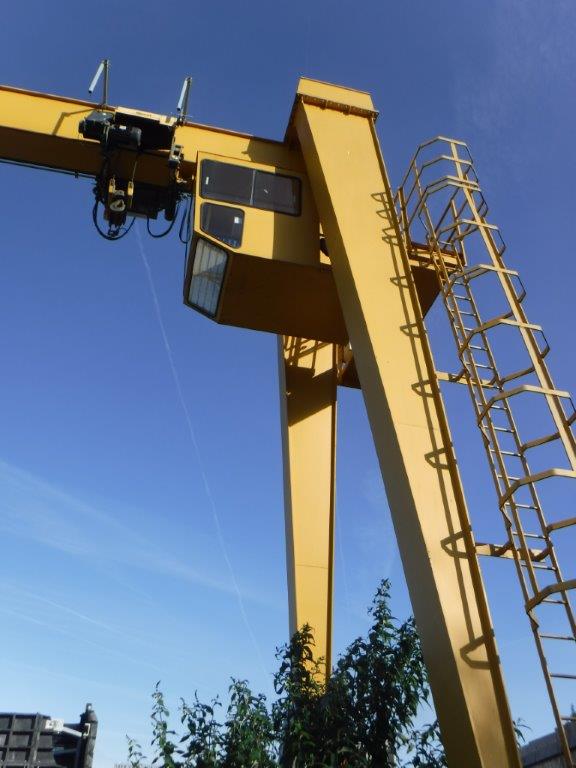

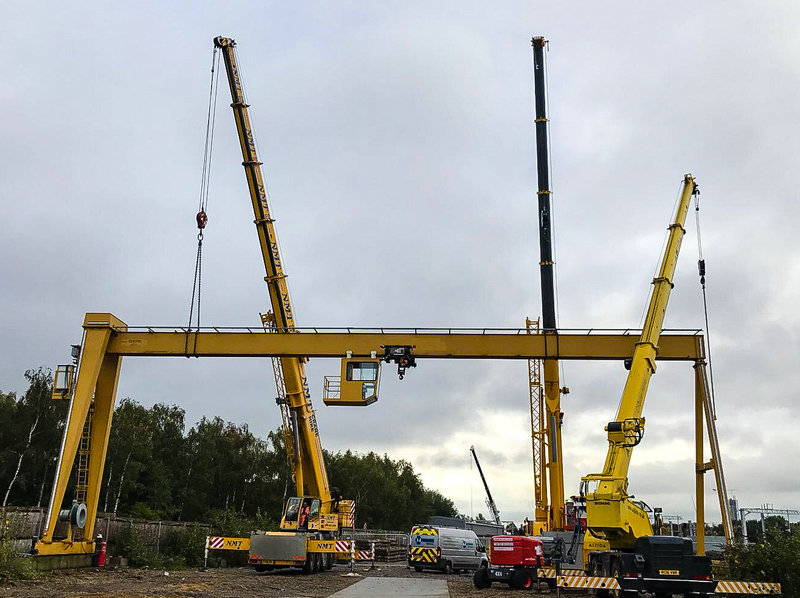

10t Gantry Crane

10T Material Handling Gantry Crane is one kind of gantry cranes which are widely used in ports, freight yards, open storages, container transfer station, etc. to load and unload containers.

This rail mounted gantry crane chooses the U type, with its legs headroom nearly 7 meters. Therefore, it is suitable to carry heavy bulky cargo and container handling.
The working duty is A5-A8. Weight is from 5-500t, span is from 18-35m.

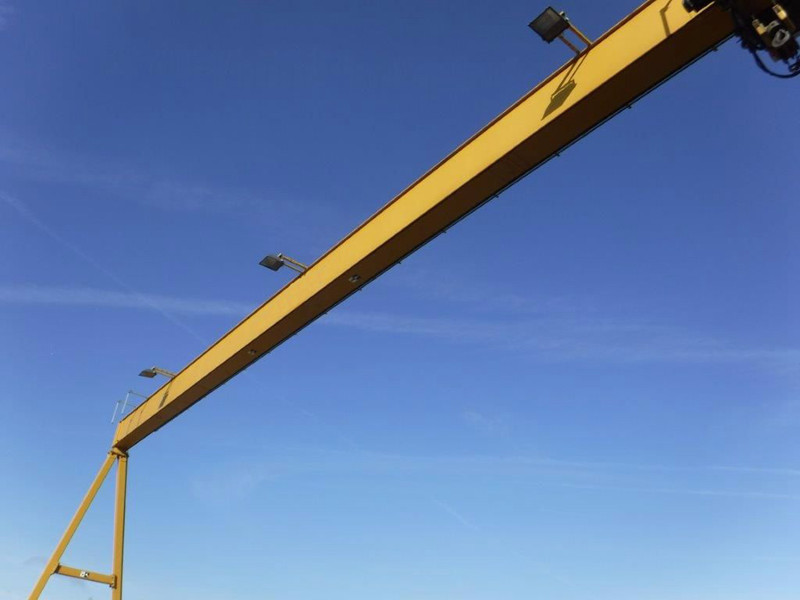

The girder can be designed with cantilever or without cantilever. The end of two main beams are designed to be connected with end beams to meet high level requirements.

10t Rail Mounted Material Handling Gantry Crane Unique features:

a) high reliability, safety, free maintenance rate;

1) work duty: FEM2M, M5

2) Protection class: IP55

3) continuing rate: 60% ( for the high class motor)

4) Cooling rate: 30% than normal crane

5) Over temperature protection: 170°C

b) compact design, small size, low dead weight, low headroom

c) Low noise

d) Investment-saved---the workshop's civil work cost, due to crane's light dead weight and low wheel pressure.

e) Power-saved. The total motor power is much lower than normal design.

Main parameters of 10T Material Handling Gantry Crane
Lifting capacity: 10t
Span: 18-35m
Lifting height: 11.5m
Lifting speed: 8.5m
Trolley travelling speed: 43.8m/min
Crab travelling speed: 37.6m/min, 40m/min
Power source: 3-Phase AC. 380V 50Hz or customized


10T Material Handling Gantry Crane Construct

- Material for general crane construct is Q235B, which should be changed into Q345B when the limit temperature is below -40 centigrade.

- Material for crane wheel is 42 CrMo.

- Portal hook for ladle is forged one.

- The steel rope is flexible one or customer’s required.


10T Material Handling Gantry Crane Components

- Electric motor is well-known one in China, like Jiamusi or other international one like ABB, SEW and so on as customer’s requirement.

- Reducer is SEW of other equivalent ones.

- Inverter is Schneider, ABB or some other international ones.

- Such important electric components as breaker, contactor, and fuse are of Schneider, Siemens and so on.

- Other ones can be followed according to our customer’s requirement.



All above datas are standard. Please tell us the following parameters before you finish this order:
1.Lifting capacity
2. Span ( rail centre to centre )
3. The required lifting height ( from hook to the ground ) and the span distance
4. Crane travelling length
5. What will be lifted by the crane
6. The crane and hoist movement speed (m/min)
7. The rail length and the height.
8. Single speed or double speed for lifting and travelling ?
9. Driver cabine control or pendant control ?
10. How many hours work per day ?
11. Power source : 380v,50Hz,3phase or others?
