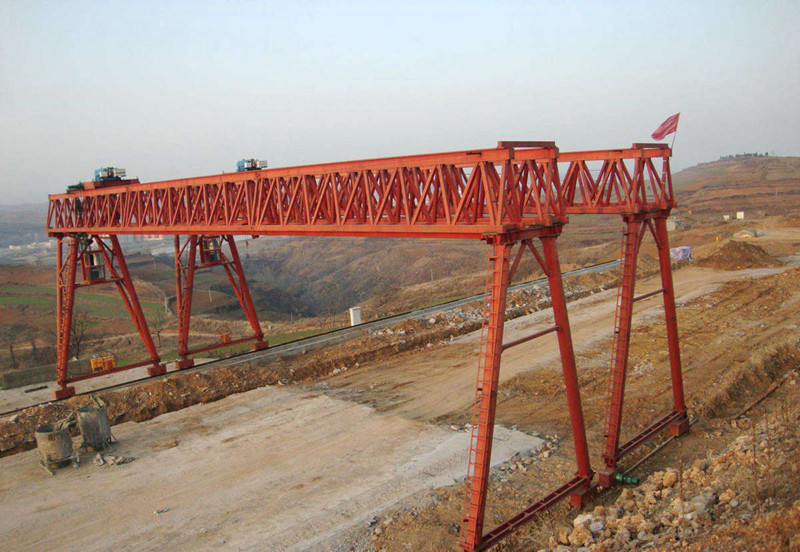

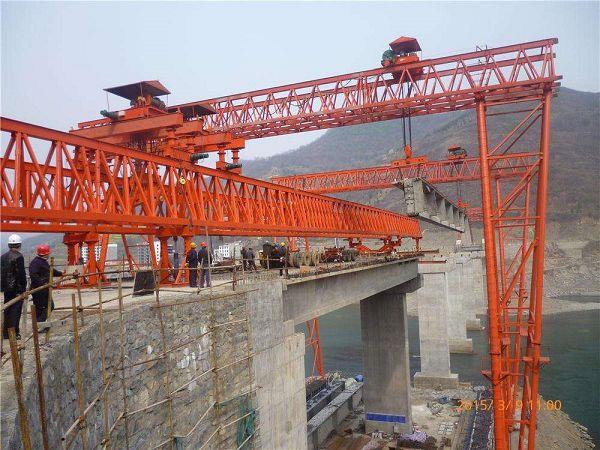

Truss crane mainly refers to truss gantry crane, which can be designed with a single truss gantry girder or double truss gantry girders. The truss girder is typically welded from angle-steel or steel bars and is suitable for light duty and medium duty general material handling.One of the main features of truss crane is its high wind resistance ability, making it ideal for material handling in open areas or places with heavy winds or large sandstorms. This makes truss crane a popular choice in industries such as construction, installation sites, lumber yards, and other similar places where heavy winds can be a concern.
Truss gantry crane is a type of gantry crane that is characterized by its sturdy truss girder design. The crane is mainly composed of truss girder, legs, lower cross beams, and other components. Structure components that are connected using shafts, making it easy to disassemble and transport.
(1) Smart overload protection device for safety operation
(2) Top quality polyurethane buffer
(3) Crane travelling limit switch
(4) Low voltage protection function
(5) Emergency stop system
(6) Current overload protection function
(7) Phase protection function
Sinoko Truss Beam Gantry Crane Advantages:
(1) Compact structure and light weight.
(2) Works reliably and efficiently with low noise.
(3) Equiped with reliable safety devices to guarantee the safe operations.
(4) Customerization is available.
| Capacity | t | 15 | 20 | 30 | 40 | 50 |
| Span Length | m | 5~35 | 18-35 | 18-35 | 18-35 | 18~35 |
| Lifting Height | m | 6~18 | 6~18 | 6~18 | 6~18 | 6~18 |
| Lifting Speed | m/min | 9.6 | 7.2 | 7.6 | 7.6 | 5.9 |
| Trolley Speed | m/min | 20-40 | 20~40 | 20-45 | 20~45 | 20-45 |
| Crane Speed | m/min | 20-40 | 20-40 | 30-50 | 30-50 | 30-50 |
| Work Duty | A3~A5 | A3 A5 | A5 | A5 | A5 | |
| Track Type | P38 P43 | P43 | QU80 | QU80 | QU80 | |
Sinokocranes has a strict and sound quality assurance system on the design and study of truss gantry cranes. The design and manufacture, process flow, quality inspection and after-sales service all are under the control of the quality assurance system. This type truss gantry crane has advantages in energy saving, environmental protection, safety and reliability, and the adoption of new technology and new materials.
