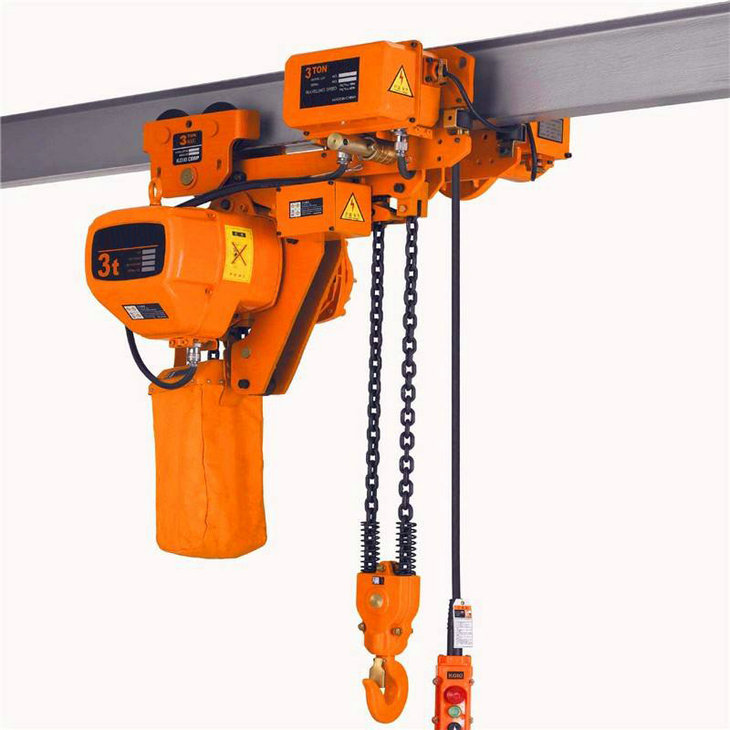

The electric chain hoist is operated by the button on the ground, and can also be operated by wireless remote control. The electric hoist has a high working level, good safety performance, high reliability, low failure rate, the chain runs in the sprocket, is not easy to fall off or jump, and is more stable to use.
Application of Electric Chain Hoist

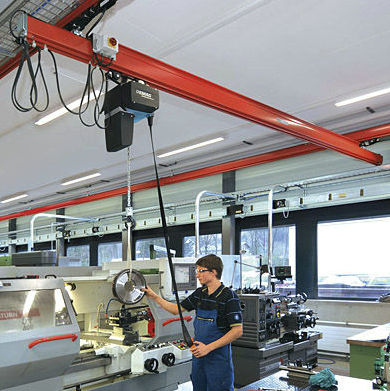

Electric chain hoist is widely used in overhead cranes, workstation cranes or jib cranes.
① | Friction Clutch | Originally developed overload protection device, slipping the motor force by separating gears of transmission |
② | Load Chain | Grade 80 heavy strength alloy steel load chain, made in Japan |
③ | Pendant Control | Ergonomic design for user friendly. Solid and durable. With Emergency Stop button as standard for safety. |
④ | Air cooled motor fan | Aluminum die-cast motor frame with air cooled fan, can reduces the motor temperature during frequent operation |
⑤ | Unique Fins of MotorFrame | High efficiency on motor cooling |
⑥ | New Limit Switch & Senser | New design limit switch and senser can improve the headroom of hoist and tolerate larger angle of lifting. |
⑦ | Hook & Hook Safety Latch | High strength forged alloy steel hook With safety latch, allows 360"rotation in smooth and easy. |
Lifting Height（m） | Lifting speed（m/min） | Lifting motor | Operating motor | Runway beam(mm) | |||
Power（Kw） | Rotating speed（r/min） | Power（Kw） | Traveling speed | ||||
1 ton | 3 | 6.6 | 1.5 | 1440 | 0.4 | 11/21 | 58-153 |
1.5 ton | 3 | 8.8 | 3 | 1440 | 0.4 | 11/21 | 82-178 |
2 ton | 3 | 6.6 | 3 | 1440 | 0.4 | 11/21 | 82-178 |
2 ton | 3 | 3.3 | 1.5 | 1440 | 0.4 | 11/21 | 82-178 |
2.5 ton | 3 | 5.4 | 3 | 1440 | 0.75 | 11/21 | 100-178 |
3 ton | 3 | 5.4 | 3 | 1440 | 0.75 | 11/21 | 100-178 |
4 ton | 3 | 4.4 | 3 | 1440 | 0.75 | 11/21 | 100-178 |
5 ton | 3 | 2.7 | 3 | 1440 | 0.75 | 11/21 | 100-178 |
7.5 ton | 3 | 1.8 | 3 | 1440 | 0.75 | 11/21 | 100-178 |
