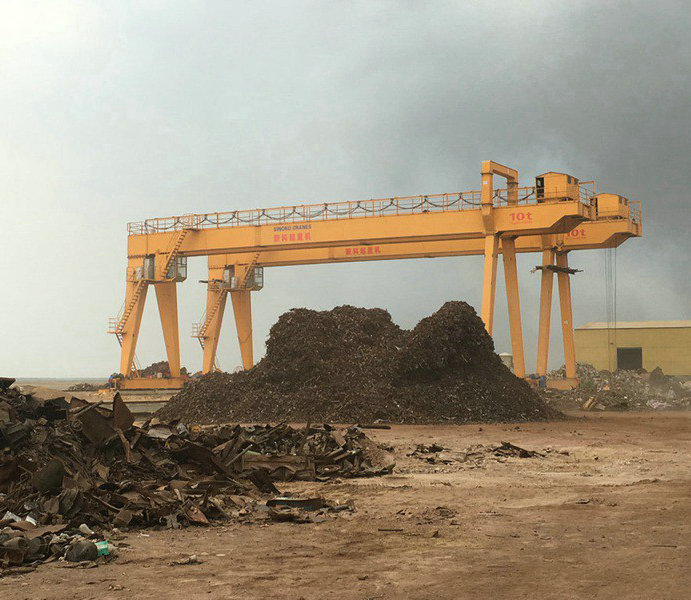

Gantry crane is mainly used for loading and unloading of freight yard, bulk cargo and bulk cargo outside. 10 Ton gantry cranes has high utilization ratio of site, wide operation range, wide adaptability and strong versatility, especifically for handling steel scraps in outdoor yards.
Scrap Handling Gantry Cranes Operation Video
Heavy-duty design and high efficiency
Large span with single or double external cantilever beams
Open winch trolley with rain-proof cover
Slip ring motor, high starting torque with low starting current
Double EHT brakes for each hoisting mechanism

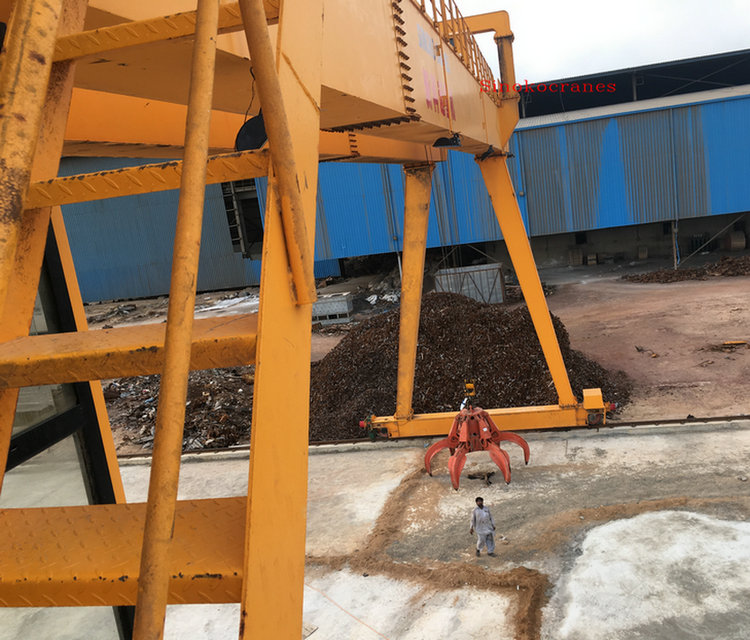

What kind of scraps to lifting?
Heavy melting steel –such as plates, beams, columns, channels; may also include scrap machinery or implements or certain metal stampings
Old car bodies – Vehicles with or without interiors and their original wheels
Cast iron parts – Cast iron bathtubs, machinery, pipe and engine blocks
Pressing steel parts – Domestic scrap metal up to approx. 6 mm thick.
Manganese steel – Non magnetic, hardened steel used in the mining industry, cement mixers, rock crushers, and other high impact and abrasive environments.
Rails – Rail or tram track
 |
 |
| Lifting Capacity(t) | 5 | 10 | 16 | 20 | 32 |
| Span (m) | 10-40 | ||||
| Hoisting Speed (m/min) | 12.9 | 10.6 | 10.7 | 9.7 | 9.7 |
| Cross Travel Speed (m/min) | 38 | 36.5 | 36.5 | 36.5 | 36.5 |
| Long Travel Speed (m/min) | 72 | 72 | 72 | 72 | 72 |
| Control Model | Cabin operated through master controllers | ||||
| Working Class | ISO M5-M7 | ||||
| Steel Track | P38 | P43 | P43 | QU70 | QU70/80 |
How to get a professional proposal on gantry cranes?
(1)What is the Max. lifting weight each time?
(2)What is the Max. lifting height required?
(3)How frequent the crane will be used per day?
(4)What is the working environments?
