Gantry Crane for Concrete

concrete gantry crane

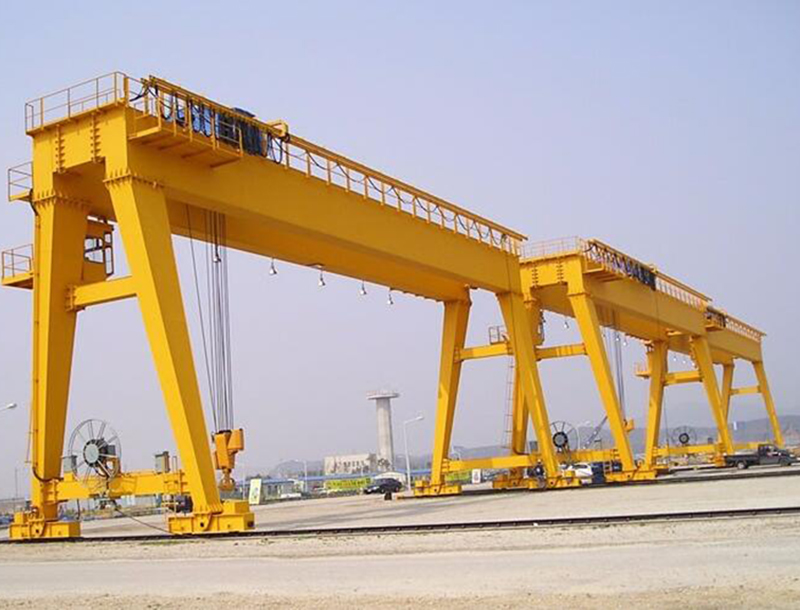

The cement plant double girder gantry crane is ideal for outdoor applications where lifting facilities are provided without the cost of a building or any supporting steelwork. The frame adopts box-type welding mechanism, and the crane travelling mechanism adopts separate drive.


1. Heavy-duty construction: Gantry cranes for concrete are designed to be durable and robust, with heavy-duty materials used in their construction. This allows them to handle the heavy loads and harsh conditions of a construction site.


2. High lifting capacity: Gantry cranes for concrete are capable of lifting and moving large volumes of concrete, often with a lifting capacity of several tons.


3. Flexible movement: The trolley and hoist can move along the bridge in both horizontal and vertical directions, allowing the crane to reach and lift concrete components from different angles and positions.


4. Precise positioning: Gantry cranes for concrete are equipped with controls that allow for precise positioning of the load. This is important when placing concrete components in specific locations within a construction project.


5. Safety features: Safety features are essential in a gantry crane for concrete, including limit switches, overload protection, and emergency stop buttons. These features ensure safe operation and help prevent accidents and injuries.


6. Adaptability: Gantry cranes for concrete can be designed to be adaptable to different types of construction projects. They can be customized to meet specific requirements, such as different lifting capacities or bridge lengths.

Parts of Double Girder Gantry Crane.jpg

1. Box-shaped double beam welding structure: This type of structure provides strength and stability to the crane while also increasing the working space. It also makes the crane easier to transport, install, and maintain.


2. Opposite rail cable conductive device: This type of device allows the crane to move along the rails while maintaining a continuous electrical connection. This improves the safety and reliability of the crane's electrical system.


3. Standardization, serialization, and generalization of parts and components: By using standardized and serialized parts and components, the crane can be manufactured more efficiently, and maintenance and repairs can be carried out more easily.


4. Cable coil type or sliding line type: These are two options for the electrical system of the crane, allowing users to choose the one that best suits their needs.


5. Driver's cab with a wide field of vision and linkage console: This provides the operator with a clear view of the work area and allows for precise control of the crane's movements.


6. Comfort and convenience features: The crane can be equipped with a range of features, such as a fan, hot air device, air cooler, air conditioner, and walkie-talkie, to improve the operator's comfort and convenience.


Gantry crane drawing.jpg

Double Girder Gantry Crane
CapacityT10T20T32T50T80T100T
Spanm101520253010152025301015202530101520253010152025301015202530
Cantileverm3 ~ 73 ~ 73 ~ 73 ~ 73 ~ 73 ~ 7
Height of Liftingm6 ~ 156 ~ 306 ~ 309 ~ 309 ~ 309 ~ 30
Lifting Speedm/min5/0.84/0.663.3/0.80~40~40~4
Trolley Speed5~205~205~205~205~205~20
Long Travel Speed0-20, 0-32, 0-400-20, 0-32, 0-400-20, 0-32, 0-400-20, 0-32, 0-400-20, 0-32, 0-400-20, 0-32, 0-40


Installation of A type cement plant double girder gantry crane

Gantry crane installation.jpg

Sinoko gantry crane for concrete can lift and move large volumes of concrete quickly and efficiently, making it an essential piece of equipment in many construction projects. These cranes are designed to be durable and robust, capable of withstanding the heavy loads and harsh conditions of a construction site.
