Overview:

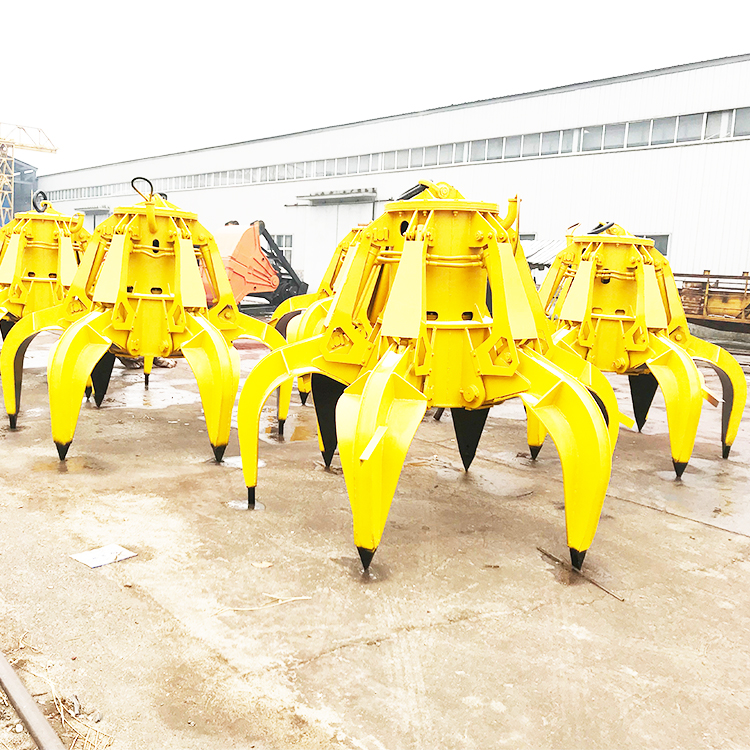

Scrap metal grab is an hydraulic orange peel grab for various scrap metal materials. By changing the structure of the upper link, the scrap grab can be installed on various cranes, grab loaders, and excavator dynamic host device; It can realize loading and unloading in different operating scenarios such as yard, wharf, and steel mill.

Construction of Scrap Metal Grab

1. Grab frame: Q345 steel

2. Grab peel: The peel is made of Q345 and the edge is made of high wear-resistance steel for stable performance and long service life

3. Grab mechanism: Motor, hydraulic pump, valve block, pipes and hydraulic oil tank

4. Protection grade: Up to IP 65, different according to working requirements and environment

5. Coating thickness: up to 180 μm

Features

1.Handling steel scrap , irregular block.

2.Powered by a electric motor of high performance

3.Compact structure with built-in hydraulic system

Specification

Type	Electro Hydraulic Grab
Capacity	1 CBM TO 16 CBM
Grab Structure	Q345B
Pins & Axles	40 Cr 1 Mo 28, IS; 1570, Hardened, ground and tempered and Hard Chromium Plated
Working Pressure	Opening pressure 140 bar Closing pressure 220 bar
Grab Working Cycle	Opening 10 to 15 seconds
Closing	13 seconds

Get a Free Quote

FAQs

Q1: What scrap types is this grab designed to handle?

A: Engineered for harsh environments handling: Shredded auto scrap Heavy demolition steel Fragmented foundry waste Irregular boulders/block materials Features Q345B steel construction with HRC60 wear edges for abrasive materials.

Q2: Can I mount this on existing equipment?

A: Yes. Universal adaptation to: Overhead cranes (10-75T capacity) Excavator dynamic hosts Grab loaders Via customizable upper link structures.

Q3: What makes your hydraulic system suitable for scrap yards?

A: Heavy-duty performance: 220 bar closing pressure (industry-leading grip) 15-second cycle times IP65-rated components resisting dust/debris Hard-chromium plated 40Cr1Mo28 pins preventing seizure

Q4: How does the wear protection extend service life?

A: Triple-layer defense: 180μm epoxy coating (corrosion resistance) Replaceable wear blades (high-carbon steel edges) Self-lubricating bushings in pivot points Ensures 10,000+ operating hours in steel mill conditions.

Q5: What capacities are available?

A: 1-16m³ models covering: Compact scrap piles (1-3m³) Bulk shredder feeds (5-8m³) Port-side operations (12-16m³) All with 140-220 bar hydraulic pressure.

Q6: Can it handle compacted/crushed vehicles?

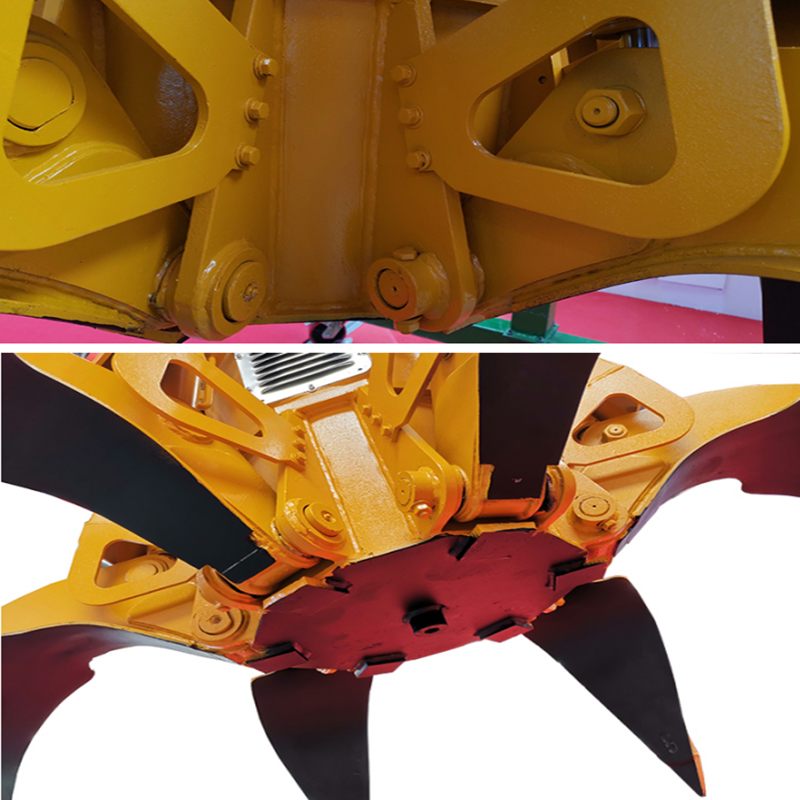

A: Yes. Features: Interlocking jaw design preventing material spillage Penetration tines for compressed scrap Reinforced cylinder mounts for high-impact closing
