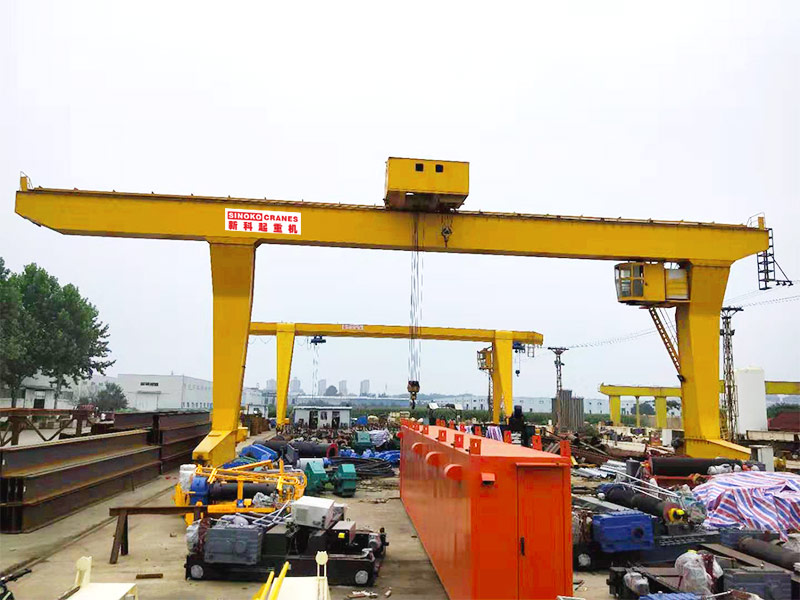

Outdoor rail mounted cantilever travelling gantry crane is an ideal lifting equipment which has cantilevers in order to increase the crane working area.

1. Capacity: Up to 200ton.

2. Crane beam: single or double.

3. Span: Up to 35m.

4. Lifting height: Up to 40m

5. Crane speed: Single type, dual speed type or variable drive control

6. Max. Cantilever length: 1/3*crane span for each side.

7. Trolley mechanism: Hoist or winch type.

8. Working duty: A3-A8

9. The customized is available according to crane working conditions.

Share With:


Rail Cantilever Gantry Crane

Outdoor rail mounted cantilever travelling gantry crane is an ideal lifting equipment which has cantilevers in order to increase the crane working area.

1. Capacity: Up to 200ton.

2. Crane beam: single or double.

3. Span: Up to 35m.

4. Lifting height: Up to 40m

5. Crane speed: Single type, dual speed type or variable drive control

6. Max. Cantilever length: 1/3*crane span for each side.

7. Trolley mechanism: Hoist or winch type.

8. Working duty: A3-A8

9. The customized is available according to crane working conditions.

Outdoor RMG Type Rail Mounted Cantilever Travelling Gantry Crane is widely used at outdoors to load and unload materials, such as steel plant, cement plant, precast factory, marble factory, dock, shipyard, etc.


Container lifting ganty crane



Delivery yard gantry crane

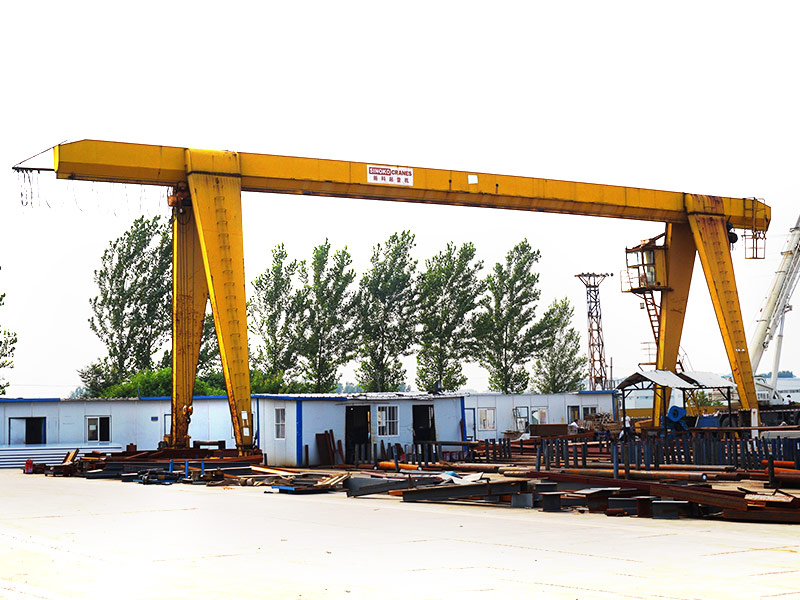

Single girder gantry crane

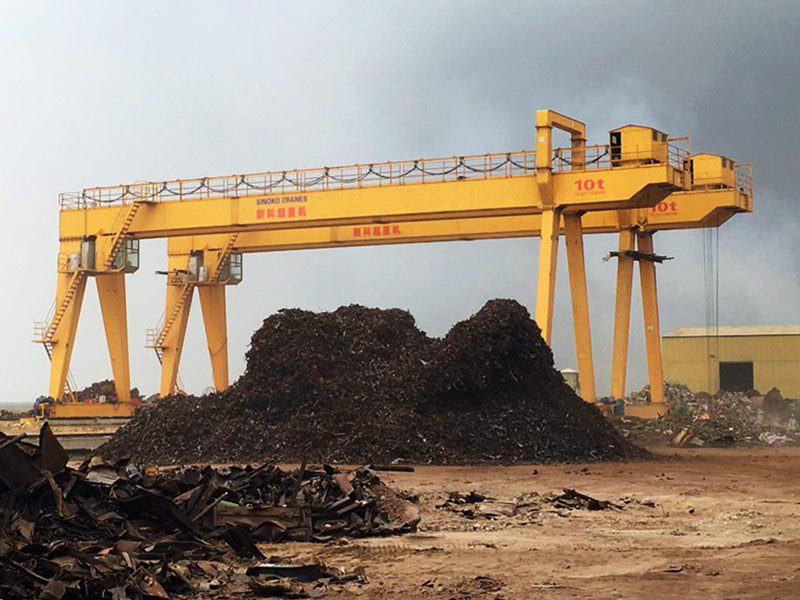

Steel crap yard gantry crane




1. To increase crane working area and handle the material more conveniently.

2. To improve the factory site utilization

3. To enhance the crane working efficiency

4. To save the cost of foundation construction

5. To be designed flexible according to the crane working conditions.


Safe features

✔ Crane traveling limit switch

✔ Weight overload protection device

✔ Lifting height limit device

✔ Voltage lower protection function

✔ Phase sequence protection function

✔ Emergency stop function

✔ Rain cover for outside hoist, driving units, electrical cubicle

✔ Warning indicator: flashing lights and warning sound

✔ Wireless infra-detector for anti-collusion
