Mh Single Beam Gantry Crane

MH Single Girder Gantry Crane with Wire Rope Hoist

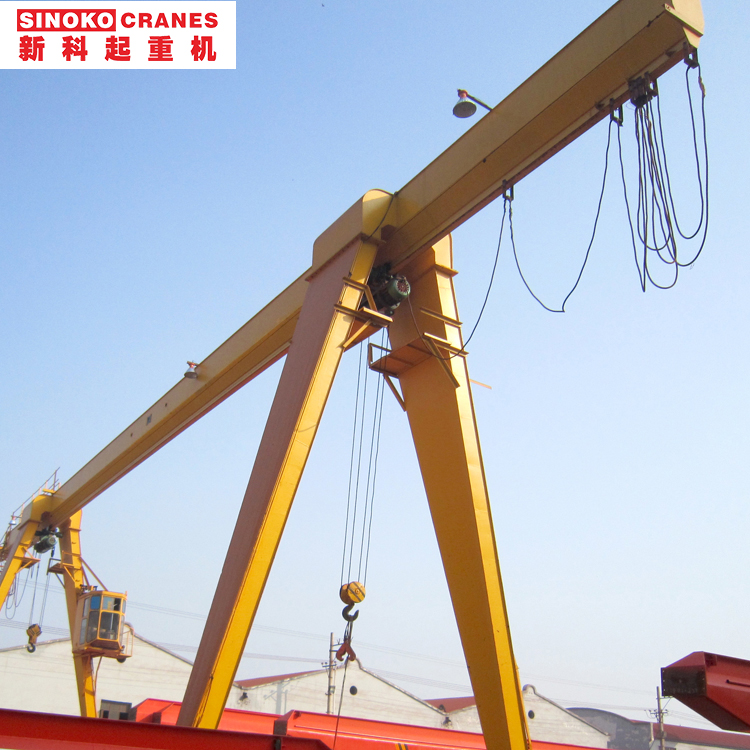

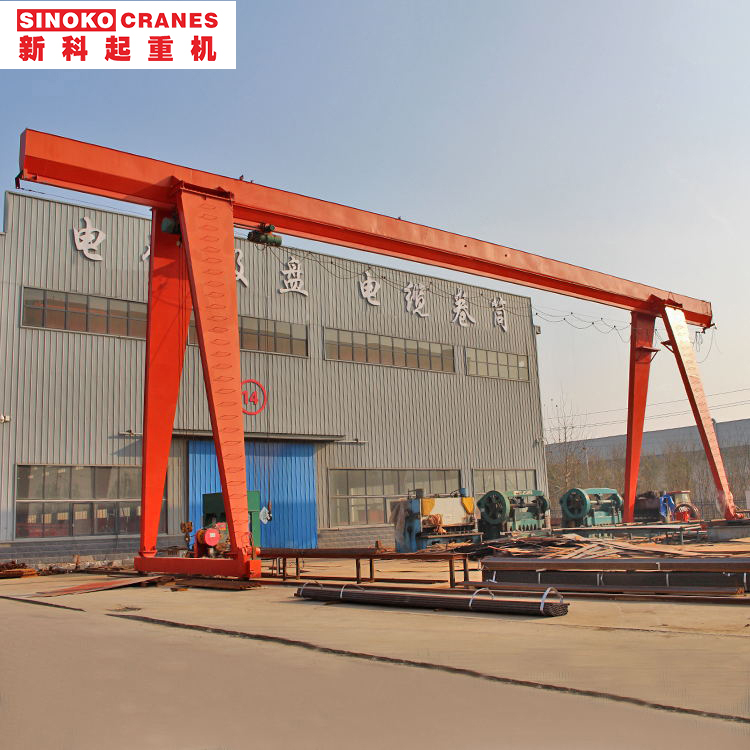

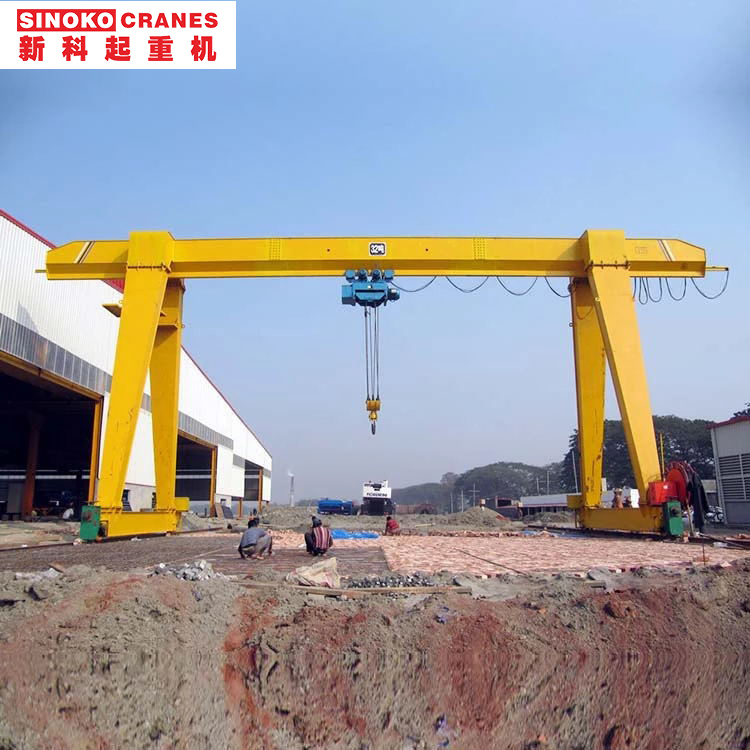

MH single girder gantry crane with wire rope hoist is small-medium type lifting equipment which runs at rail, it is mainly composed of gantry frame (girder, leg, ground cross beam, etc.), hoisting mechanism and electric control part. The electric hoist is hoisting mechanism; it runsalong the lower flange of the I-steel of the girder.

Light dead weight, simple structure and easy installation and maintenance, so it is applicable to outdoor operational sites of small-medium lifting load for general handing such as factories and mine, fright yards and warehouse.

1. Simple operation. The site utilization rate is high, the operation range is wide, the adaptability is wide, and the versatility is good.

2. Reasonable structure. The structure is compact and reasonable, the performance is excellent, and the operation is stable.

3. High efficiency. Simple installation, easy operation and maintenance, and heavy lifting capacity.

4. Can be processed and customized. It can be processed and customized according to requirements, with various specifications and models.


MH Single Girder Gantry Crane with Wire Rope Hoist drawing

Loading Capacity

0.5~30t

Lifting Height

3~30m or customized

Lifting speed

Single   speed: 3~8 m/min or customized
Variable speed: 1/10 m/min or customized

Span

3~35m

Lifting mechanism

Wire rope hoist or electric chain hoist

Work duty

M3~M5

Power supply

AC-3Phase-220//230380/400/415/440V-50/60Hz

Control method

Ground handle control(Push button),wireless remote control,cabinet control

Application area

Factory,workshop,warehouse,power station,logistic,etc.

Color

Red,yellow or customized

Working temperature

-20~+40℃

Protection class

IP54; IP55; IP65




    Get In Touch

    Our teams are on hand to provide you with the right lifting solutions.

    FEW TIPS

    1.Load capacity: ton?

    2.Span of the crane: m?

    3.Max. lifting height of the crane: m?

    4.What materials will be handled: ?

    5.How many hours will the crane work per day: ?

    6.Traveling distance of the crane: m?
