Junkyard Crane Magnet

Junkyard crane magnet


1. Junkyard crane magnet suitable for casting, steel ball, iron, machine chip, for various kinds of steel scraps, return scraps, cropping, baling scraps and etc in factories and for iron powder in coal preparation plant.During slag disposal process, Junkyard crane magnet can remove large size of iron at initial step, outlet box has two chambers, an extra-thick fender and anti-twist setting, there are the excitation options; rated voltage DC220V; strong excitation over excitation.


2.Normal Temperature Billet Lifting Electromagnet whose shape is rectangle is especially suitable for lifting and transporting billet, steel ingot, bloom, etc.. Different magnetic circuits are designed for different steels.



1. Adopt fully enclosed structure, good moisture resistance.
2. Optimized design by computer, reasonable structure, large weight absorption ratio, low energy consumption.
3. The excitation coil is treated with a special process to improve the electrical and mechanical properties of the coil.
4. Adopt different structures and parameters for different sucked matter conditions, which can widely meet user needs.
5. The high temperature type electromagnet adopts a unique thermal insulation method, and the temperature of its attracted substance is increased from 600 ℃ to 700 ℃ in the past, which expands the applicable range of the electromagnet.
6. Simple installation, operation and maintenance.

china scrap yard crane lifting magnets price

Model
Diameter
(mm)
Current
(A)
Power (kW)
Lifting capacity (cold/hot state) (kgs)
Steel ball
Steel ingot
Steel scrap
MW5-70L/1
700
15
3.3
2500
380/200
120/100
MW5-80L/1
800
18
3.96
3000
480/250
150/130
MW5-90L/1
900
26.6
5.85
4500
600/400
250/200
MW5-110L/1
1100
35
7.7
6500
1000/800
450/400
MW5-120L/1
1200
45.5
10
7500
1300/1000
600/500
MW5-130L/1
1300
54
11.9
8500
1400/1100
700/600
MW5-150L/1
1500
71.2
15.6
11000
1900/1500
1100/900
MW5-165L/1
1650
75
16.5
12500
2300/1800
1300/1100
MW5-180L/1
1800
102.4
22.5
14500
2750/2100
1600/1350
MW5-210L/1
2100
129
28.4
21000
3500/2800
2200/1850
MW5-240L/1
2400
154
33.9
26000
4800/3800
2850/2250

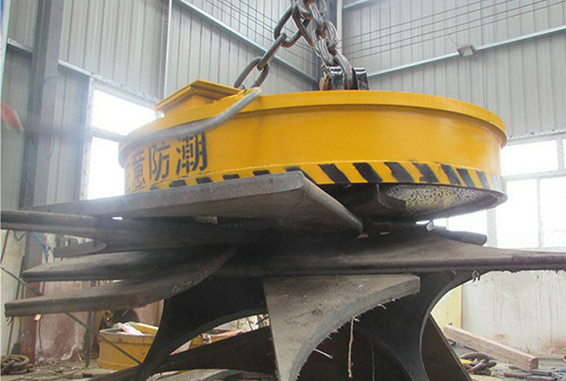

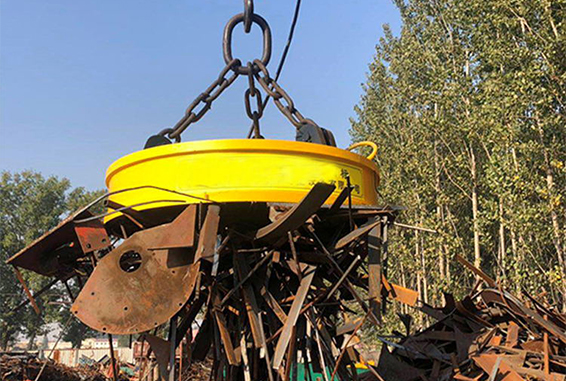

These scrap magnets have a sturdy housing, heavy manganese steel base plate, welded waterproof construction and tough alloy steel chain for maximum durability. Specifically designed to meet the needs of scrap handling operations.


The industrial scrap lifting magnet experts at sinokocranes are happy to help you find the right industrial scrap handling magnet for your scrap yard or any industrial facility that requires a reliable scrap iron solution. For more information or to order industrial scrap magnets today, contact us online.
