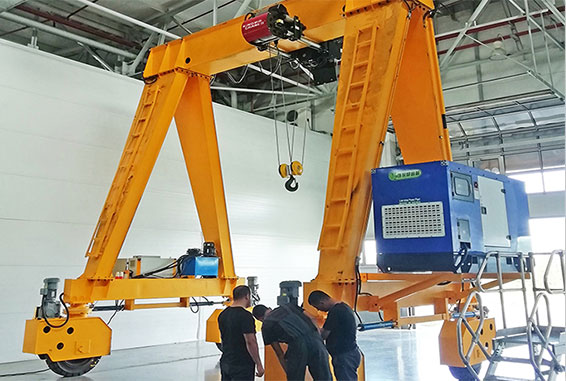

Rubber Tired Gantry Crane Manufacturers is an ideal solution to lift or handle materials without building railway, it is widely used in various applications, such as port yard, outdoor storage and indoor warehouses.
Sinokocranes Rubber Tired Gantry Crane has a a steel structure with high rigidity and stability that allows to handle the load in a very precise way and without shaking in their movement, even at high handling speeds.
The gantry cranes are available in a range of capacities from 5 to 40 tons or more, making them suitable for a variety of industries and applications. The engineering team works closely with customers to ensure that the crane meets their specific needs and exceeds their expectations.
| No. | Mechanism Name | Function and Advantage |
| 1 | Hoisting | Heavy duty motor, 60% ED rating Super drum, longer rope lifetime DIN 34CrMo4 hook, Class T |
| 2 | Cross Travelling | 3 in 1 gear motor with hardened gear, H Insulation high protection level Stepless speed control |
| 3 | Long Travelling | Non-coupling transmission Modular design Smart size |
| 4 | Crane Turning | PLC control system Rubber tyred wheel Free turning |
| 5 | Electric Panel | Heavy duty aviation plug and socket, Sealed and firmly inserted, Fast installation on crane users site with pre-connection in Sinokocranes factory. |
| Description | Technical Parameter |
| SWL | 5T-40T |
| Span | 5-28m |
| Lifting Height | 3m-18m |
| Work duty | A3-A5 |
| Control method: | Remote or pendant control |
| Power Supply | Diesel generator systems or other power supply equipment |
| Note: The customized is available according to required working conditions. | |
Application of rubber tired gantry crane
