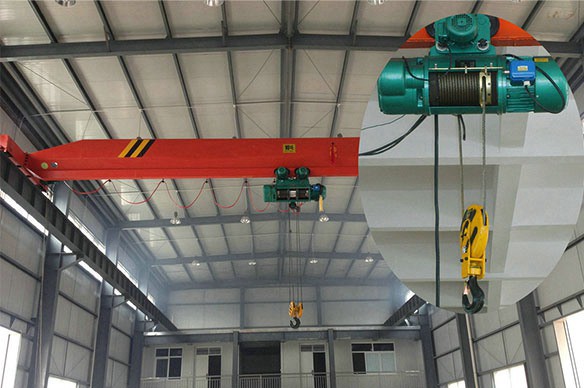

Electric Hoist 3 ton

CD type wire rope electric hoists are lifting equipment that use a wire rope to lift and lower heavy loads. They are typically used in industrial and commercial applications, such as in warehouses, factories, and construction sites. They are designed to be durable and reliable, and can be used to lift and lower a variety of different types of loads.

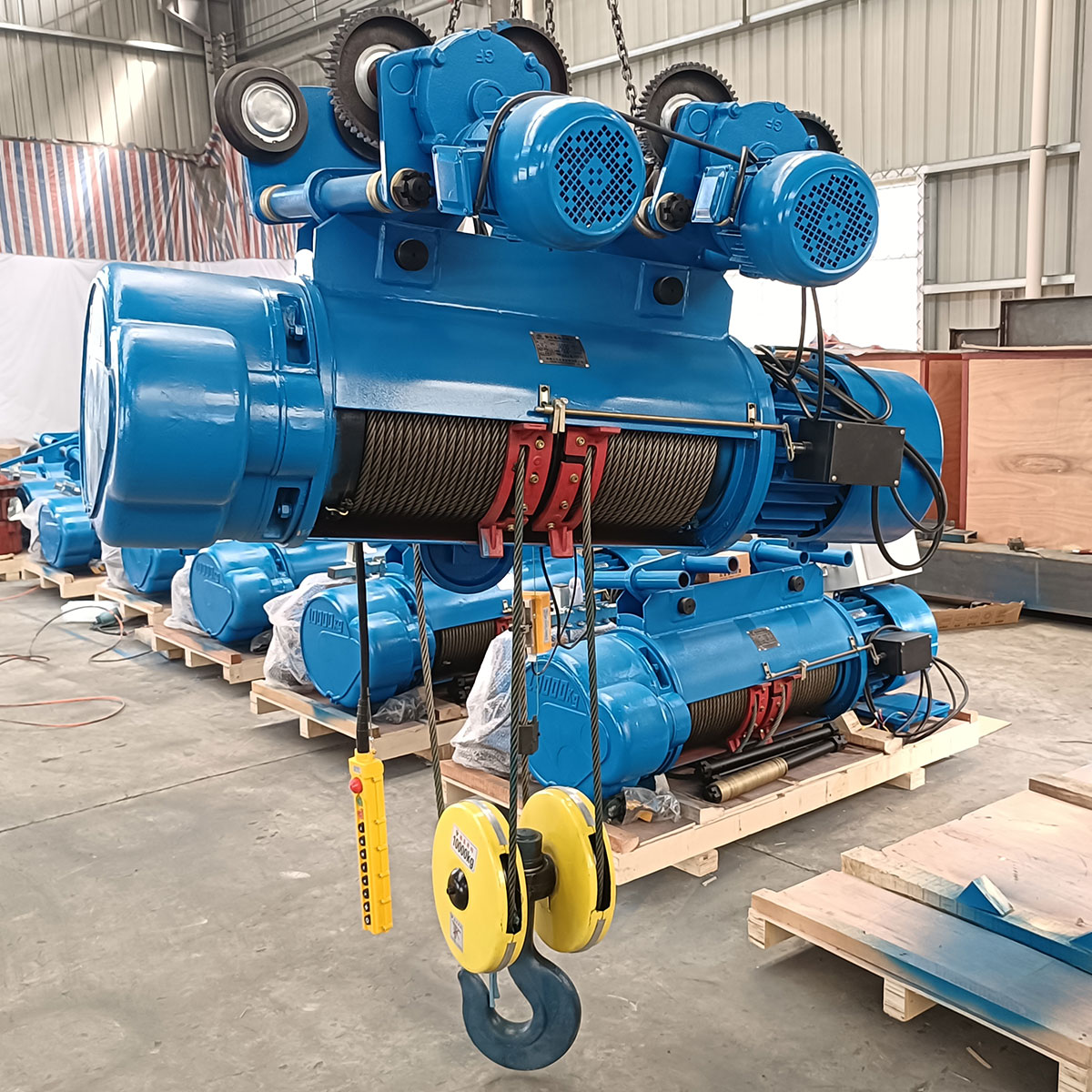

wire rope electric hoists

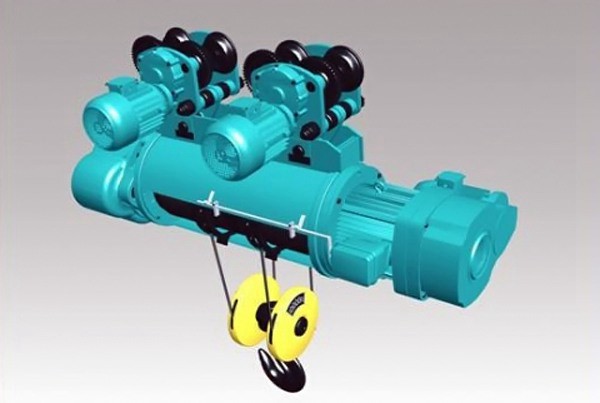

Component of 3 ton Wire Rope Electric Hoists Key Parts


1. Lifting Motor


Asynchronous Conical rotor motor with brake inside
Large torque, effective braking, compact structure
Stable operation, small size, light weight
Safe usage and easy maintenance

B or F class insulation, IP44, IP54 protection

2. Travelling Motor


Asynchronous Conical rotor motor with brake inside
Stable starting, effective braking
Assorted with reducer
B or F class insulation, fully covered
IP44, IP54 protection
IC0141 self-cooling

3. Lifting Reducer

Three-level dead axle helical gear rotating body, long service life

Gear and the axle made by alloy steel after heat treatment, high intensity
Box and cover made from superior cast iron, fully covered
Great speed ratio, high accuracy
Compact structure, silent operation, high efficiency
Machinery oils
Easy to assemble and disassemble

4. Rope Drum

Welding rope drum, light dead weight

Coil casing made from superior cast iron, high intensity
Rope guide avoids intertwining of wire rope, ensures normal operation
Extend the rope and drum's lifetime
No disturbance between rope socket
Easily interchangeable, high quality

5.Steel Wire Rope

GB/T 20118-2006(6*37+1) hoisting wire rope

Anti-tensile, good flexibility
Good resistance to impact, long lifetime

6. Hook

20 high quality carbon steel

High security, triple static load
Spring-loaded sturdy safety catch, ensuring slings not release safe and reliable

7. Fire stopper

Adjustable mechanical memory structure, high sensitivity

Weight limiting stopper
preventing hook clashing the top
Safe and durable, easy to install and debug
Sensitive reaction, small and exquisite

8. Overload limiter

Preset related data according working condition

Show accurate weight value clearly
Modular, low power design, jam proof
Ensure the safe operation of electric hoist
Long service life of appliance components

9. Electrical Part

Reasonable layout of control cabinet, easy to repair

Protection class IP55
Optional main power source
Safe trolley conductor high conductivity, small pressure drop
Light dead weight, easy to install
Collector ensure continuing power supply

10. Control Mode

Pendant and remote control

Easy and safe control
Smooth operation
Waterproof Anti Fall



Compact structure, light weight, safe and reliable

Wide used and interchangeable of components
Lifting capacity strong, maintenance easy
Operation easy, lifting stable
ModelCD1 / MD1
CapacityTons3
Hoisting speedM/MIN8(0.8/8)
Travel speedM/MIN20/30
WireropeDia. (mm)15
Spec.6x37+FC
Hoisting motorType
ZD141-4
ZDS1 0.8/7.5
Power(kW)7.5(0.8/7.5)
Rotation speed(r/min)1400
Current(A)18(2.4/18)
Travel motorType
ZDY121-4
PowerkW0.8
Rotation speedr/min1380
CurrentA2.4
PowerAC 380V, 50HZ, 3P(As your demand)
