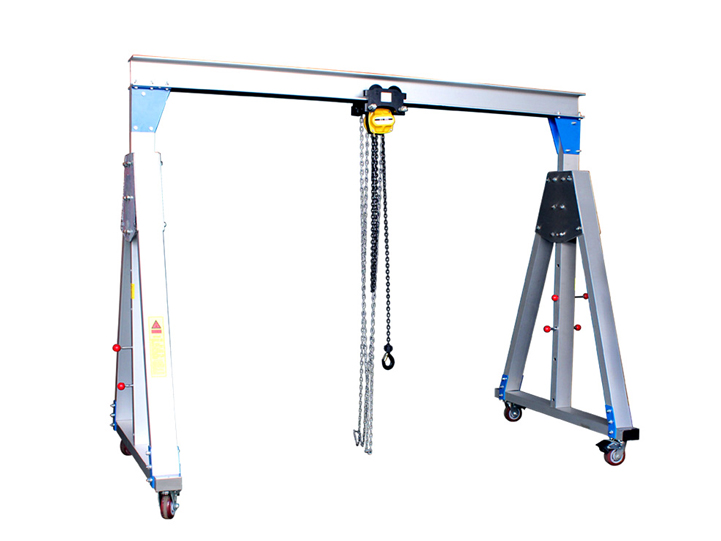

Compared with the steel portable gantry crane, the aluminum portable gantry crane has the advantage of being light in weight and easy to carry. which is know as EME (easily moved equipment) gantry crane.

Rated Load: 5 ton
Rated Height: 8m
Rated Span: 8m

Share With:


Aluminum Portable Gantry Crane

There are 3 types of Sinoko aluminum portable gantry crane, which are fixed, height adjustable and height and span adjustable aluminum portable gantry crane.

Please provide us with data such as rated load, height, span, hoist configuration, etc. according to site conditions and operating requirements, and our senior engineers will design the best product solution for you.


Features

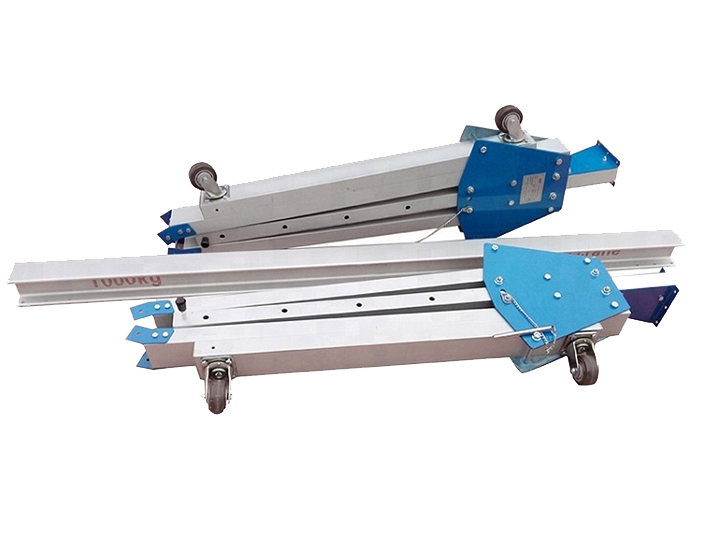

1. Adjustable height and installation. Easy to disassemble.

2. Hand-push walking, with universal casters with braking device.

3. The precision parts and welding components are aligned and installed, which is convenient for operation, stable performance and long service life.

4. Using national standard I-beam, the product quality is guaranteed. All bolts are made of 8.8 grade high-strength steel, galvanized and corrosion resistant, which enhances the service life of the product.

5. All gantry cranes adopt heavy-duty casters, which have a long service life and provide smooth rolling performance, which does not affect the use even on rough floors.

6.Outdoor use can add rain cover and change the design of surface paint and stainless steel motor.

Specification

Type

Load(t)

Height(m)

Span(m)

Beam Height(mm)

PT2-1-0.5

0.5

2.6-3.8

3-9

140

PT2-1-1

1

2.6-3.8

3-9

160

PT2-1-2

2

2.6-3.8

3-9

160

PT2-1-3

3

2.6-3.8

3-9

200

PT2-1-5

5

2.6-3.8

3-9

250

Motion Type :Hand push type and electric controlled universal castor with brake device

Height Range Instruction:According to the actual use requirements to increase the lifting height and height of the body


Get a Free Quote

CASE

See how workshops worldwide deploy Sinoko's aluminum cranes: foldable in minutes, pushed into tight corners, lifting tons where fixed cranes can't reach.

Installation of 3T Portable Gantry Crane for Thai Manufacturing Facility

Installation of 3T Portable Gantry Crane for Thai Manufacturing Facility

The 3 ton portable small gantry crane specially designed by Sinokocranes for Thai customers has significantly reduced the production costs for the customers and enhanced their production efficiency.

Learn More Get a Quote
5T Portable Gantry Crane Deployment for Australian Equipment Rental

5T Portable Gantry Crane Deployment for Australian Equipment Rental

The portable gantry cranes provided by Sinoko Cranes for the leasing company of Australian customers have significantly increased the number of rentals for the customers and enhanced the revenue of their companies.

Learn More Get a Quote
Installation of 10T European-Style Gantry Crane for Pakistani Client by Sinoko Cranes

Installation of 10T European-Style Gantry Crane for Pakistani Client by Sinoko Cranes

Struggling with slow manual gates? Sinoko's European gantry crane slashed Pakistan customer's downtime by 64%! Transform your access efficiency – contact us!

Learn More Get a Quote

FAQs

1.How heavy is this to move?

1/3 the weight of steel cranes! The 5-ton model weighs just 380kg - two people can push it. Folds small enough to fit in a pickup truck.

2.Assembly time?

Under 30 minutes with basic tools. Watch our 4-minute assembly video on YouTube. No welding or heavy gear needed.

3.Works on rough concrete?

Heavy-duty casters handle bumps/gravel. Added bonus: Brakes lock solid even on 5° slopes. Tested in auto repair shops with oil-slick floors.

4.Rain/snow use?

Add our weather kit:✓ Stainless motor ✓ Corrosion-resistant paint✓ Optional canopy

5.Max height adjustment?

Standard lifts 8m, but we customize up to 12m. Tell us your ceiling height - we'll engineer support braces.

6.Why aluminum over steel?

Three wins:① Moves 3x faster between workstations② No rust stains on delicate floors③ Saves $200+/year in fuel (lighter to transport)


    Get In Touch

    Our teams are on hand to provide you with the right lifting solutions.

    FEW TIPS

    1.Load capacity: ton?

    2.Span of the crane: m?

    3.Max. lifting height of the crane: m?

    4.What materials will be handled: ?

    5.How many hours will the crane work per day: ?

    6.Traveling distance of the crane: m?
