Normally the steel scrap magnet overhead crane working duty is A5~A7. Due to different working efficiency requirements, we will make different proposal for customer.
1.Special magnetic circuit design .It has large space and magnetism density.
2.Good insulation structure. The insulation treatments adopt the vacuum drying & glue filling, which has improved the electrical and mechanical performance of the coils
3.The constant control voltage. It can further improve the lifting capacity if changing to adopt the control mode of over excitation.
4.High temperature type can work in the high temperature. It adopts unique method of heat protection.
5.Simple and convenient installation, operation and maintenance
6.Long working life ,simple structure.
7.High Efficiency.
8. Back battery to avoid risk when the power is suddenly off.
Steel Scrap Lifting Magnet Overhead Crane Feature
Special magnetic circuit design .It has large space and magnetism density.
Good insulation structure. The insulation treatments adopt the vacuum drying & glue filling, which has improved the electrical and mechanical performance of the coils
The constant control voltage. It can further improve the lifting capacity if changing to adopt the control mode of over excitation.
High temperature type can work in the high temperature. It adopts unique method of heat protection.
Simple and convenient installation, operation and maintenance
Long working life ,simple structure.
High Efficiency.
Back battery to avoid risk when the power is suddenly off.

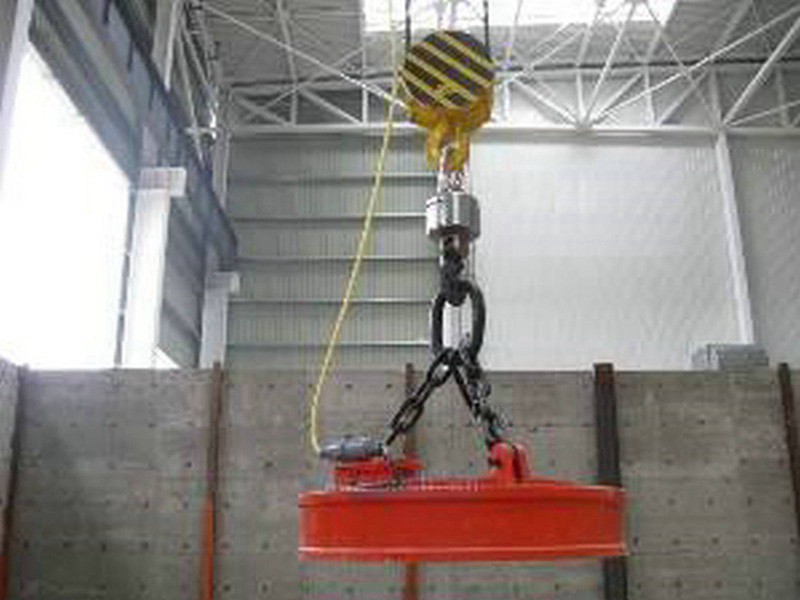

Steel Scrap Lifting Magnet Specification
Model | Current in cold state（A） | Power in cold state(KW) | Lifting capacity (kg) | Weight (kg) | Overall dimension (mm) | Control Equipment | Cable reel & Cable Connector | ||||||
Single steel ball | Packed steel ingots | Packed steel scraps | A | B | C | D | E | ||||||
MW5-70L/1 | 15 | 3.3 | 2500 | 380/200 | 120/100 | 490 | 700 | 800 | 160 | 90 | 30 | STML-4E-C | JTA75-15-2 DL-102 |
MW5-80L/1 | 18 | 3.96 | 3000 | 480/250 | 150/130 | 620 | 800 | 800 | 160 | 90 | 30 | STML-4E-C | |
MW5-90L/1 | 26.6 | 5.85 | 4500 | 600/400 | 250/200 | 800 | 900 | 1090 | 200 | 125 | 40 | STQL-7E-C | |
MW5-110L/1 | 35 | 7.7 | 6500 | 1000/800 | 450/400 | 1350 | 1100 | 1140 | 220 | 150 | 45 | STQL-9E-C | JTA100-15-2 DL-102 |
MW5-120L/1 | 45.5 | 10 | 7500 | 1300/1000 | 600/500 | 1700 | 1200 | 1180 | 220 | 150 | 45 | STQL-14E-C | |
MW5-130L/1 | 54 | 11.9 | 8500 | 1400/1100 | 700/600 | 2060 | 1300 | 1240 | 250 | 175 | 50 | STQL-14E-C | |
MW5-150L/1 | 71.2 | 15.6 | 11000 | 1900/1500 | 1100/900 | 2830 | 1500 | 1250 | 350 | 210 | 60 | STQL-19E-C | |
MW5-165L/1 | 75 | 16.5 | 12500 | 2300/1800 | 1300/1100 | 3200 | 1650 | 1590 | 370 | 230 | 75 | STQL-19E-C | |
MW5-180L/1 | 102.4 | 22.5 | 14500 | 2750/2100 | 1600/1350 | 4230 | 1800 | 1490 | 370 | 230 | 75 | STQL-25E-C | JTA200-15-2 DL-202 |
MW5-210L/1 | 129 | 28.4 | 21000 | 3500/2800 | 2200/1850 | 7000 | 2100 | 1860 | 400 | 250 | 80 | STQL-32E-C | |
MW5-240L/1 | 154 | 33.9 | 26000 | 4800/3800 | 2850/2250 | 9000 | 2400 | 2020 | 450 | 280 | 90 | STQL-38E-C | |
FAQs

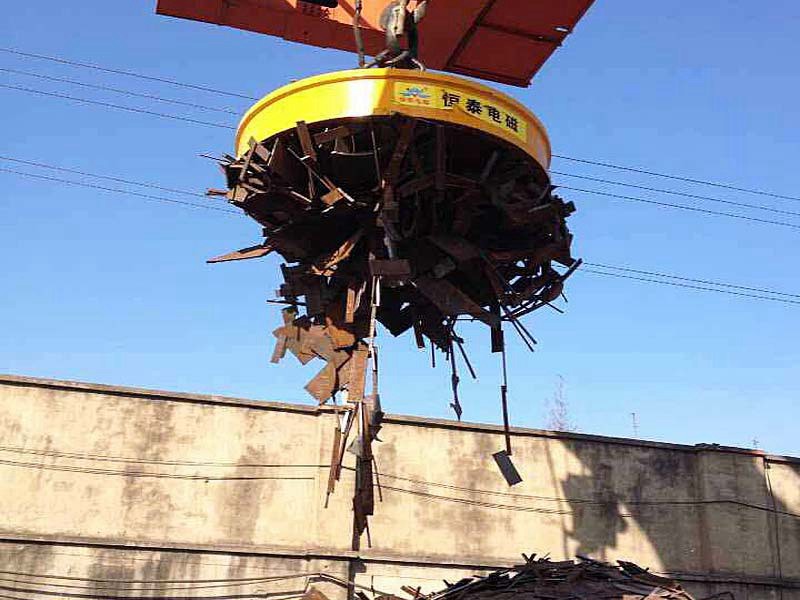

It is designed for lifting, transferring, and loading steel scrap materials using a strong electromagnet. Commonly used in steel mills, recycling yards, scrap processing facilities, and foundries.
The magnet is powered by a DC generator, battery, or separate power supply system through a cable reel or slip ring, ensuring continuous operation and safety.
Yes, high-temperature-resistant magnets are available for lifting hot scrap directly from furnaces or rolling mills.
Yes. We offer weather-proof, dust-resistant, and anti-corrosion configurations with IP-rated enclosures for harsh outdoor environments.
