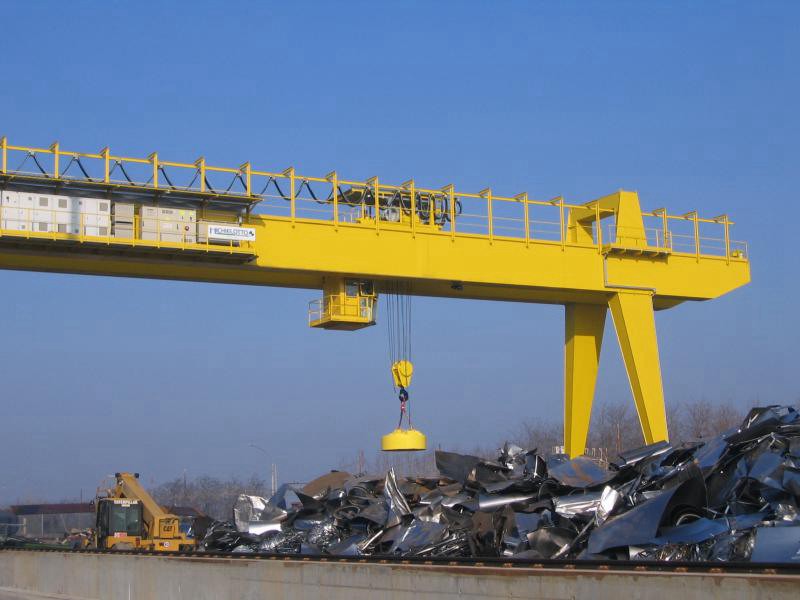

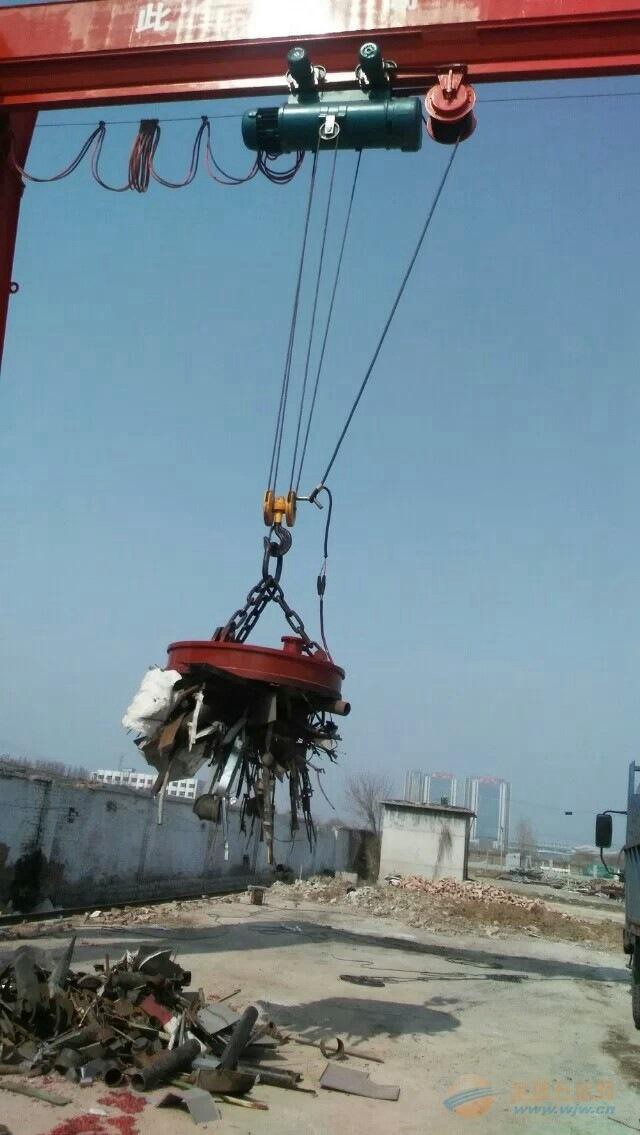

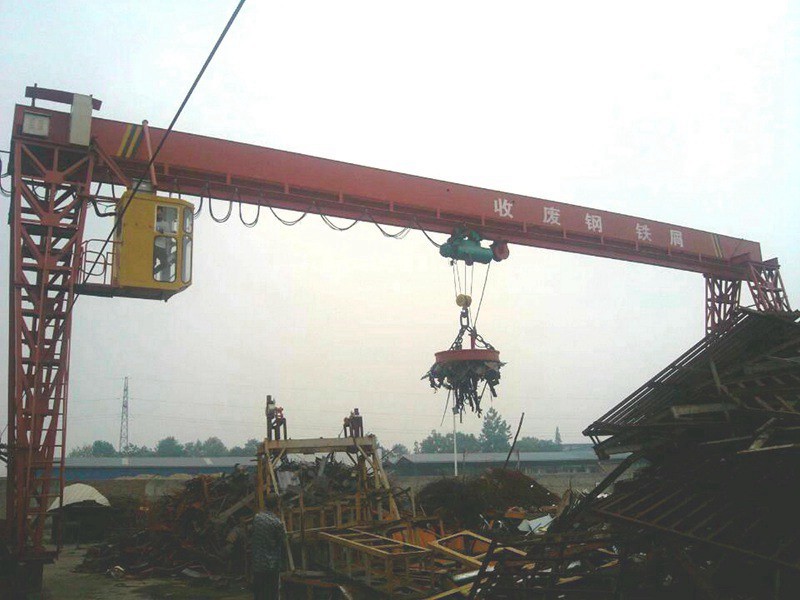

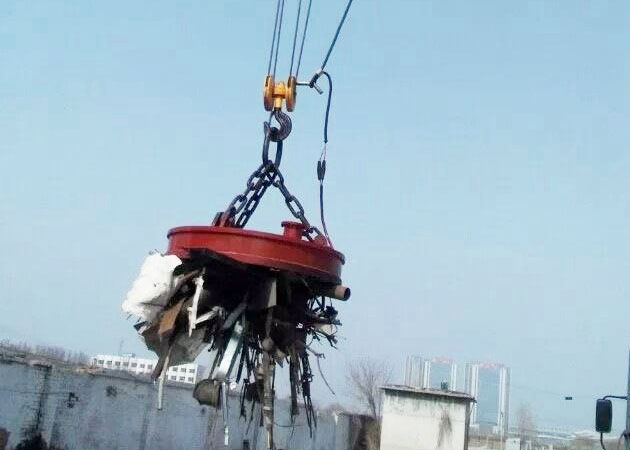

Sinokocrane is focusing on steel scrap magnetic crane, magnet charging crane, scrapyard electromagnet crane for many years. We have been doing professional design of magnet crane due to the harsh work condition, High temperature Environments, High Dust, Heavy work requirements etc.
Normally the scrap yard magnet gantry crane working duty is A5~A7. Due to different working efficiency requirements, we will make different proposal for customer.
Advantage of Scrap Yard Magnet Gantry Crane
- Special magnetic circuit design. It has large space and magnetism density.
- Good insulation structure. The insulation treatments adopt the vacuum drying & glue filling, which has improved the electrical and mechanical performance of the coils
- The constant control voltage. It can further improve the lifting capacity if changing to adopt the control mode of over excitation.
- High temperature type can work in the high temperature. It adopts unique method of heat protection.
- Simple and convenient installation, operation and maintenance
- Long working life ,simple structure.
- High Efficiency.
- Back battery to avoid risk when the power is suddenly off.
| Model | Current in cold state( A) | Power in cold state(KW) | Lifting capacity (kg) | Weight (kg) | Overall dimension (mm) | ||||||
| Single steel ball | Packed steel ingots | Packed steel scraps | A | B | C | D | E | ||||
| MW5-70L/1 | 15 | 3.3 | 2500 | 380/200 | 120/100 | 490 | 700 | 800 | 160 | 90 | 30 |
| MW5-80L/1 | 18 | 3.96 | 3000 | 480/250 | 150/130 | 620 | 800 | 800 | 160 | 90 | 30 |
| MW5-90L/1 | 26.6 | 5.85 | 4500 | 600/400 | 250/200 | 800 | 900 | 1090 | 200 | 125 | 40 |
| MW5-110L/1 | 35 | 7.7 | 6500 | 1000/800 | 450/400 | 1350 | 1100 | 1140 | 220 | 150 | 45 |
| MW5-120L/1 | 45.5 | 10 | 7500 | 1300/1000 | 600/500 | 1700 | 1200 | 1180 | 220 | 150 | 45 |
| MW5-130L/1 | 54 | 11.9 | 8500 | 1400/1100 | 700/600 | 2060 | 1300 | 1240 | 250 | 175 | 50 |
| MW5-150L/1 | 71.2 | 15.6 | 11000 | 1900/1500 | 1100/900 | 2830 | 1500 | 1250 | 350 | 210 | 60 |
| MW5-165L/1 | 75 | 16.5 | 12500 | 2300/1800 | 1300/1100 | 3200 | 1650 | 1590 | 370 | 230 | 75 |
| MW5-180L/1 | 102.4 | 22.5 | 14500 | 2750/2100 | 1600/1350 | 4230 | 1800 | 1490 | 370 | 230 | 75 |
| MW5-210L/1 | 129 | 28.4 | 21000 | 3500/2800 | 2200/1850 | 7000 | 2100 | 1860 | 400 | 250 | 80 |
| MW5-240L/1 | 154 | 33.9 | 26000 | 4800/3800 | 2850/2250 | 9000 | 2400 | 2020 | 450 | 280 | 90 |
FAQs
This crane is designed to handle and transport scrap materials by using a hydraulic grab or electromagnet to transfer scrap into a bucket, which is then conveyed into the melting furnace by a trolley system
