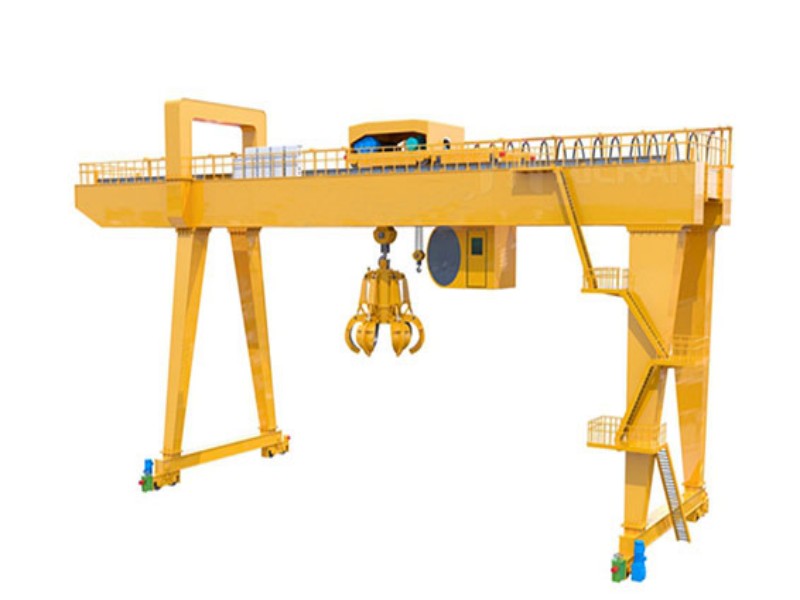

Scrap Yard Grab Gantry Cranes

Scrap yard grab gantry cranes are equipped with a hydraulic grab or magnets to loading the scraps into scrap bucket transferring trolley. Then low-voltage transfer trolley will shift the scraps bucket into the melting shop. Finally the melting shop crane is required to pick up a scrap bucket collected with the double laminated hook and charge the scrap into the Electric Arc Furnace directly.

The scrap yard grab gantry cranes shall be heavy duty design and cabin operated though master controllers. The working duty of this crane is Min.A5. Generally, the crane is designed to be A6 or A7 duty group.

Scrap Yard Grab Gantry Cranes

* Heavy duty design and high efficiency

* Large span with single or double external cantilever beams

* Open winch trolley with rain-proof cover

* Slip ring motor, high starting torque with low starting current

* Double EHT brakes for each hoisting mechanism

Lifting Capacity	t	5	10	16	20	32
Span	m	10-40
Hoisting Speed	m/min	12.9	10.6	10.7	9.7	9.7
Cross Travel Speed		38	36.5	36.5	36.5	36.5
Long Travel Speed		72	72	72	72	72
Control Model		Cabin operated though master controllers
Working Class		ISO A5-A7
Steel Track		P38	P43	P43	QU70	QU70/80

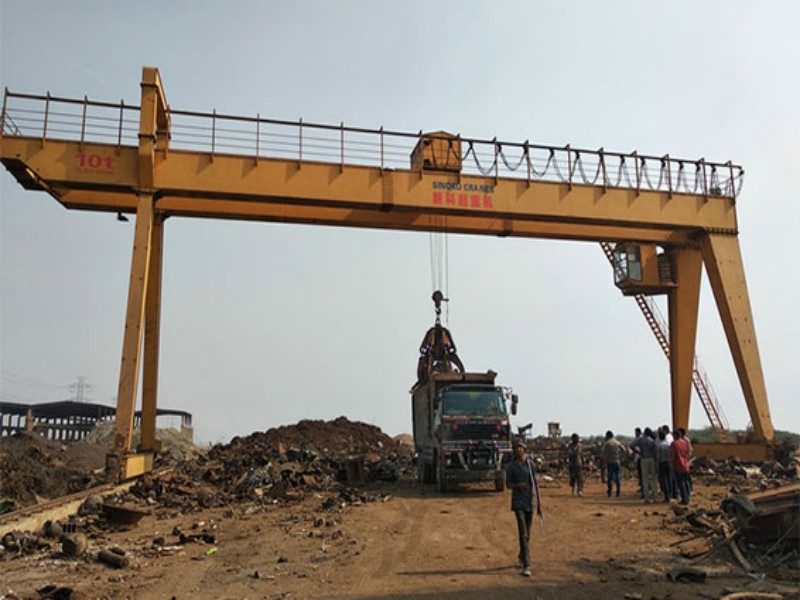

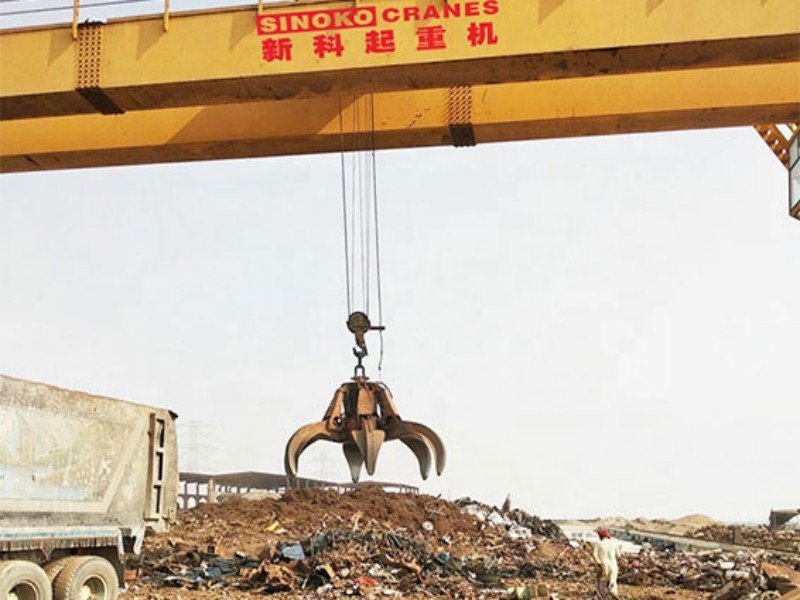

Applications of Scrap Yard Grab Gantry Cranes

Get In Touch

Our teams are on hand to provide you with the right lifting solutions.

FEW TIPS

1.Load capacity: ton?

2.Span of the crane: m?

3.Max. lifting height of the crane: m?

4.What materials will be handled: ?

5.How many hours will the crane work per day: ?

6.Traveling distance of the crane: m?
