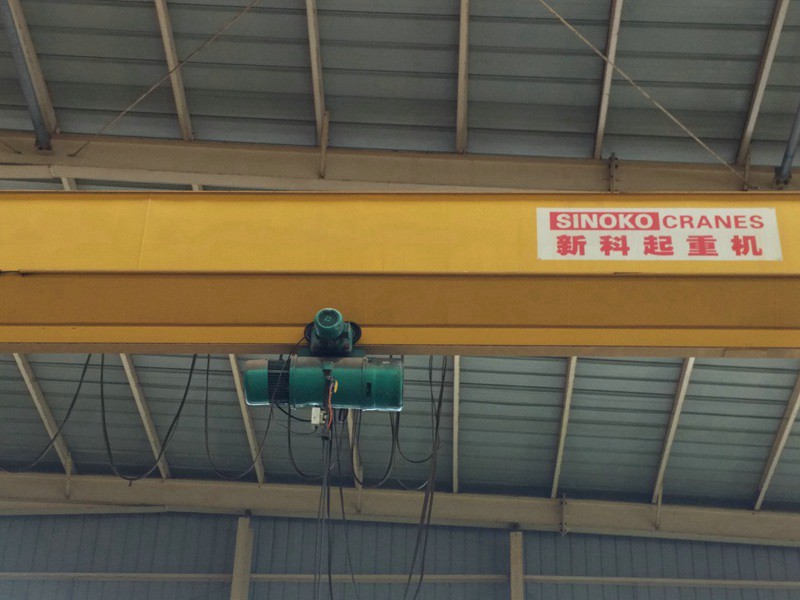

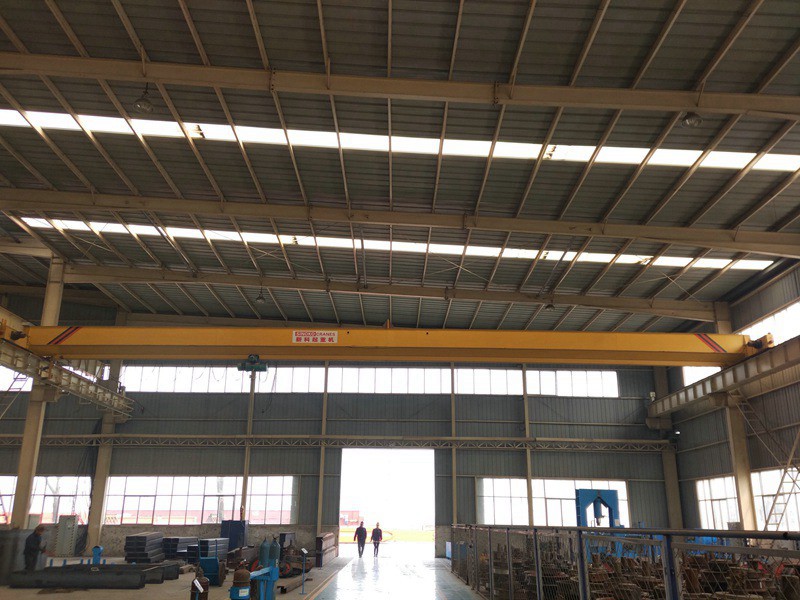

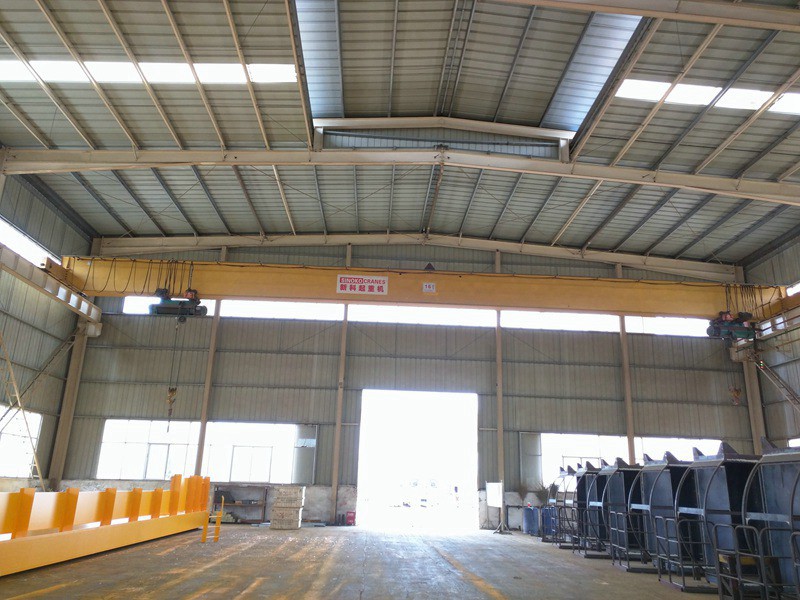

LD Type single girder electric overhead traveling crane has the advantages of rational structure and strong rigidness of whole unit which will be used together with electric hoist in the operation.
They are applicable to the transfer assembly, check and repair as well as load and unload at mechanic processing workshop, subsidiary workshop of metallurgical mills, warehouse, goods yard and power station. They can also be used instead of common double-girder overhead crane at production workshop in light textiles or food industry.
It's prohibited to work in environment with combustible, explosive or corrosive media.
Loading capacity: 1-32t
Spam7.5m-31.5m
Working grade is A3-A4
It is prohibited to use the equipment in the combustible, explosives environment
Features
1.Weight overload protective device
2.Top quality polyurethane buffer
3.Crane traveling limit switch and lifting limit switch
4.Low voltage protection function
5.Emergency stop system
6.Laser anti-collision system
Specification
lifting capacity(T) | 1,2,3,5,10T | 16,20T | |||||
Span(M) | 7.5-31.5M | ||||||
Crane travelling mechanism | Travelling speed(m/min) | 20/30 | 20/30 | ||||
Motor | Model | ZDY21-4 | ZDY21-4 | ZDY122-4 | ZDY131S-4 | ZDY112L1-4 | |
Power(kw) | 2×0.8 | 2×1.5 | 1.5×2 | 2.2×2 | 2.2×2 | ||
Rotation (m/min) | 1380 | 1380 | |||||
Lifting mechanism | Electric hoist model | CD1/MD1 | MD1/HC | ||||
(electric hoist)&electric hoist travelling mechanism | Lifting speed (m/min) | 8,8/0.8 7,7/0.7 | 3.5 3.5/0.35 | ||||
Lifting height (m) | 6 ,9 ,12, 18, 24, 30 | 12,18,24,30 | |||||
Travelling speed (m/min) | 20(30) | 20(30) | |||||
Motor | Taper Squirrel-cage type | Taper Squirrel-cage type | |||||
Work duty | A3-A5 | ||||||
Power supply | 380V 50HZ three phase | ||||||
Wheel diameter | 270mm | 370mm | |||||
Tread of trail | 37-70mm | 37-70mm | |||||
CASE
Discover how our Workshop Used Single Girder Overhead Cranes have been successfully deployed in various industrial projects. From improving operational efficiency in workshops to maximizing space in factory settings, see how our tailored crane solutions can meet your specific lifting and handling needs.
3× 5T European-Style Single-Girder Cranes for Kenyan Sugar Refinery
Sinoko cranes has designed three 5-ton bridge cranes for Kenyan customers, which have solved their problems. Come and contact Sinoko cranes to solve your lifting problems.
Learn More Get a Quote
Automotive Repair Facility in Russia 5 Ton Workshop Bridge Crane Project Case
The Sinoko crane, a 5-ton bridge crane tailor-made for a Russian customer's auto repair shop, has helped the customer solve the problem of lifting and transportation, improved the customer's work efficiency, and saved the customer's work costs.
Learn More Get a Quote
32T Steel Coil Handling Crane Project Case
Sinoko Crane with years of experience in crane manufacturing and design, the steel coil handling crane has helped customers reduce costs and improve the efficiency of steel coil transportation.
Learn More Get a QuoteFAQs
A Workshop Used Bridge Crane, specifically the Single Girder Overhead Crane, is designed for lifting heavy materials in workshop environments. It utilizes a single girder for cost-effective and efficient material handling, ideal for factory settings with limited space and heavy lifting requirements.
This crane operates by moving along rails mounted on the ceiling, with a single girder supporting the hoist and lifting mechanism. It uses a hoist to lift and lower loads while the bridge moves horizontally to position the load for various tasks within the workshop.
The Single Girder Overhead Crane offers space-saving solutions, higher lifting capacities, and enhanced productivity in workshop environments. It ensures smooth and precise load handling while reducing the risk of accidents, making it a reliable choice for small to medium-scale operations.
Yes, Sinoko Cranes provides customization options for the Single Girder Overhead Crane, including varying lifting capacities, hoist types, and control systems. This allows the crane to be tailored to meet the specific needs and dimensions of your workshop.
While primarily designed for indoor use, the Single Girder Overhead Crane can be adapted for outdoor environments with the appropriate modifications. It’s built to handle heavy loads and can withstand the challenges of outdoor conditions when customized accordingly.
This crane is equipped with essential safety features, such as overload protection, emergency stop buttons, limit switches, and safety sensors, ensuring secure and efficient operation. These features help protect both operators and equipment during lifting operations.
