Overview:

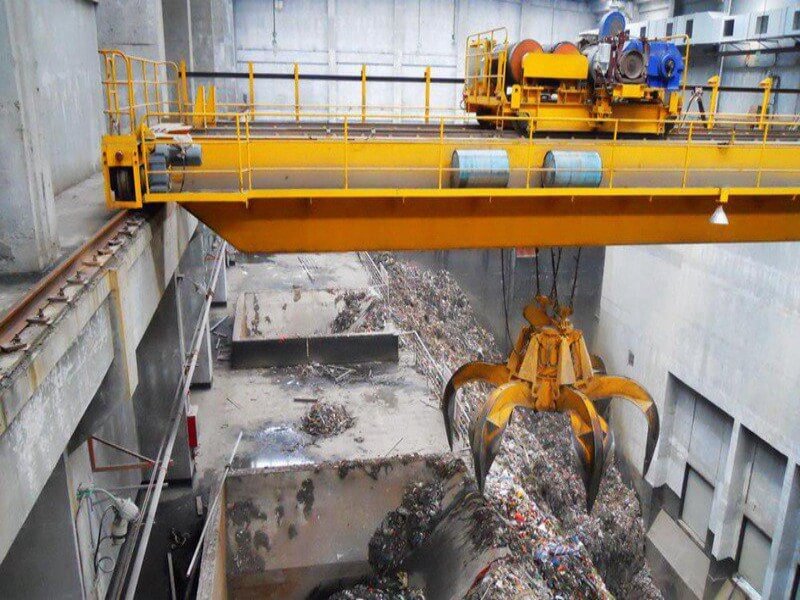

Double girder EOT crane with grab is a lifting appliance which depend on jaw opening and closing crawl and unloading bulk material.
According to be stacked capture material density is divided into light, medium, heavy, and super heavy.
| Type | Material | Material capacity (T/m3;) |
| Light | Coke, slag, Cereals, potatoes, lime, cement blocks in anthracite, dirt, gravel, clay, brick | 0.5--1.2 |
| Medium | Peat, the bulk of anthracite, coal, limestone, clay compaction, gravel, salt, gravel, brick, alumina, iron sheet iron oxide, cement, water, sand etc. | >1.2--2.0 |
| Heavy | Limestone, clay, a small piece of ore, hard rock, stick on shaped iron oxide, iron ore, lead ore concentrate | >2.0--2.6 |
| Super Heavy | Lump ore, manganese ore, bulk deposition of ore powder caking | >2.6 |

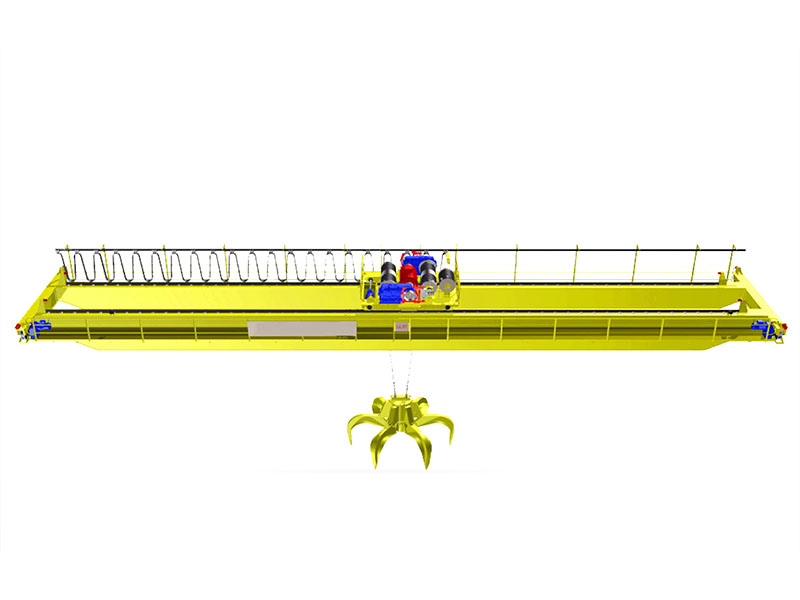

I. Crane Detail of Mechanical Clamshell Grab Bucket EOT Crane
1.Strong beams:The crane beams are of welded construction, this result in lower dead weight with a high degree of vertical and horizontal rigidity and smaller wheel loads.
2. End carriage:Crane travelling system, motor-reducer wheel driven system! Motor used soft start motor which result in very stable starting!
3.Durable performance and high efficiency,
4.Modern cabin control with air conditioner to separate operators from harsh environment,
5.Electrical equipment: Electric system are Siemens brand or Schneider brand,
6.Long service lift with a low-maintenance

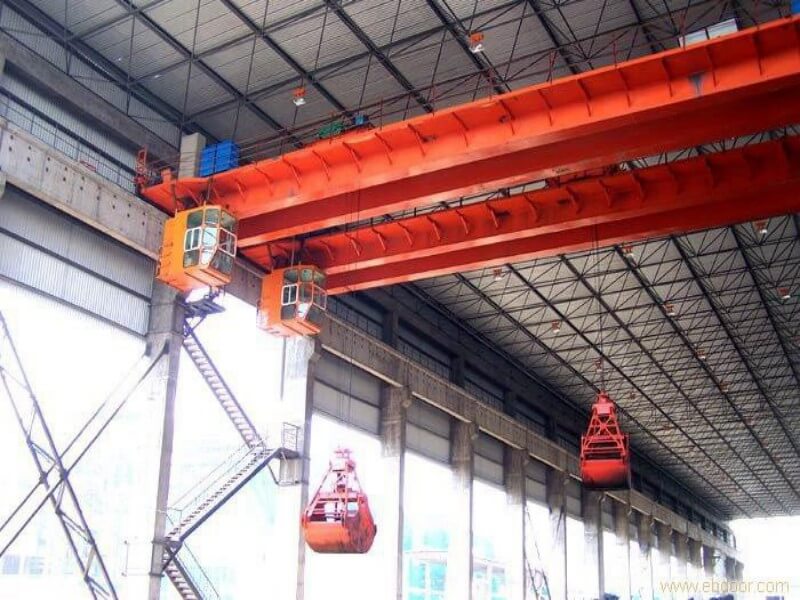

II. Application of Clamshell Grab Bucket Overhead Crane
Widely used to transport, assemble, load and unload incompact goods in mine, port, factory, workshop, warehouse, and goods yard, etc. Crane's open direction is divided into parallel and vertical with main beam and the grab can be double or four wire rope, mechanical or electric type according to different work duty and materials
Specification
| Lifting Capacity (T) | 5 | 10 | 20 | ||
| Max. Lifting Height (M) | 20 | 18 | 22 | ||
| Span (M) | 10.5-31.5 | ||||
| Working System | A6 | ||||
| Speed (M/Min) | Trolley | Hoisting | 40.1 | 40.7 | 48.6 |
| Travelling | 44.6 | 45.7 | 43.2 | ||
| Bridge travelling | 93.7-114.4 | 112.5-101 | 87.3 | ||
| Weight (T) | Trolley | 5.2/5.9 | 8.2/9.1 | 19.3/20.4 | |
| Total | Indoor | 19.9-41.3 | 26.5-50.4 | 56.1-75.6 | |
| Outdoor | 20.7-42.1 | 27.4-51.2 | 57.3-76.8 | ||
| Grab | Volume (CUM) | 2.5-0.75 | 5-1.5 | 10--3 | |
| Dead weight (KG) | 2632-2546 | 4800-4793 | 9812-10123 | ||
| Rail recommended | 43kg/m, QU70 | ||||
| Power Source | 3Phase AC 380V 50HZ (As your demand) | ||||
CASE
Based on their intended use, overhead cranes can be classified into general-purpose cranes, steel mill cranes, and explosion-proof cranes. Each type is designed with specific working environments and load requirements in mind, ensuring safety and efficiency.
Automotive Repair Facility in Russia 5 Ton Workshop Bridge Crane Project Case
The Sinoko crane, a 5-ton bridge crane tailor-made for a Russian customer's auto repair shop, has helped the customer solve the problem of lifting and transportation, improved the customer's work efficiency, and saved the customer's work costs.
Learn More Get a Quote
3× 5T European-Style Single-Girder Cranes for Kenyan Sugar Refinery
Sinoko cranes has designed three 5-ton bridge cranes for Kenyan customers, which have solved their problems. Come and contact Sinoko cranes to solve your lifting problems.
Learn More Get a Quote
32T Steel Coil Handling Crane Project Case
Sinoko Crane with years of experience in crane manufacturing and design, the steel coil handling crane has helped customers reduce costs and improve the efficiency of steel coil transportation.
Learn More Get a QuoteFAQs
A: Ideal for bulk materials like coal, sand, gravel, scrap metal, and minerals. Handles densities from 0.5T/m³ (light) to >2.6T/m³ (super heavy).
A: Premium Siemens or Schneider electrical systems ensure reliability. Features soft-start motors for stable operation.
A: Yes. Includes: IP-rated cabin with AC (dust/heat protection) A6 duty class for heavy usage Rugged welded beams for durability
A: Options from 0.75-10m³: 5T crane: 0.75-2.5m³ 10T crane: 1.5-5m³ 20T crane: 3-10m³
A: High-efficiency speeds: Hoisting: Up to 48.6 m/min Trolley travel: Up to 45.7 m/min Bridge travel: Up to 114.4 m/min
