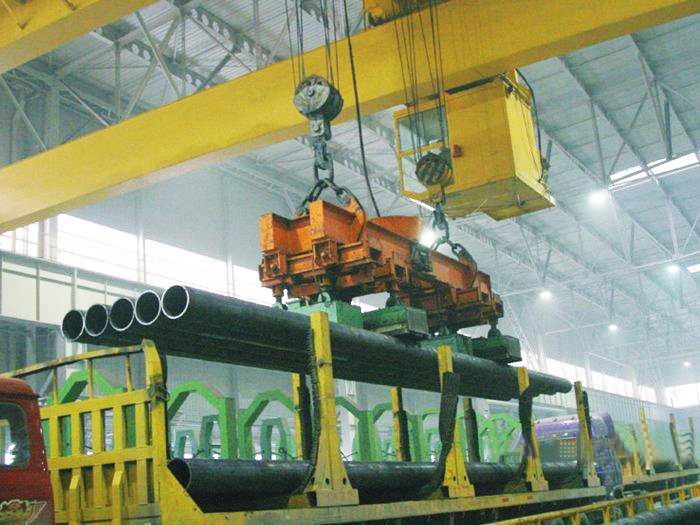

QX Electromagnetic EOT Crane has slewing carrier-beam, is applicable to the fixed span at indoors or outdoors of steel mill, Shipyard, port, yard and storage, etc.
It is used for loading, unloading and carrying steel plate, profile steel, and spool, etc.
It is especially applicable to lift material or different specifications and which needs Horizontal rotation.
The carrier-beam is cross structure, which is reliable and has good safety features, and has a certain function of preventing swinging.
The lower part of the carrier-beam can bring special lifting appliances, such as magnetic chuck and tongs, etc
Features
1. Optimized design by computer with reasonable structure, high suction weight ratio and low energy consumption.
2. Energizing coils processed by special technology with improved electrical and mechanical performance; heat-resistance grade of insulation material grade C with long using life.
3. High temperature type electromagnet adopting unique method of heat-protection. Temperature limit of the attached items is increased from 600~700 degree, which expands application range of lift electromagnet.
4. Easy and convenient installation, operation and maintaince
It is special magnetic pole is suitable for round coil with different diameters; selection of electromagnet depends on the length of round coil. If the electromagnet is long enough at a time
5. Suitable for transferring cast ingots, steel billets and various kinds of scrapped steel, Applied to lifting and transferring big steel ingots, continuous casting plates and heavy steel plates
Specification
Capacity | t | 10+10 | 12.5+12.5 | 13.5+13.5 | |
Span | m | 28.5 | 31.5 | ||
Lifting height | m | 16 | 10 | 13 | |
Working class | A6 | A7 | |||
Speed | Hoisting | m/min | 11.4 | ||
Rotation | 0.8r/min | ||||
Traveling of crab | 38 | ||||
Traveling of crane | 88 | ||||
Recommended rail | QU80 | ||||
Power supply | 3-Phase380V50HZ |
CASE
See how Sinoko electromagnetic cranes handle steel coils to scrap heaps with precision – transforming material handling in ports, mills, and recycling yards worldwide.
3× 5T European-Style Single-Girder Cranes for Kenyan Sugar Refinery
Sinoko cranes has designed three 5-ton bridge cranes for Kenyan customers, which have solved their problems. Come and contact Sinoko cranes to solve your lifting problems.
Learn More Get a QuoteAutomotive Repair Facility in Russia 5 Ton Workshop Bridge Crane Project Case
The Sinoko crane, a 5-ton bridge crane tailor-made for a Russian customer's auto repair shop, has helped the customer solve the problem of lifting and transportation, improved the customer's work efficiency, and saved the customer's work costs.
Learn More Get a Quote32T Steel Coil Handling Crane Project Case
Sinoko Crane with years of experience in crane manufacturing and design, the steel coil handling crane has helped customers reduce costs and improve the efficiency of steel coil transportation.
Learn More Get a QuoteFAQs
Perfect for moving steel plates, coils, and scrap metal in steel mills, ports, and scrap yards. The electromagnetic system grabs metal instantly - just turn power on/off.
Yes! Our magnetic poles adjust to different diameters automatically. Send us your coil sizes and we'll configure the right electromagnet.
0.8 rotations per minute for precise positioning. That's slow enough to place heavy steel safely but fast enough for efficient work.
Just monthly checks of cables and connectors. We provide a 5-step maintenance video with every crane.
Visit our demo yard in China or request video of our cranes operating in Korean steel mills and Brazilian ports.
18 years specializing in magnetic cranes. We've installed 200+ units handling scrap metal, coils, and heavy plates worldwide.
