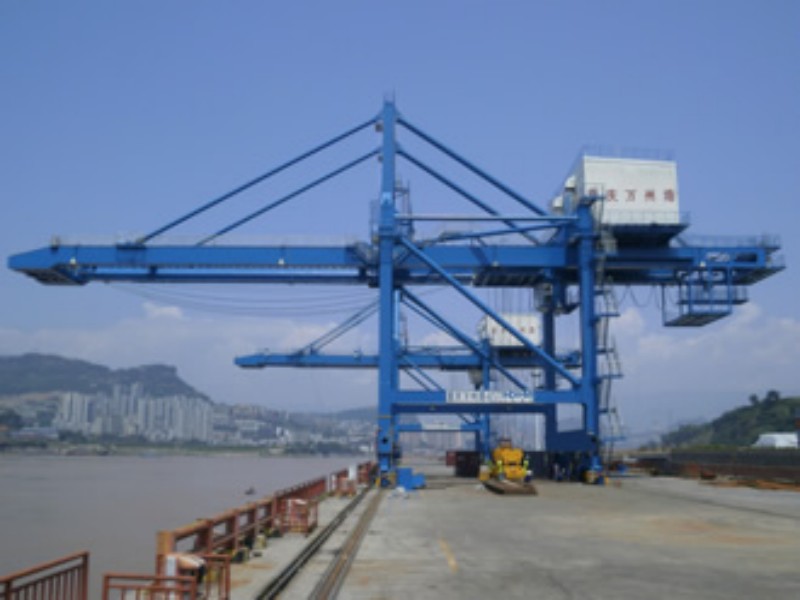

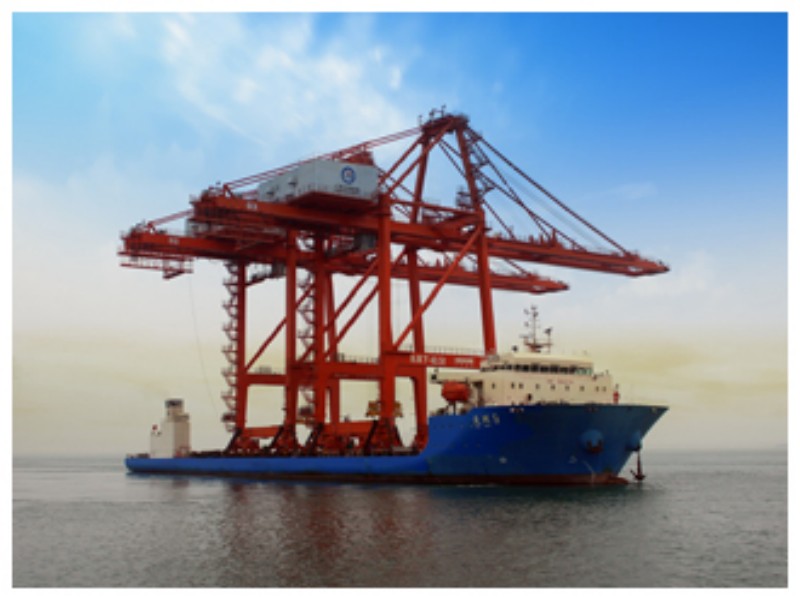

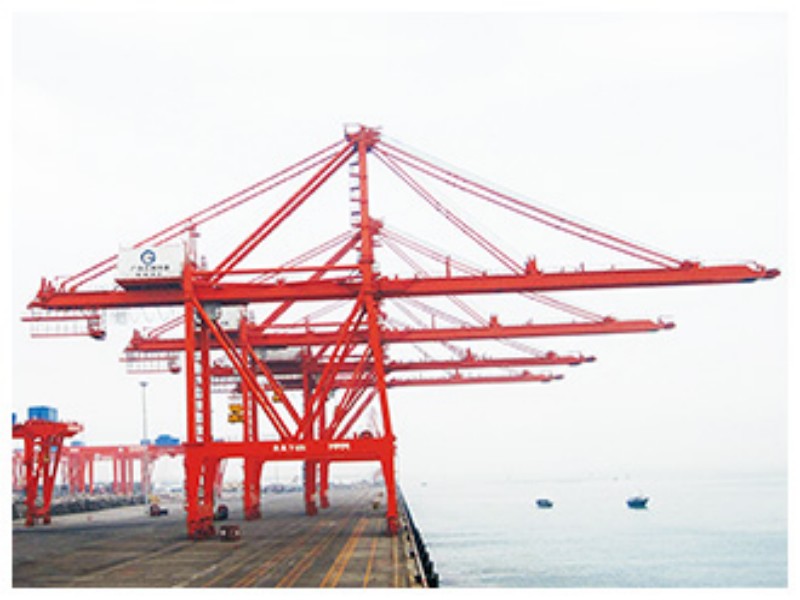

Port Gantry Crane which is widely used for port cargo handling, container lifting and other operations. The common port cranes include portal cranes, fixed cranes, marine cranes / floating cranes, etc. The utility model has the advantages of smooth transmission, high efficiency, convenient operation and low failure rate. The wire rope used by port crane includes phosphating coating wire rope, galvanized steel wire rope and smooth wire rope.
Features
With the deterioration of the atmospheric environment, the acid composition in the rainwater increases, and the opencast equipment such as the wharf crane has also caused a little influence, so it is also a key point to prevent corrosion in the maintenance of the wharf crane. The rust prevention of quay crane mainly includes the following points
(1) to remove the damaged part of the film on the metal structure, the surface of the component should be cleaned and painted with antirust paint and decorative paint to protect the metal surface from rust after the rain.
(2) in the active part of the crane, such as the connection pin of the sling and the crane, the wheel of the guide wheel and the wheel of the car, the rust prevention work should be done well. After the shutdown, the first brush to brush these parts, remove the corrosion of the impurities, moisture, rust spots and so on for these parts of -10 or -20 diesel oil, because the -10 or -20 diesel oil permeability is stronger than the oil, the load of the stranded parts can penetrate into the metal surface oil film, and because of its oil film, and because of its The freezing point is low, so it can be low at low temperature.
(3) after cleaning and lubricating with diesel oil, apply a layer of grease. Calcium or lithium base grease is a good choice, because these two kinds of grease, mechanical stability, adhesion and water resistance performance, solidification point can also reach -20 degrees, coating grease, coating not too thick.
Specification
Item | Data |
Capacity(NOT including spreader) | 30.5-40.5t |
Span | 15.4-23.47m |
Lifting height | 18.2m |
lifting speed | 12-46m/min |
cross travelling speed | 45-70m/min |
long travelling speed | 45-100m/mim |
Working class | ISOA6-A7/FEM3M-FEM4M |
Power source | as your demands |
Other | According to your specific usage, specific model and design will offer |
CASE
At Sinoko Crane, we pride ourselves on delivering tailored solutions for various industrial needs. Our High Reliable Control Port Gantry Cranes have been deployed in numerous successful projects worldwide, enhancing operational efficiency and safety at ports and terminals. Explore our case studies to see how we’ve helped businesses optimize their lifting operations and elevate performance in diverse environments.
40.5T Rail-Mounted Gantry Crane Installation for Port Logistics Efficiency
The RMG gantry crane designed and manufactured by Sinokocrane has effectively solved the problems for the customers and reduced their operational costs.
Learn More Get a Quote
Installation of 3T Portable Gantry Crane for Thai Manufacturing Facility
The 3 ton portable small gantry crane specially designed by Sinokocranes for Thai customers has significantly reduced the production costs for the customers and enhanced their production efficiency.
Learn More Get a Quote
Pakistan Scrap Steel Dumping Container Gantry Crane Project Case
The Sinoko crane, leveraging years of experience and outstanding technology, designed a container gantry crane for customers, successfully solving the problem of transporting scrap steel for them.
Learn More Get a QuoteFAQs
A High Reliable Control Port Gantry Crane is a robust lifting machine designed for handling heavy loads at ports, docks, or other industrial locations. This crane features advanced control systems for precise and safe lifting operations, ensuring high reliability in demanding environments. Ideal for use in port logistics, it maximizes efficiency and minimizes downtime.
The main benefits include superior reliability, enhanced safety features, reduced maintenance costs, and improved lifting precision. This crane offers high operational efficiency, even in harsh weather conditions, making it perfect for port and dock operations where consistent performance is crucial. It also reduces energy consumption, contributing to a more sustainable workflow.
The advanced control system integrates modern technology such as PLCs (Programmable Logic Controllers) and wireless communication, providing real-time monitoring and control. This ensures smooth operation, minimizes errors, and offers higher precision in lifting, which increases overall operational efficiency and safety at the port.
Yes, Sinoko Crane offers customization options for various operational needs. Depending on your specific lifting capacity, span requirements, and site conditions, we can tailor the design and features of the crane to meet your operational demands, ensuring optimal performance and safety.
Regular maintenance is essential to keep the crane in peak condition. This includes checking the control system, inspecting mechanical components, lubricating moving parts, and testing safety features. Sinoko Crane provides detailed maintenance guidelines and support services to ensure your crane operates reliably for years.
Yes, the High Reliable Control Port Gantry Crane is designed to operate effectively in various weather conditions, including high winds, rain, and extreme temperatures. Its durable construction and advanced control systems allow for smooth operation even in challenging environments, making it perfect for port operations worldwide.
