Single Leg Gantry Crane-Known as a "semi-gantry crane", it is an application-specific solution that minimises disruption to ground space, while this arrangement saves the cost of building an elevated runway structure on that side. widely used for project installations and transfer cargos.

Capacity: 0.5-80 tons

Lift height: 6m

Span: 5-20m

Work duty: M4-M6

Protection class: IP55

Working temperature: -20~+40℃

Share With:


Single Leg Gantry Crane

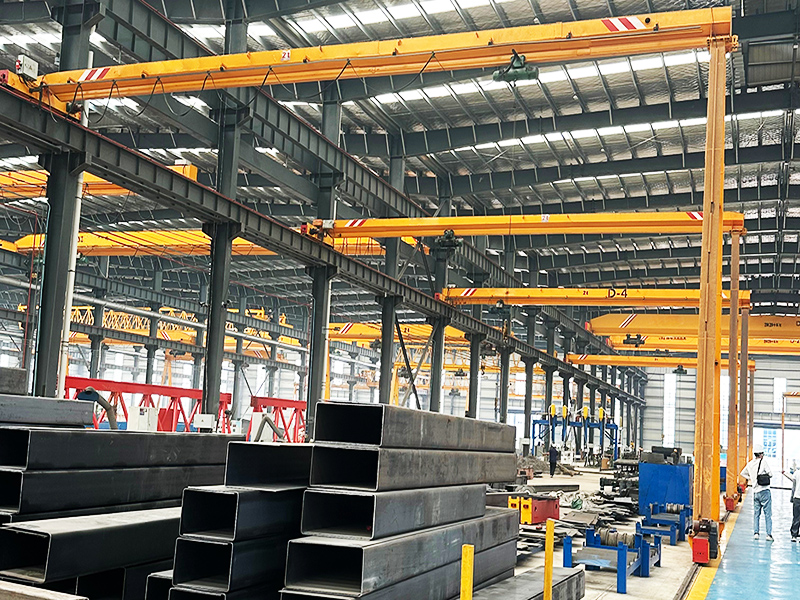

Semi-gantry Crane has a special design structure to suit various crane work situations. It can be single girder and double girder, the two ends connections are different, one side is connected and supported by the crane gantry leg travel on the ground mounted rails, another side is connected and supported by an end carriage travel on the overhead track.

Features

Stepless control.

Harden gear.

Protection class IP55.

Heavy duty motor, 60%ED rating.

Electromagnetic disk brake,dust proof.

No oil leakage,self-adjustable brake.

Heavy duty galvanized wire rope.

Outperforming reliability designing.

Smaller size,lighter wheel load.


Specification

SWL(t)0.5t-80t
HOL(m)0m-90m
Work DutyM4-M6


Note:

1. The following main parameters of the crane should be determined before ordering:

(1)lifting weight (2)span (3)lifting height (4)vertical height of the load beam to the ground (5)the length of the track.

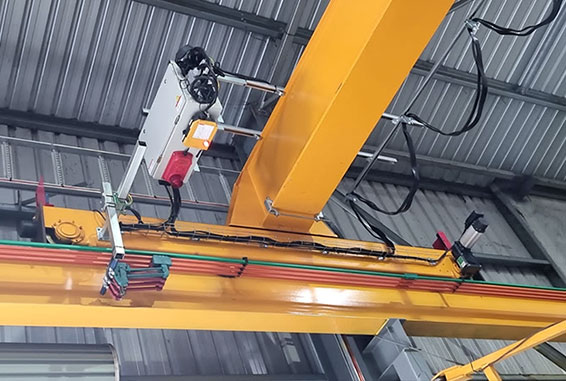

2. When ordering, it must be confirmed that the conductive forms of the cart are the trolley wire, the power supply position, and the control method. For example, the walking form is a trolley line, the power supply position is at the end of the workshop, and the operation form is ground operation.


Unlock the efficiency and versatility of the single leg gantry crane for your lifting needs. Contact us today to discuss your requirements and let our experts provide you with a tailored solution that optimizes your material handling operations. Improve productivity and streamline your workflow with the reliable single leg gantry crane.


Get a Free Quote

CASE

Discover how Sinoko gantry cranes transform operations in ports, factories, and construction sites worldwide. See our designs in action - delivering reliability where it matters most.

Installation of 10T European-Style Gantry Crane for Pakistani Client by Sinoko Cranes

Installation of 10T European-Style Gantry Crane for Pakistani Client by Sinoko Cranes

Struggling with slow manual gates? Sinoko's European gantry crane slashed Pakistan customer's downtime by 64%! Transform your access efficiency – contact us!

Learn More Get a Quote
5T Portable Gantry Crane Deployment for Australian Equipment Rental

5T Portable Gantry Crane Deployment for Australian Equipment Rental

The portable gantry cranes provided by Sinoko Cranes for the leasing company of Australian customers have significantly increased the number of rentals for the customers and enhanced the revenue of their companies.

Learn More Get a Quote
Pakistan Scrap Steel Dumping Container Gantry Crane Project Case

Pakistan Scrap Steel Dumping Container Gantry Crane Project Case

The Sinoko crane, leveraging years of experience and outstanding technology, designed a container gantry crane for customers, successfully solving the problem of transporting scrap steel for them.

Learn More Get a Quote

FAQs

1. What are the advantages of a single leg gantry crane over traditional cranes?

The single leg gantry crane provides portability, flexibility, and a compact design, allowing it to be easily moved and used in different locations without the need for permanent installation.

2. Can the lifting capacity of the crane be customized?

Yes, the lifting capacity of the single leg gantry crane can be customized according to your specific requirements, ensuring it meets your unique lifting needs.

3. Is the crane suitable for outdoor use?

Yes, the single leg gantry crane is designed for both indoor and outdoor applications. Its sturdy construction and weather-resistant materials make it suitable for various environmental conditions.

4.Why choose single leg design?

Saves 30% on installation! One side runs on ground rails, the other hooks to existing workshop beams. A Turkish shipyard cut $42k in construction costs.

5.What’s the max weight it lifts?

80 tons standard, but our 5-10 ton models are most popular. Brazilian warehouses move 200+ pallets daily with 5-ton units.

6.Can it work in rain/snow?

IP55 motors handle downpours. Add full weatherproof controls (+$2,300) for salty port air.
