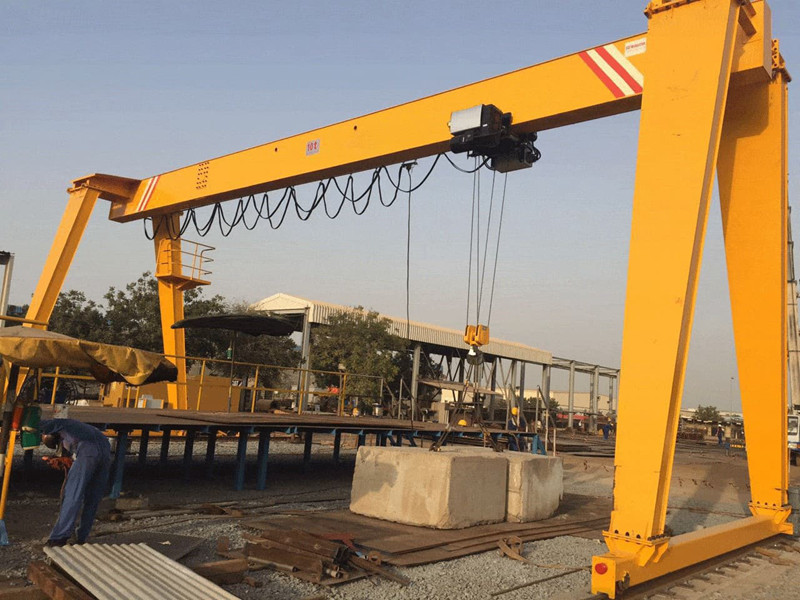

Floor Mounted Gantry Crane Steel Structure
There are two type structure for the main girder and support leg for your choose:
1. Truss type advantage:
a. Small windward side and wind resistance
b. Light dead weight, Low cost
c. Nice appearance
2. Box type advantage:
a. Compact structure, good rigidity, strong lifting capacity, indoor use available
b. Characteristic of slim body, save shipping cost.
Floor Mounted Gantry Crane General Features
1.European Type Floor Traveling Gantry Crane material:Q235,Q345B/Q345D
2. Strong box type, no-welding joint strong box type, by machine hand, strong and beautiful.
3.Wheelsare vacuum casting byourselves,intermediate frequency quenching
4.Wheels, wire rope, drum, gears, coupling are manufactured by our CNC machines
5.Standard configuration: Nanjing specialNanjing Brand motor or huanghe explosion-proof,top quality in China
High configuration: SEW, ABB, ABM
6.Eletrical equipments: Siemens or Schneider brand
7.Control method:Cabin control,wireless remote control or pendant control,you can choose two of them
(According to your demand to design the gantry crane.)
Floor Mounted Gantry Crane Safety Features
1. Overload protection device
2. Top quality long time bearing polyurethane materials buffer
3. Crane traveling limit switch
4. Voltage lower protection function
5. Emergency stop system
6. Lifting height limit device
Floor Mounted Gantry Crane Specification:
Capacity | (t) | 10 | 20/5 | 32/5 | 50/10 | 75~1000 | ||
Span | (m) | 18~35 | 18~35 | 18～26 | 26～35 | 18～26 | 26～35 | Customized |
Lifting Height | (m) | 10 | 10 | 10 | 12 | 10 | 12 | |
Main Hoist Speed | (m/min) | 0.78-7.8 | 0.6-6 | 0.5-5.2 | 0.4-3.9 | |||
Aux.Hoist Speed | 0.78-7.8 | 0.78-7.8 | 0.78-7.8 | |||||
Cross Travel Speed | 3.3-33 | 3.5-35 | 3.1-31 | 3.6-36 | ||||
Long Travel Speed | 3-30 | 3-30 | 3-30 | 3-30 | ||||
Rail Recommended | P43 | |||||||
Power Source | ||||||||
Floor Mounted Gantry Crane Package
- Main girder, rigid leg, flexible leg, ground beam and other large component covered by rain-proof clothes.
- Other components like electric motor, electric hoist, cable and so on in wooden box.
- Pipe pieces like handrail, ladders are bundled and coat with yellow oil for transportation.
- Some other package methods which will benefit our product will also be appreciated.
Floor Mounted Gantry Crane Delivery
- Delivery time for the crane can be negotiated according to site requirements and our workshop scheme.
Floor Mounted Gantry Crane Shipment
- Dispatch port can be Shanghai Port, Tianjin Port or some other China port suitable for loading of such equipment.
- Bulk cargo vessel will be used for shipment.
- We can recommend our forward to our customer, and the forward appointed by our customer is also appreciated.
……
Your comments or other question, will be much welcome!
FAQ
1. Q: What is the European design principle in gantry cranes?
A: The European design principle in gantry cranes focuses on optimizing structural integrity, minimizing steel consumption, and maximizing performance. It leverages advanced engineering techniques and innovative manufacturing processes to enhance the overall efficiency and durability of the crane.
2. Q: What are the benefits of using SINOKO floor mounted gantry crane?
A: The benefits of using SINOKO floor mounted gantry crane include enhanced performance and durability, increased efficiency, reduced steel consumption, cost savings, and customization options to suit specific lifting requirements.
3. Q: How does SINOKO reduce steel consumption in their gantry cranes?
A: SINOKO reduces steel consumption in their gantry cranes by employing the European design principle, which optimizes the crane's structural design to achieve a high strength-to-weight ratio. This results in optimized material usage without compromising the crane's strength and reliability.
4. Q: In which industries can SINOKO gantry cranes be used?
A: SINOKO gantry cranes find applications in various industries, including manufacturing, construction, warehousing, and shipbuilding. They are suitable for lifting and moving heavy equipment, machinery, and materials in these industries.
5. Q: What safety measures are incorporated in SINOKO gantry cranes?
A: SINOKO gantry cranes are equipped with safety features such as overload protection, emergency stop buttons, and limit switches to ensure secure operations. Adhering to industry safety standards and conducting regular maintenance and inspections is crucial for safe crane operation.
6. Q: How often should SINOKO gantry cranes be serviced?
A: Regular maintenance and servicing are essential to keep SINOKO gantry cranes in optimal working condition. It is recommended to follow the manufacturer's guidelines and schedule routine maintenance tasks, inspections, and lubrication. The frequency of servicing may vary based on the crane's usage and operating conditions.
7. Q: How does SINOKO gantry crane compare to traditional designs?
A: SINOKO gantry cranes, with their European design principle, offer enhanced performance, reduced steel consumption, and increased cost-effectiveness compared to traditional designs. They incorporate advanced technology and customization options to meet specific lifting requirements, providing businesses with efficient and reliable material handling solutions.
8. Q: Are SINOKO gantry cranes environmentally friendly?
A: Yes, SINOKO gantry cranes contribute to environmental sustainability. The reduced steel consumption in their design results in minimized carbon footprint. By optimizing material usage and implementing eco-friendly practices, SINOKO demonstrates their commitment to environmentally responsible solutions.
9. Q: Can the SINOKO Floor Mounted Gantry Crane be used both indoors and outdoors?
A: Yes, the SINOKO Floor Mounted Gantry Crane is designed for both indoor and outdoor use. Its rail-mounted design allows it to operate on tracks installed on the floor, making it versatile and adaptable to different working environments.
