The mechanical system of the crane is mainly composed of main mechanical mechanisms such as trolleys and long traveling mechanism. The components used in the mechanical system of the crane, such as gear boxes, brakes, couplings, reels, wheels, pulleys, hooks, bearings, etc. The crane specifications and corresponding standards are designed and manufactured to fully comply with EU standards. The overall hoist, end beam, electric control box, and cable drive are all imported from Europe.
The trolley running drive adopts the three-in-one drive mechanism and is equipped with Schneider standard universal variable frequency speed control system. It has hard tooth surface, quiet design, good sealing and no oil leakage. If there is leakage during the warranty period, it will be replaced free of charge.
The trolley journey makes full use of the span distance of the long traveling to maximize the requirements of the use process
The travel mechanism of the trolley has a safety stop device and a buffer device.
Cross wheel material adopts GGG70 ductile iron installation form with boring direct loading wheel structure
The hoisting mechanism adopts three-point adjustable rotation limit, and has the functions of double safety limit and wrong phase protection limit. The trolley running mechanism adopts a cross-bar limit switch, and the limited position switch is well sealed and dustproof;
European Type | |
Condition | New |

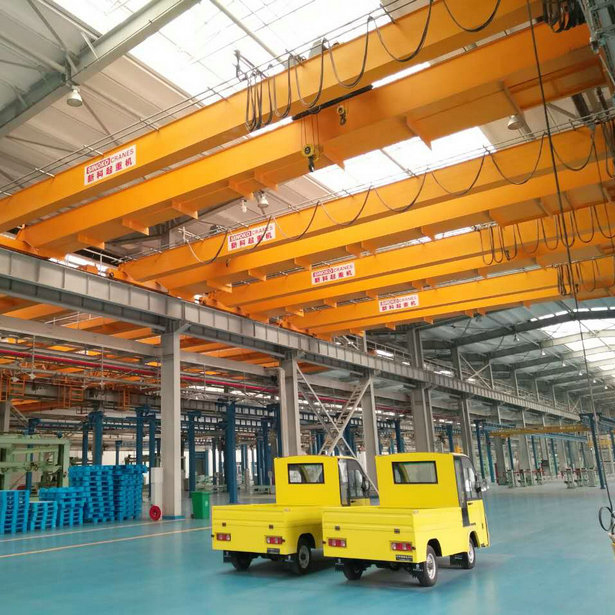

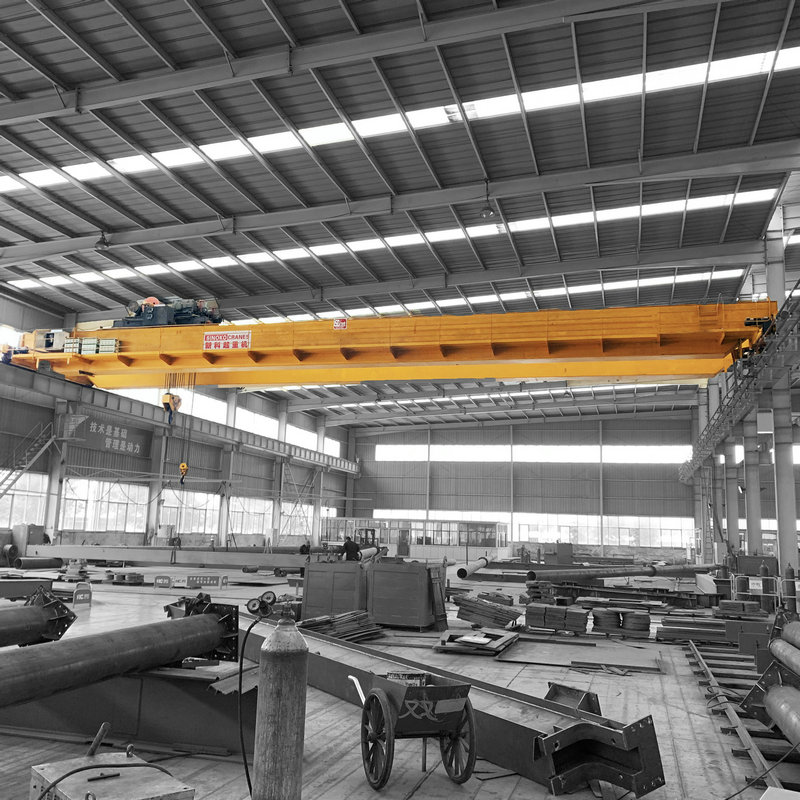

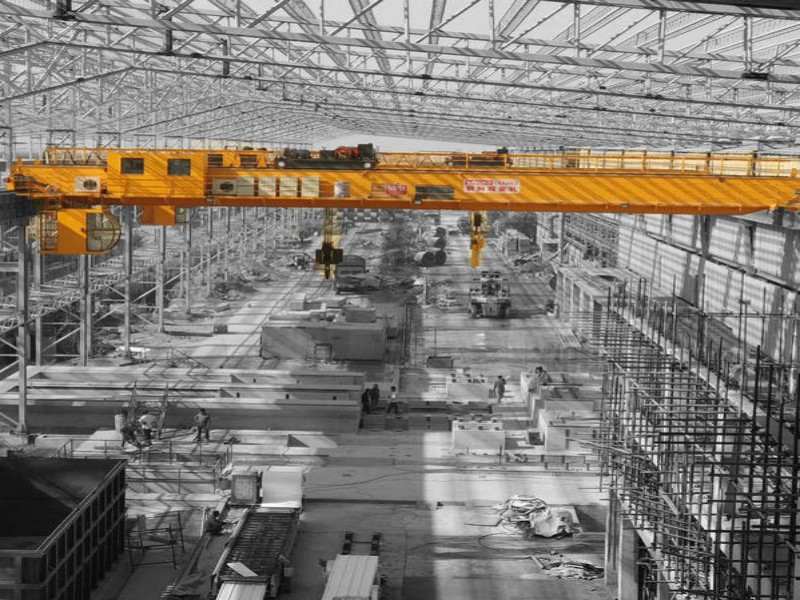

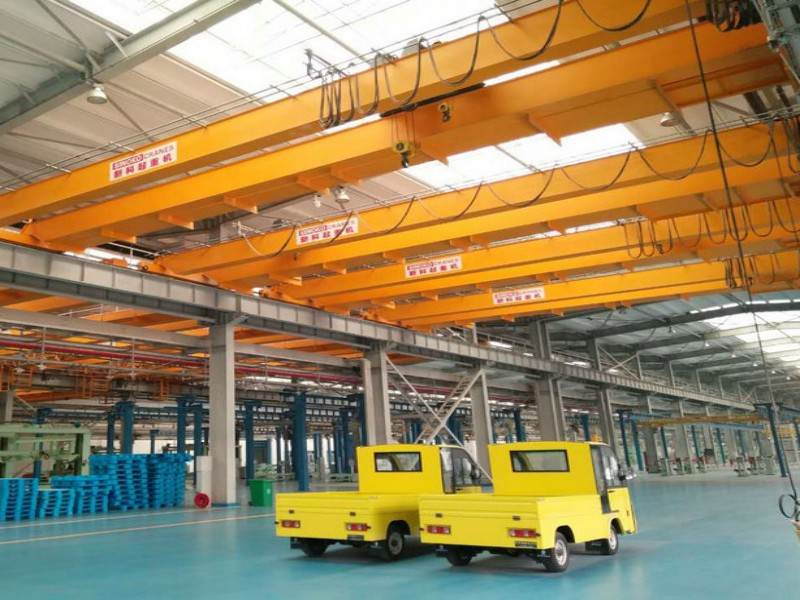

Type | Double Girder Crane |
Span | up to 35 m |
Lifting Speed | 5/0.38 m/min |
Cross Speed | 0~30 M/Min (VVVF) |
Working Class | A5-A8 |
Origin | Henan, China |
Load Capacity | 5t to 350t |
Way to Control | Pendant Push Button / Wireless Remote Controller / Cabin |
Trademark | SINOKO CRANES |
Specification | CE, ISO |
HS Code | 8426112000 |
Motor | ABB Brand |
Reducer | SEW Brand |
