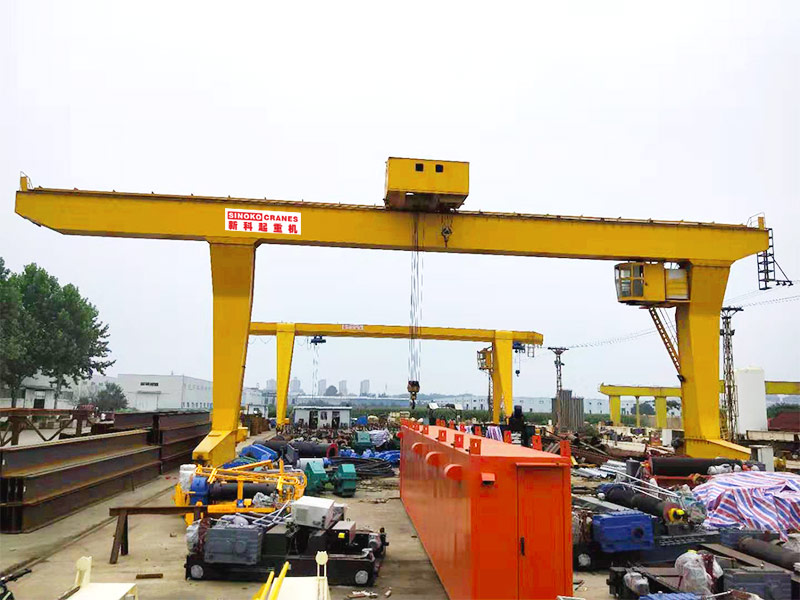

Outdoor cantilever travelling gantry crane is an ideal lifting equipment which has cantilevers in order to increase the crane working area, widely used at outdoors to load and unload materials, such as steel plant, cement plant, precast factory, marble factory, dock, shipyard, etc.

Capacity: Up to 200ton.

Crane beam: single or double.

Span: Up to 35m.

Lifting height: Up to 40m

Crane speed: Single type, dual speed type or variable drive control

Max. Cantilever length: 1/3*crane span for each side.

Trolley mechanism: Hoist or winch type.

Working duty: A3-A8

The customized is available according to crane working conditions.

Share With:


Cantilever Gantry Crane

There are many different models of gantry cranes for you to choose from. According to the beam structure, it can be divided into single girder and double girder gantry cranes. According to the moving method, it can be divided into rail type and rubber tire gantry cranes.

single girder gantry crane

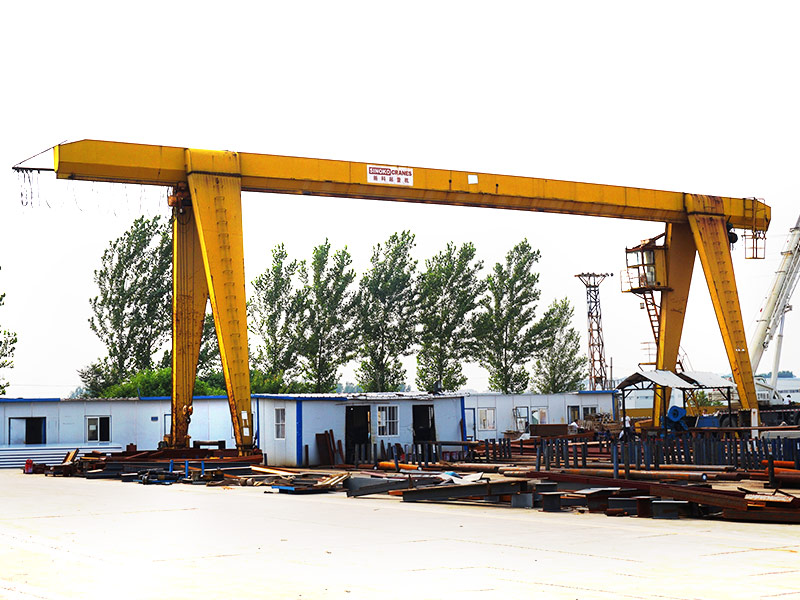

Single girder gantry crane with two cantilever:

Capacity: 0.5~50 tons

Lift height: 3~30m

Span: 3~35m

Work duty: M3~M5

Protection class: IP55

Working temperature: -20~+40℃

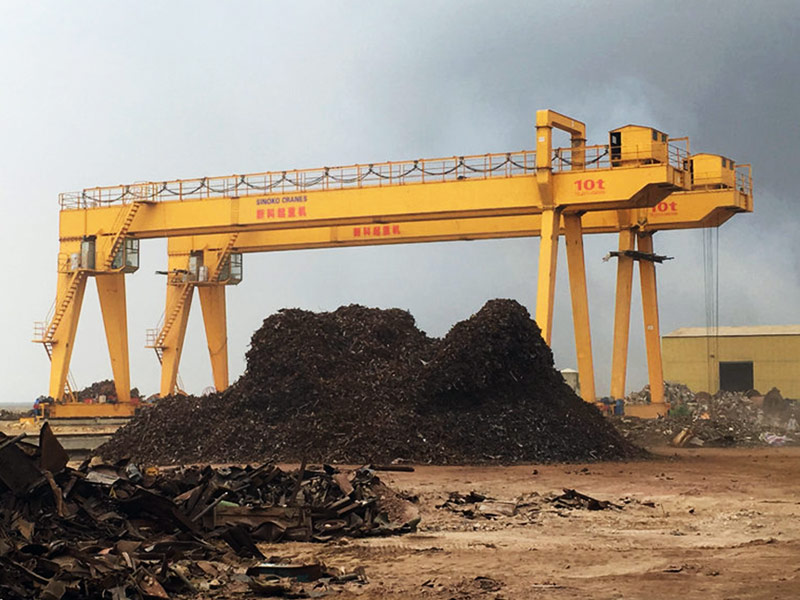

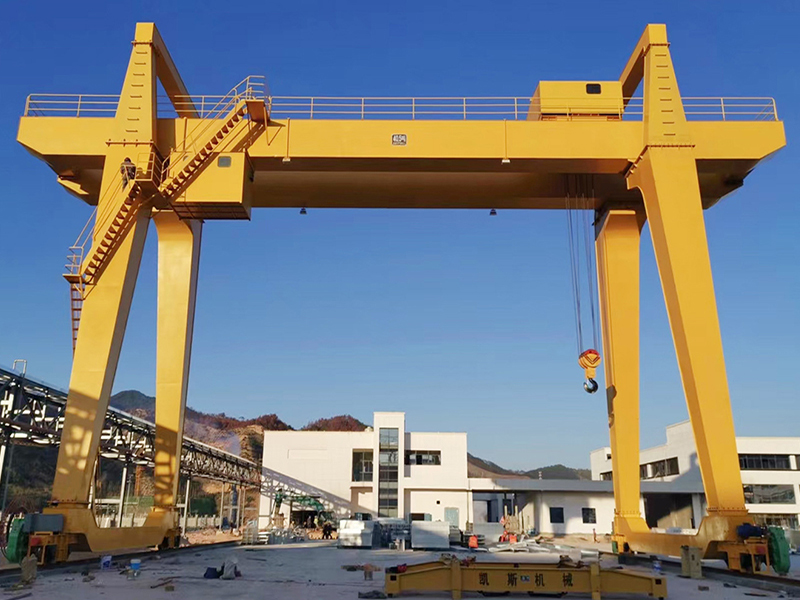

Double girder gantry crane with cantilever:

Capacity: 0.5~50 tons

Lift height: 3~30m

Span: 3~35m

Work duty: M3~M5

Protection class: IP55

Working temperature: -20~+40℃

container gantry crane

RMG container gantry crane

Crane Capacity: 45t

Crane Span: L1 6.5m+25m+L2 5.5m

Lifting Height: 12.5m

Lifting speed: Full Load 2~18 m/min

Reducer Brand: SEW Brand

Long Traveling Speed: 8~80 m/min

Rail Type: P65



1. To increase crane working area and handle the material more conveniently.

2. To improve the factory site utilization

3. To enhance the crane working efficiency

4. To save the cost of foundation construction

5. To be designed flexible according to the crane working conditions.


Crane Capacity

t

5~200

Span

m

18~35

Lifting Height

m

6~40

Lifting Speed

m/min

3.5~12.5 or variable drive control

Trolley Speed

m/min

2.9~44.6 or variable drive control

Crane Speed

m/min

2.9~44.6 or variable drive control

Work Duty

A3~A8

Recommended   Rail Type

P43  ~ QU100

Industrial   Voltage

According   to local condition of crane working site

Note:

  1. The customized type is acceptable.

  2. The cantilever length can be   designed up to 1/3 of the gantry span.


Get a Free Quote

CASE

Optimize heavy mat'l handling with our Double Girder Gantry Crane. Designed for large spans & heavy loads, it enhances efficiency and safety in demanding operations like steel yards, construction sites, and heavy industry. Explore robust lifting solutions today.

40.5T Rail-Mounted Gantry Crane Installation for Port Logistics Efficiency

40.5T Rail-Mounted Gantry Crane Installation for Port Logistics Efficiency

The RMG gantry crane designed and manufactured by Sinokocrane has effectively solved the problems for the customers and reduced their operational costs.

Learn More Get a Quote
5T Portable Gantry Crane Deployment for Australian Equipment Rental

5T Portable Gantry Crane Deployment for Australian Equipment Rental

The portable gantry cranes provided by Sinoko Cranes for the leasing company of Australian customers have significantly increased the number of rentals for the customers and enhanced the revenue of their companies.

Learn More Get a Quote
Installation of 3T Portable Gantry Crane for Thai Manufacturing Facility

Installation of 3T Portable Gantry Crane for Thai Manufacturing Facility

The 3 ton portable small gantry crane specially designed by Sinokocranes for Thai customers has significantly reduced the production costs for the customers and enhanced their production efficiency.

Learn More Get a Quote

FAQs

1. Q: What is the European design principle in gantry cranes?

A: The European design principle in gantry cranes focuses on optimizing structural integrity, minimizing steel consumption, and maximizing performance. It leverages advanced engineering techniques and innovative manufacturing processes to enhance the overall efficiency and durability of the crane.

2. Q: What are the benefits of using SINOKO floor mounted gantry crane?

A: The benefits of using SINOKO floor mounted gantry crane include enhanced performance and durability, increased efficiency, reduced steel consumption, cost savings, and customization options to suit specific lifting requirements.

3. Q: How does SINOKO reduce steel consumption in their gantry cranes?

A: SINOKO reduces steel consumption in their gantry cranes by employing the European design principle, which optimizes the crane's structural design to achieve a high strength-to-weight ratio. This results in optimized material usage without compromising the crane's strength and reliability.

4. Q: In which industries can SINOKO gantry cranes be used?

A: SINOKO gantry cranes find applications in various industries, including manufacturing, construction, warehousing, and shipbuilding. They are suitable for lifting and moving heavy equipment, machinery, and materials in these industries.

5. Q: What safety measures are incorporated in SINOKO gantry cranes?

A: SINOKO gantry cranes are equipped with safety features such as overload protection, emergency stop buttons, and limit switches to ensure secure operations. Adhering to industry safety standards and conducting regular maintenance and inspections is crucial for safe crane operation.

6. Q: How often should SINOKO gantry cranes be serviced?

A: Regular maintenance and servicing are essential to keep SINOKO gantry cranes in optimal working condition. It is recommended to follow the manufacturer's guidelines and schedule routine maintenance tasks, inspections, and lubrication. The frequency of servicing may vary based on the crane's usage and operating conditions.

7. Q: How does SINOKO gantry crane compare to traditional designs?

A: SINOKO gantry cranes, with their European design principle, offer enhanced performance, reduced steel consumption, and increased cost-effectiveness compared to traditional designs. They incorporate advanced technology and customization options to meet specific lifting requirements, providing businesses with efficient and reliable material handling solutions.

8. Q: Are SINOKO gantry cranes environmentally friendly?

A: Yes, SINOKO gantry cranes contribute to environmental sustainability. The reduced steel consumption in their design results in minimized carbon footprint. By optimizing material usage and implementing eco-friendly practices, SINOKO demonstrates their commitment to environmentally responsible solutions.

9. Q: Can the SINOKO Floor Mounted Gantry Crane be used both indoors and outdoors?

A: Yes, the SINOKO Floor Mounted Gantry Crane is designed for both indoor and outdoor use. Its rail-mounted design allows it to operate on tracks installed on the floor, making it versatile and adaptable to different working environments.
