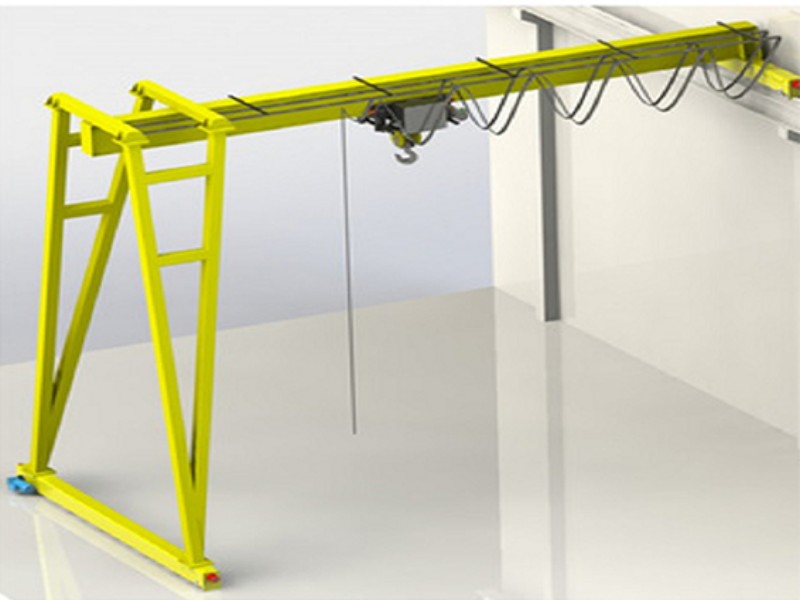

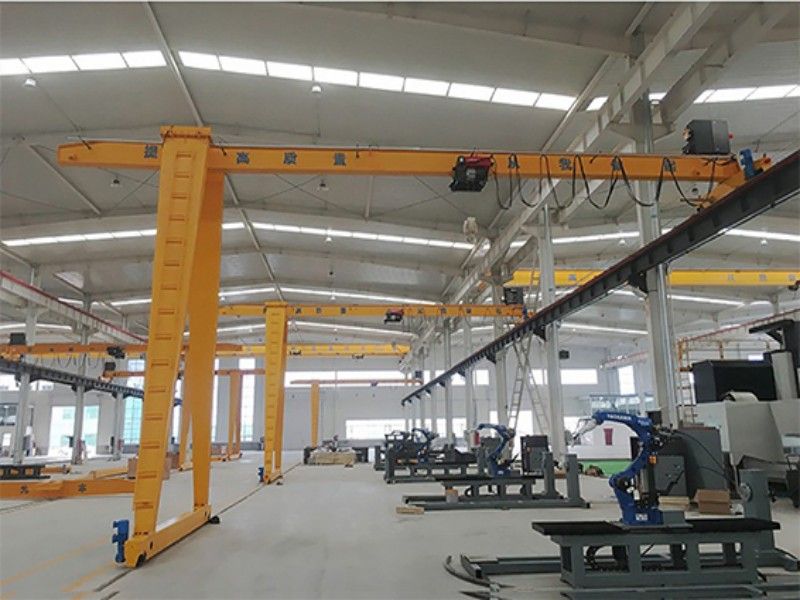

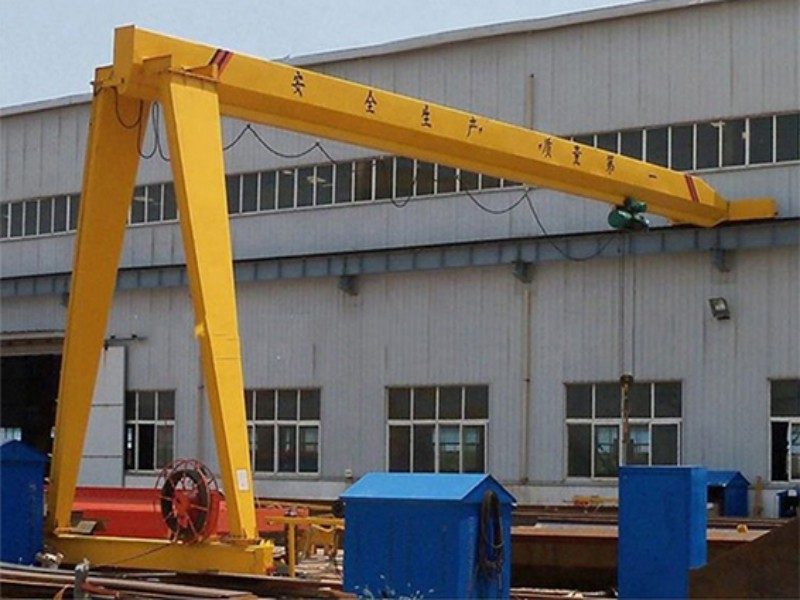

Semi-gantry Crane has a special design structure to suit various crane work situation. It can be single girder and double girder, the two ends connections are different, one side is connected and supported by the crane gantry leg travel on the ground mounted rails, another side is connected and supported by an end carriage travel on the overhead track.
Compare to the standard gantry crane, it will save one side support gantry leg, not only reduce the cost, also can expand crane effective work space in some limited workshops.
The crane is suitable for indoor and outdoor use, under the lifting hook, there are different lifting tools to choose, such as grab bucket, electromagnet and other lifting tools.
Features
1) Compact structure and high efficiency work.
2) Maintenance free design.
3) Disc electromagnet brake.
4) Schneider brand electric panel.
5) Standard safety monitor unit to meet the real time monitor during the whole crane working.
6) Adopt the use 2160N/mm² tensile strength galvanized wire rope.
7) The load limit sensor is set at the fixed end of the wire rope, with sensitive triggering, light load weighing accuracy of ±5%, heavy load weighing accuracy of ±2%, safe and reliable, and easy to maintain.
8) Lifting and travelling limit switches; Emergency Stop; Loss voltage protection; Grounded protection; Overload protection; Short circuit protection; Overheating protection; Over-speed protection; Over current protection; Faulted phase protection…
Specification
Loading capacity | 0.5 ~ 20t |
Lifting height | 3 ~ 30 m or customized |
Lifting speed | Single speed: 3 ~ 8 m/min; or customized Variable frequency speed: 1 ~ 10 m/min; or customized |
Span | 3~35 m |
Lifting mechanism | wire rope hoist or electric chain hoist |
Working class | A3 ~ A5 |
Working temperature | -20 ~ +40 ℃ |
Power supply | AC-3Phase-220//230380/400/415/440V-50/60Hz |
Control way | Ground handle control(Push button),wireless remote control,cabinet control |
Application area | Factory,workshop,warehouse,power station,logistic,etc. |
Painting color | Customized |
Motor protection class | IP54 IP55 IP65 |
CASE
Discover how our BMH Type Semi-Gantry Cranes with Electric Hoists have been successfully implemented in diverse projects. From optimizing space in workshops to improving efficiency in warehouses, explore how our custom solutions can elevate your lifting operations and meet your unique needs.
Pakistan Scrap Steel Dumping Container Gantry Crane Project Case
The Sinoko crane, leveraging years of experience and outstanding technology, designed a container gantry crane for customers, successfully solving the problem of transporting scrap steel for them.
Learn More Get a Quote
40.5T Rail-Mounted Gantry Crane Installation for Port Logistics Efficiency
The RMG gantry crane designed and manufactured by Sinokocrane has effectively solved the problems for the customers and reduced their operational costs.
Learn More Get a Quote
5T Portable Gantry Crane Deployment for Australian Equipment Rental
The portable gantry cranes provided by Sinoko Cranes for the leasing company of Australian customers have significantly increased the number of rentals for the customers and enhanced the revenue of their companies.
Learn More Get a QuoteFAQs
The BMH Type Semi-Gantry Crane is a versatile lifting solution that combines a semi-gantry structure with an electric hoist, designed to handle heavy loads in limited space, often used in workshops, warehouses, and factories for efficient material handling.
This crane features a single rail-mounted gantry on one side and a fixed support on the other, with an electric hoist for precise load lifting. It’s designed for operations where a full gantry crane might not fit, offering flexibility and efficient load movement in constrained environments.
The BMH Type Semi-Gantry Crane offers cost-effective solutions with reduced installation space, flexibility in operation, and ease of movement. The electric hoist ensures smooth and controlled lifting, while the semi-gantry design allows for use in narrow or limited areas.
Yes, the BMH Type Semi-Gantry Crane is built for both indoor and outdoor use. With its durable construction and weather-resistant features, it’s perfect for factories, construction sites, and open-air environments where heavy lifting is required.
Yes, Sinoko Cranes offers customization options to suit specific operational needs, including hoist capacity, lifting height, span length, and control options. Customization ensures the crane meets the exact demands of your workspace and workload.
The BMH Type Semi-Gantry Crane includes essential safety features like overload protection, emergency stop functions, limit switches, and high-quality control systems, ensuring secure and smooth operation even in demanding environments.
