* Because semi gantry cranes ride on the ground rather than on overhead runways, they only need one runway structure.

* Sinokocranes's semi gantry crane don't need concrete foundations.

* Our semi gantry crane installation is fast and simple.

* Depending on the environment and application, gantry cranes can sometimes provide the same material handling capabilities as a comparable bridge crane system, but with a significant cost savings.

* Simple and compact structure

* Llight weight

* Steady performance

* Easy maintenance

* Less wastage


Share With:

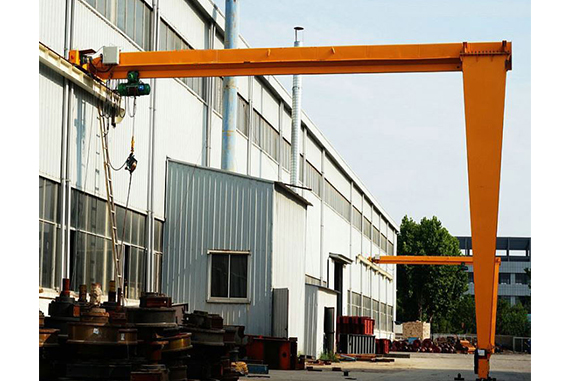

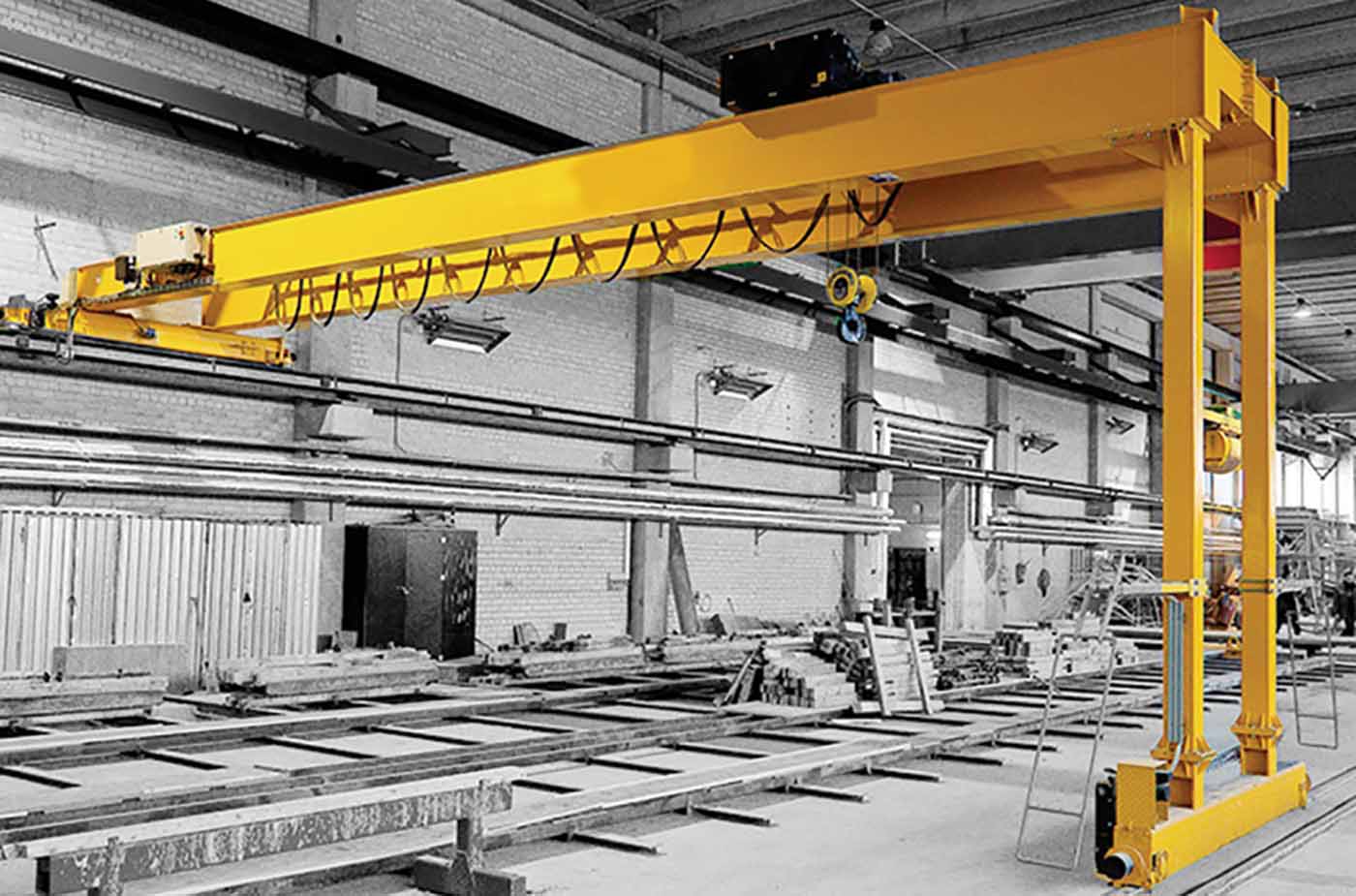

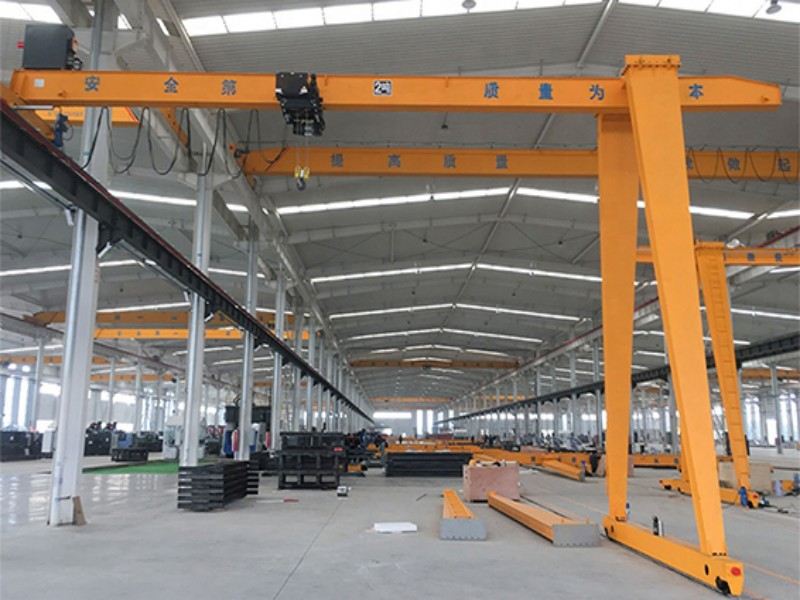

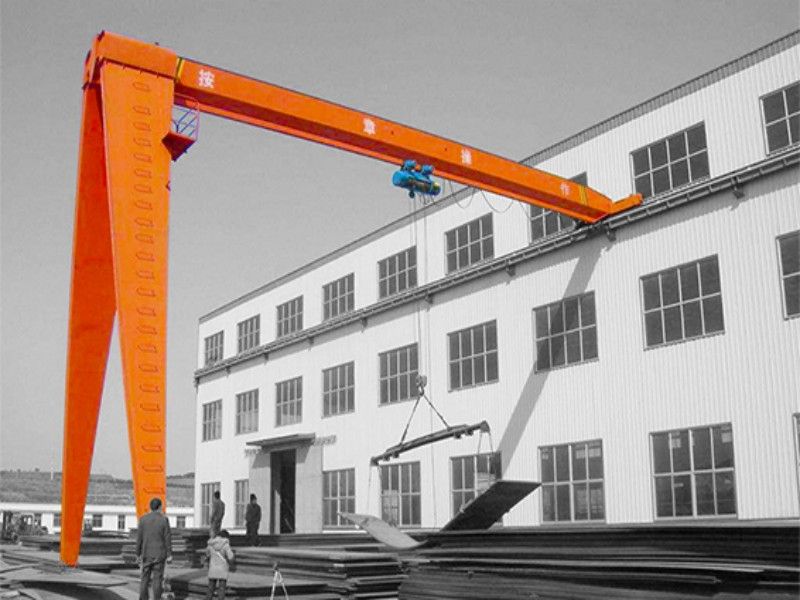

Single Girder Semi Gantry Crane

semi gantry crane manufacturers

BMH model single girder semi gantry crane is consisted of gantry frame, main beam, legs (two sets), slide sill, lifting mechanism, travelling mechanism, and electric box. Sinokocranes semi gantry crane is widely used in workshop, storage, port and hydroelectric power station and some other outdoor place especially suitable for working in the production and stockpiling of iron and steel, in shipyards, ports, forestry products manufacturing and stocking, marble firms, Locomotive workshop, marble granite goods yard, especially in many areas of manufacturing, stock and transportation.

Sinokocranes single girder semi gantry crane is usually equipped with CD1, type and MD1 type hoist and is in medium and light duty.

Feature


semi gantry crane detail

Safety is the most important issue for semi gantry crane manufacturers. To ensure the safety, the following safety devices are equiped in Sinokocranes.
1.Crane traveling limit switch
2.Weight overload protection device
3.Lifting height limit device
4.Voltage lower protection function
5.Phase sequence protection function
6.Emergency stop function
7.Rain cover for outside hoist, driving units, electrical cubicle.
8.Warning indicator: flashing lights and warning sound.
9.Wireless infra-detector for anti-collusion


Specification


Loading capacity
0-20t
Lifting height
Up to 22 m
Lifting speed
8m/min or customized stepless control
Span
29 m
Lifting mechanism
CD/MD hoist
Working class
A5 or as customer's need
Working temperature
-20 ~ 40 ℃ or as require
Power supply
AC-3Phase-220/230/380/400/415/440V-50/60Hz or as require
Control voltage
DC -36 / 48V
Motor protection class
IP55
Control way
Cabin, wireless remote, pendant push button.
Safety device
Buffer, current overload protection, overload device, power failure protection
Application area
Factory,workshop inside wall and ouside wall, warehouse, locomotive workshop, water power plant, shipping yard, goods yard, logistics, port, logstic, etc.
Painting color
Yellow, red or customized



Get a Free Quote

CASE

Discover how Sinoko gantry cranes solve real-world lifting challenges in ports, factories, and construction sites worldwide. See our equipment reliably moving heavy loads where others can't.

5T Portable Gantry Crane Deployment for Australian Equipment Rental

5T Portable Gantry Crane Deployment for Australian Equipment Rental

The portable gantry cranes provided by Sinoko Cranes for the leasing company of Australian customers have significantly increased the number of rentals for the customers and enhanced the revenue of their companies.

Learn More Get a Quote
40.5T Rail-Mounted Gantry Crane Installation for Port Logistics Efficiency

40.5T Rail-Mounted Gantry Crane Installation for Port Logistics Efficiency

The RMG gantry crane designed and manufactured by Sinokocrane has effectively solved the problems for the customers and reduced their operational costs.

Learn More Get a Quote
Pakistan Scrap Steel Dumping Container Gantry Crane Project Case

Pakistan Scrap Steel Dumping Container Gantry Crane Project Case

The Sinoko crane, leveraging years of experience and outstanding technology, designed a container gantry crane for customers, successfully solving the problem of transporting scrap steel for them.

Learn More Get a Quote

FAQs

1. What makes semi-gantry cranes different from full gantries?

Only one runway structure needed - rides on ground rails (no overhead runways). Saves 40%+ installation costs with no concrete foundations required.

2. Where are they typically used?

Ideal for workshops, warehouses, ports, and outdoor areas - especially near walls (e.g., steel plants, shipyards, granite yards).

3. What’s the maximum lifting capacity?

Handles up to 20 tons with 22m lifting height. Customizable hoist options (CD1/MD1 models).

4. How fast does it install?

Simple modular assembly - operational in days vs. weeks. No pouring concrete or complex structures.

5. Can I customize controls?

Choose cabin, wireless remote, or pendant control. Stepless speed adjustment available.

6. Why choose Sinoko?

15+ years engineering expertise. Custom colors, spans (up to 29m), and voltage options (220V-480V).
