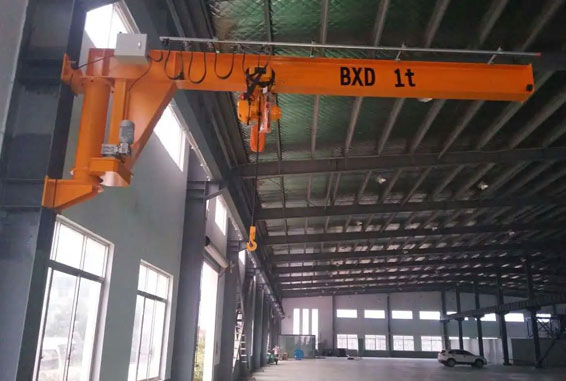

BX-type Wall mounted jib crane is a kind of small and medium-sized lifting equipment.

Capacity: up to 5 ton

Arm length: up to 10 m

Lifting height:up to 20m

Work duty: M3-M5

Rotation angle: 120-180°

Raged voltage: 220V~690V, 50-60Hz, 3ph AC

Crane control mode: Floor control / Remote control

Share With:


Wall Mounted Jib Crane

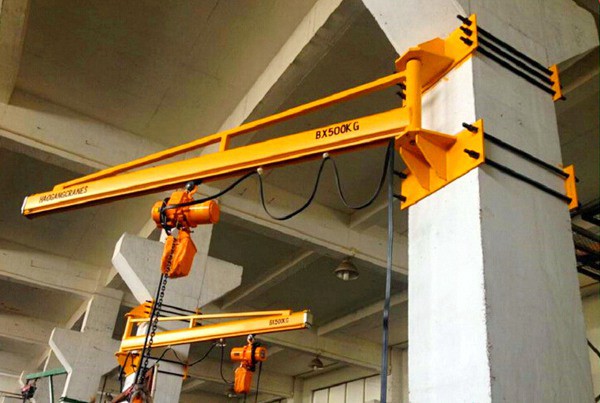

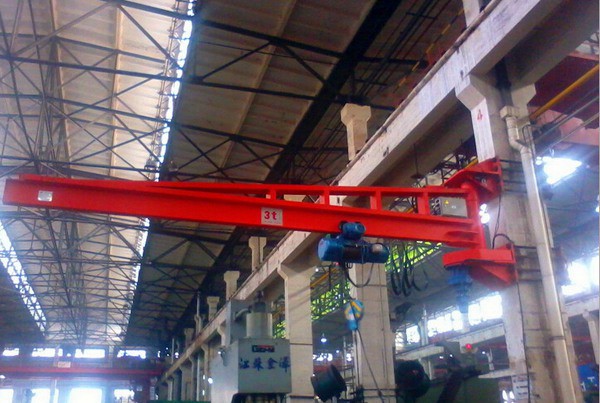

Wall mounted jib crane refers to the lifting equipment that does not use the column but directly supports the wall. The wall is the cement beam or steel structure beam brought by the factory, so the wall mounted jib crane is more saving space and cost, and is more suitable for the workshop with small space.

Sinoko jib cranes can be individually tailored for your application.

Wall Mounted Jib Crane Features

  • Jib arm is made of I-beam or weld steel box, depends on capacity and duty group.

  • Bolted end connection plate for rapid mounting.

  • Safety anchoring with ribbed pillar base.

  • Low-build profile section jib arm for optimized hook height.

  • Power supply via slip-rings for infinite 200 degree slewing.

  • Complete with electrical systems including lockable mains switch and power supply to the hoist.

  • Electrical equipment with class F insulation, protection type IP 54.

  • Operated from floor level via pendant controls.

  • Working with CD/MD electric hoist or chain hoist.

Wall Mounted Jib Crane Specification

Capacity(t)
0.5t~5t as per requirements
Slewing Radius(m)
2m~10m, or other special radius
Lifting Speed(m/min)
8/0.8m/min (designed as per requirements)
Trolley Speed(m/min)
2 0m/min(designed as per requirements)
Slewing Speed(m/min)
0.8r/min (or designed as per requirements)
Working Duty
A3~A5 depends on application
Power supply
380V,50Hz or other

With 10+ years of sales experience and 3000+ projects we've done, both end-users and agents have gained and benefited from our cooperation. Please confirm the lifting tonnage, span, lifting height and workshop length you need to get an accurate quote.


Get a Free Quote

FAQs

What is a wall mounted jib crane used for?

Wall mounted jib crane is used to lift and move materials along a fixed arc in workshops, warehouses, and assembly areas. It is ideal where floor space is limited, as it is mounted on existing columns or walls.

What is the lifting capacity of your wall mounted jib cranes?
Our wall mounted jib cranes have lifting capacities ranging from 0.5 tons to 5 tons, customized to meet your specific operational needs.
How does a clamshell bucket work with a crane?

Clamshell buckets are attached to cranes via hooks or specialized lifting attachments. They open and close using mechanical or hydraulic systems to grab and release materials efficiently.

What is the rotation range of a wall mounted jib crane?

Wall mounted jib cranes typically have a rotation range up to 180 degrees, depending on the installation location and surrounding clearance.

How is a wall mounted jib crane installed?

It is installed by securely bolting the crane bracket onto strong existing building columns or walls capable of withstanding the applied loads.

Can a wall mounted jib crane be used with an electric hoist?

Yes, our wall mounted jib cranes are compatible with electric chain hoists and wire rope hoists, providing efficient and easy lifting operations.

How do I choose between a wall mounted and a floor mounted jib crane?

Choose a wall mounted jib crane if you have strong existing structural support and want to save floor space. Choose a floor mounted jib crane for full 360° rotation and independent installation without relying on building structures. Contact our engineers for detailed guidance.


Recommended Matching Products

We offer pillar jib cranes, electric hoists, and rail systems to improve your lifting efficiency.

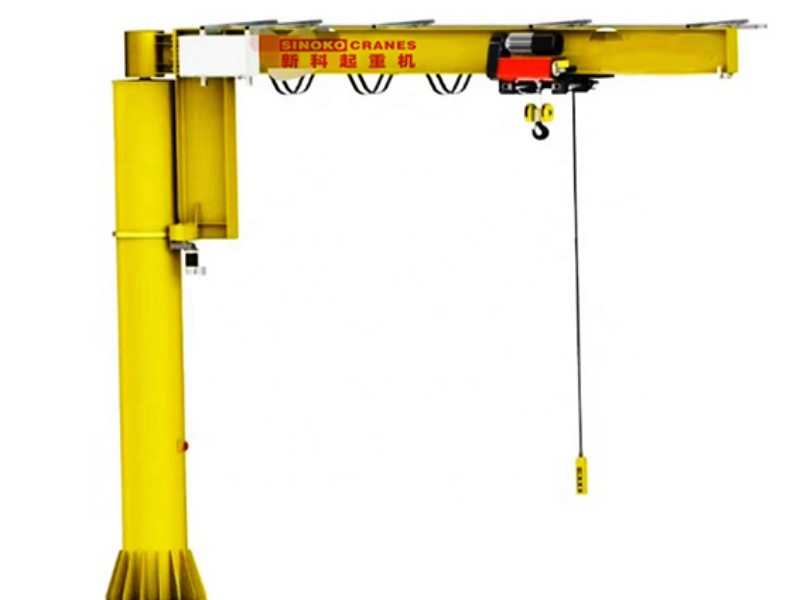

Pillar Mounted Jib Crane

Pillar Mounted Jib Crane

Pillar mounted jib crane is a small and medium lifting equipment. It has the advantages of good adaptability, flexible operation, high efficiency, saving costs, etc. Get free quote.

Learn More                            Get a Quote

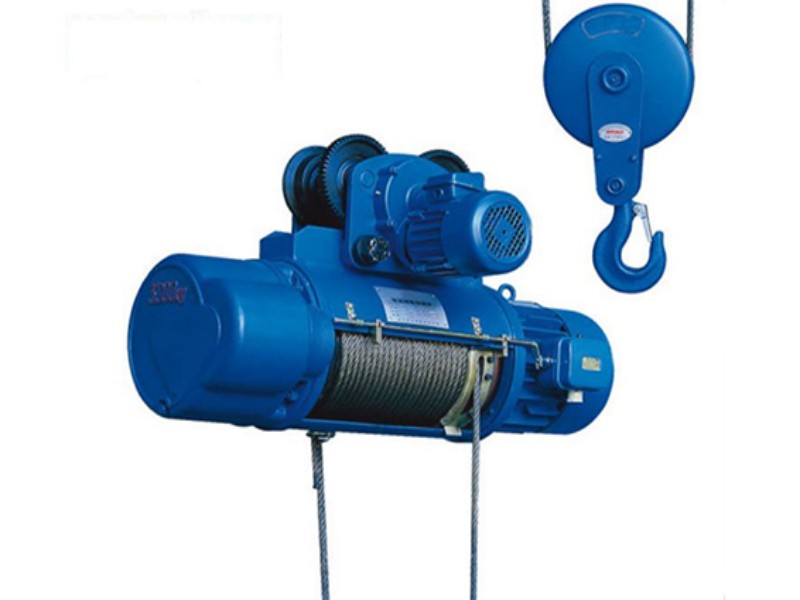

CD MD Electric Wire Rope Hoist
