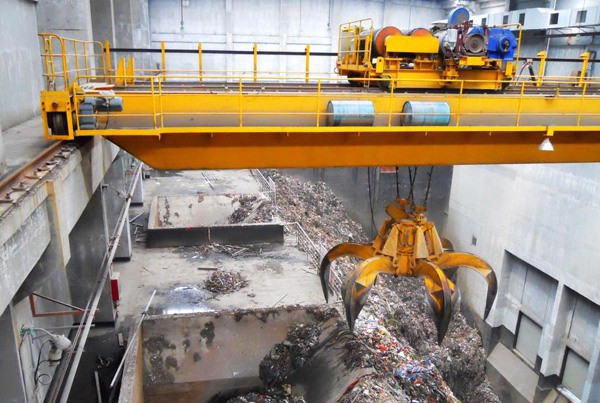

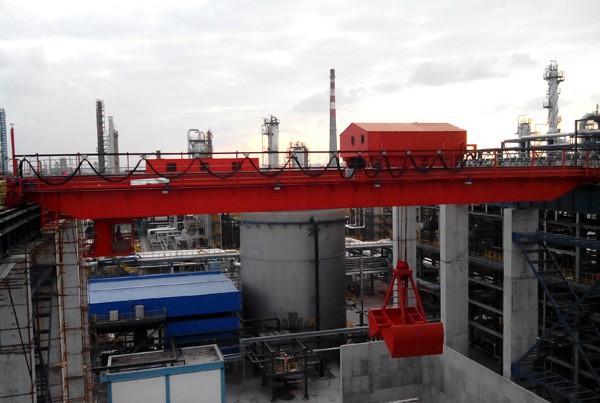

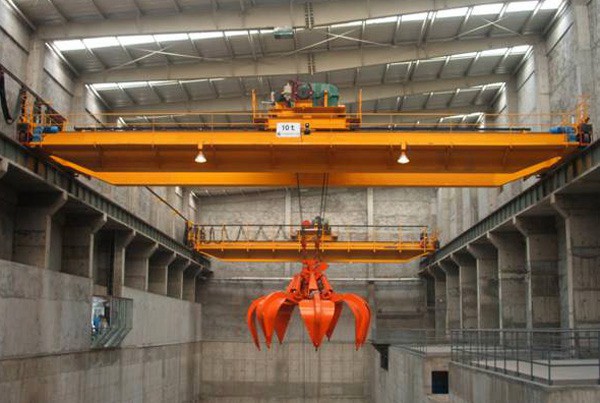

A scrap grab overhead crane is a powerful and versatile machine used to lift and move scrap metal or other materials. It is usually mounted on an overhead track and can be operated by a single person. The crane has a long arm with a grab attachment at the end that allows the operator to grab and move large pieces of material. This type of crane is commonly used in scrap yards, demolition sites, and other industrial applications.
Scrap Grab Overhead Crane Features
The features of a scrap grab overhead crane typically include a powerful motor, a high lift capacity, and a grab attachment at the end of a long arm. It is also designed with safety features such as an interlock system that prevents the crane from operating when the grab is not securely attached to the material. Additionally, many scrap grab overhead cranes are designed with modern control systems that allow for precise and efficient operation.
To meet the particular and harsh working environment in the steel mill, the scrap handling cranes are with the various particular features as the following:
1. Heavy duty reinforcement end-carriages and bogies with surface-hardened wheels.
2. Power suppling lines and signal cables designed via festoon system, which is attached to the overhead eot crane girder.
3. Special designed heavy-duty trolley
4. Scrap handling crane is easy to be-maintained.
5. Crane bridges are made of reinforced box-style steel structuring.
6. Electric trolleys are equipped with devices to combat deflection and vibration
7. Ergonomic operator cabin controls
8. Heavy-duty hook blocks are used for load handling with high safety
Scrap Grab Overhead Crane Specification
| Lifting Capacity | 5 | 10 | 16 | 20 | |||
| Max.Lifting Height | m | 20 | 18 | 22 | 26 | ||
| Span | m | 10.5-31.5 | |||||
| Working System | A5-A7 | ||||||
| Speed | Trolley | Hoisting | m/min | 40.1 | 40.7 | 41.8 | 48.6 |
| Travelling | 44.6 | 45.7 | 43.2 | 43.2 | |||
| Bridge travelling | 93.7-114.4 | 112.5-101 | 98-87.3 | 87.3 | |||
| Weight | Trolley | 5.2/5.9 | 8.2/9.1 | 14.8/15.9 | 19.3/20.4 | ||
| Total | Indoor | 19.9-41.3 | 26.5-50.4 | 47.3-67.9 | 56.1-75.6 | ||
| Outdoor | 20.7-42.1 | 27.4-51.2 | 48.5-69 | 57.3-76.8 | |||
| Grab | Volume | m 3 | 2.5-0.75 | 5-1.5 | 8-2.5 | 10--3 | |
| Dead weight | kg | 2632-2546 | 4800-4793 | 7841-8305 | 9812-10123 | ||
| Rail recommended | 43kg/m, QU70 | ||||||
| Power Source | 3Phase AC 380V 50HZ (As your demand) | ||||||
FAQs
Scrap grab overhead crane is used for lifting, grabbing, and transporting bulk scrap materials such as steel scraps, waste metal, and other loose materials in steel mills, recycling plants, and scrapyards.
Yes, we provide complete installation guidance, on-site commissioning, operator training, and after-sales technical support to ensure smooth and safe crane operation.
Standard power supply is 380V/50Hz/3P, but we can customize the voltage and frequency according to your country’s standards.
