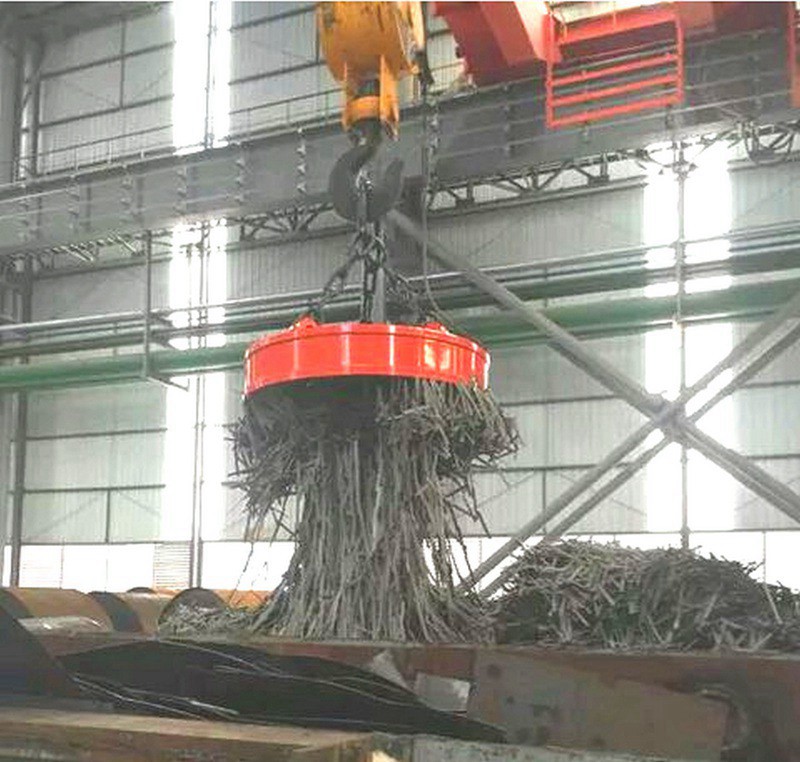

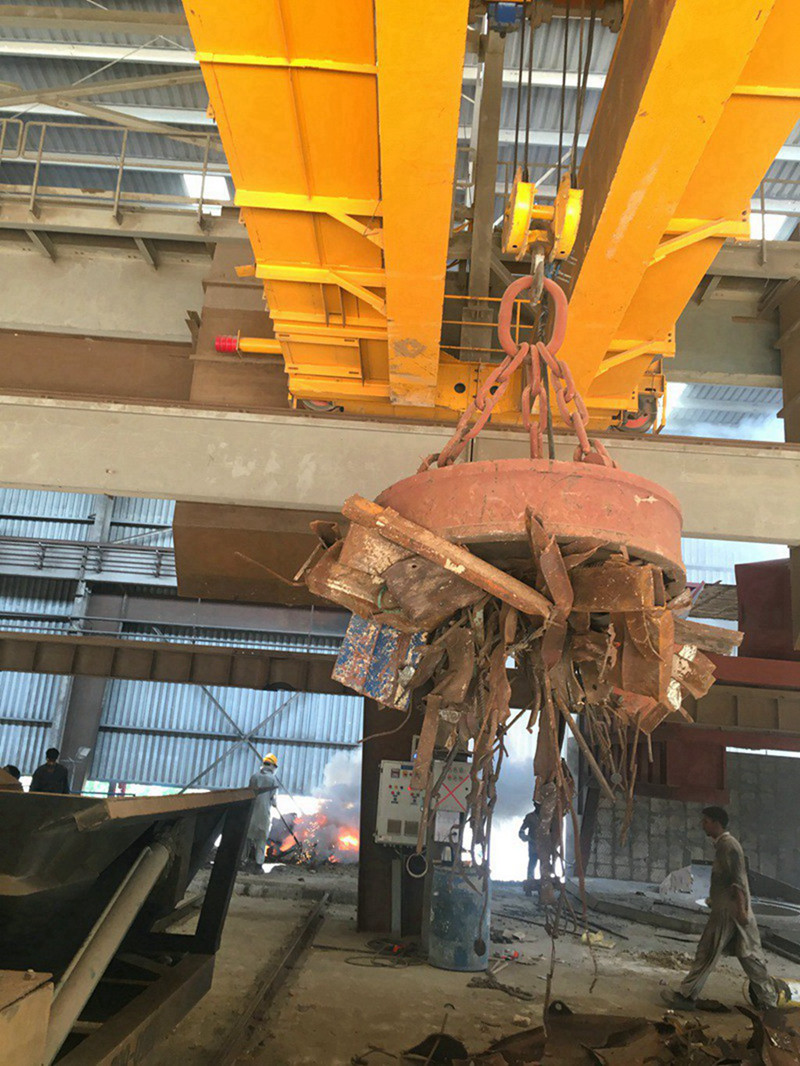

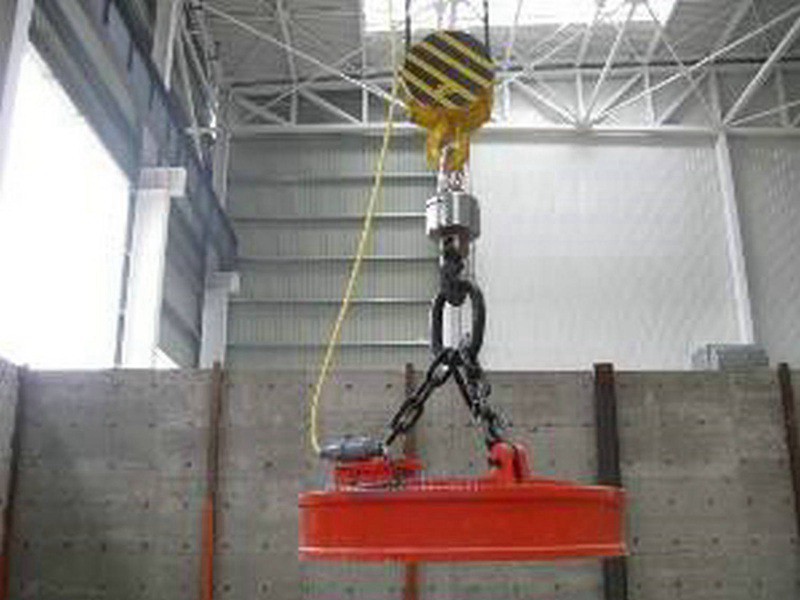

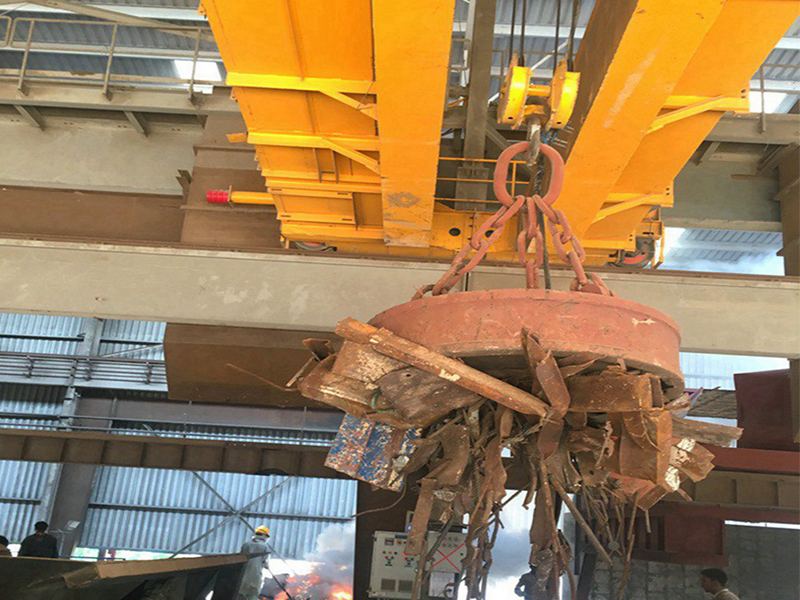

Sinokocrane is focusing on Steel scrap magnet crane, magnet charging crane, scrapyard magnet crane for many years. We have been doing professional design of magnet crane due to the harsh work condition, High temperature Environments, High Dust, Heavy work requirements etc.
Normally the steel scrap magnet overhead crane working duty is A5~A7. Due to different working efficiency requirements, we will make different proposal for customer.
Features
1.Special magnetic circuit design .It has large space and magnetism density.
2.Good insulation structure. The insulation treatments adopt the vacuum drying & glue filling, which has improved the electrical and mechanical performance of the coils
3.The constant control voltage. It can further improve the lifting capacity if changing to adopt the control mode of over excitation.
4.High temperature type can work in the high temperature. It adopts unique method of heat protection.
5.Simple and convenient installation, operation and maintenance
6.Long working life ,simple structure.
7.High Efficiency.
8. Back battery to avoid risk when the power is suddenly off.
Specification
Model | Current in cold state ( A) | Power in cold state (KW) | Lifting capacity (kg) | Weight (kg) | Overall dimension (mm) | Control Equipment | Cable reel & Cable Connector | ||||||
Single steel ball | Packed steel ingots | Packed steel scraps | A | B | C | D | E | ||||||
MW5-70L/1 | 15 | 3.3 | 2500 | 380/200 | 120/100 | 490 | 700 | 800 | 160 | 90 | 30 | STML-4E-C | JTA75-15-2 DL-102 |
MW5-80L/1 | 18 | 3.96 | 3000 | 480/250 | 150/130 | 620 | 800 | 800 | 160 | 90 | 30 | STML-4E-C | |
MW5-90L/1 | 26.6 | 5.85 | 4500 | 600/400 | 250/200 | 800 | 900 | 1090 | 200 | 125 | 40 | STQL-7E-C | |
MW5-110L/1 | 35 | 7.7 | 6500 | 1000/800 | 450/400 | 1350 | 1100 | 1140 | 220 | 150 | 45 | STQL-9E-C | JTA100-15-2 DL-102 |
MW5-120L/1 | 45.5 | 10 | 7500 | 1300/1000 | 600/500 | 1700 | 1200 | 1180 | 220 | 150 | 45 | STQL-14E-C | |
MW5-130L/1 | 54 | 11.9 | 8500 | 1400/1100 | 700/600 | 2060 | 1300 | 1240 | 250 | 175 | 50 | STQL-14E-C | |
MW5-150L/1 | 71.2 | 15.6 | 11000 | 1900/1500 | 1100/900 | 2830 | 1500 | 1250 | 350 | 210 | 60 | STQL-19E-C | |
MW5-165L/1 | 75 | 16.5 | 12500 | 2300/1800 | 1300/1100 | 3200 | 1650 | 1590 | 370 | 230 | 75 | STQL-19E-C | |
MW5-180L/1 | 102.4 | 22.5 | 14500 | 2750/2100 | 1600/1350 | 4230 | 1800 | 1490 | 370 | 230 | 75 | STQL-25E-C | JTA200-15-2 DL-202 |
MW5-210L/1 | 129 | 28.4 | 21000 | 3500/2800 | 2200/1850 | 7000 | 2100 | 1860 | 400 | 250 | 80 | STQL-32E-C | |
MW5-240L/1 | 154 | 33.9 | 26000 | 4800/3800 | 2850/2250 | 9000 | 2400 | 2020 | 450 | 280 | 90 | STQL-38E-C | |
CASE
Based on their intended use, overhead cranes can be classified into general-purpose cranes, steel mill cranes, and explosion-proof cranes. Each type is designed with specific working environments and load requirements in mind, ensuring safety and efficiency.
Automotive Repair Facility in Russia 5 Ton Workshop Bridge Crane Project Case
The Sinoko crane, a 5-ton bridge crane tailor-made for a Russian customer's auto repair shop, has helped the customer solve the problem of lifting and transportation, improved the customer's work efficiency, and saved the customer's work costs.
Learn More Get a Quote
32T Steel Coil Handling Crane Project Case
Sinoko Crane with years of experience in crane manufacturing and design, the steel coil handling crane has helped customers reduce costs and improve the efficiency of steel coil transportation.
Learn More Get a Quote
Installation of QZ-Type Grab Bucket Bridge Crane Project Case
The Sinoko QZ-Type Grab Bucket Bridge Crane was specially designed for a Brazilian client as a grab bucket crane, which significantly improved the client's work efficiency and received unanimous praise from the client.
Learn More Get a QuoteFAQs
A Steel Scrap Handling Electromagnet Overhead Crane is designed to efficiently lift and move ferrous materials like steel scrap using an electromagnetic system, making it ideal for recycling and metalworking industries.
The electromagnet is powered by electricity and creates a strong magnetic field that securely lifts steel scrap or other ferrous materials, ensuring efficient handling and transportation.
This crane is commonly used in metal recycling, steel manufacturing, and scrap yards, where heavy steel scrap needs to be moved quickly and safely.
The lifting capacity of our Steel Scrap Handling Electromagnet Overhead Crane varies depending on your specific requirements, typically ranging from 1 to 20 tons.
Yes, this crane is designed for both indoor and outdoor applications, making it highly versatile for various work environments.
Regular maintenance includes checking the magnet’s electrical components, inspecting the crane’s structure for wear, and ensuring that the lifting mechanism is functioning properly for optimal performance.
