Electric gantry crane with electric hoist is composed of bridge, support legs, crane traveling organ, electric equipment, strong lifting winch, the frame adopts boxed-type welding mechanism, crane traveling mechanisms are operated in the driver cabin or remote control, Power is supplied by cable or slide wire.

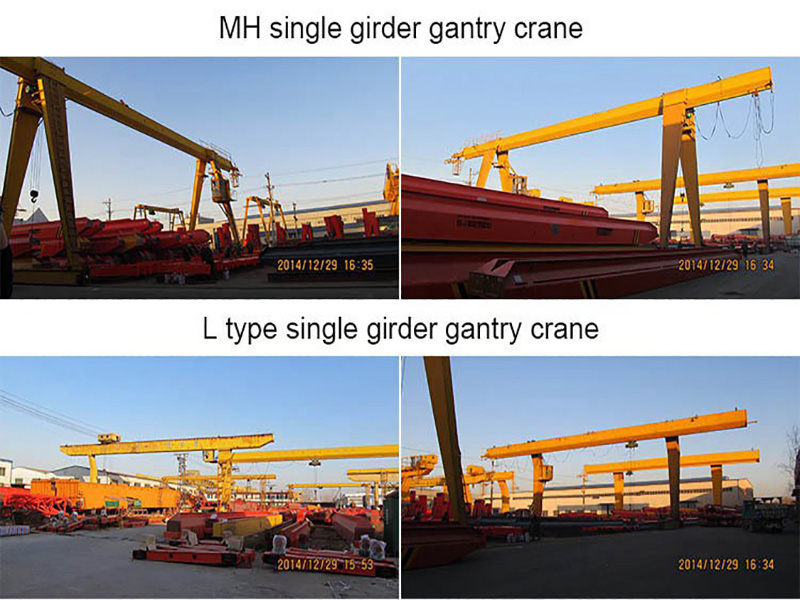

The Sinoko electric hoist gantry crane offers two design types, MH and L type, allowing you to choose the appropriate gantry crane based on your specific site requirements.
L Type Electric Hoist Gantry Crane
This design is suitable for outdoor yards and along railway lines for general loading, unloading, and lifting operations.
The L type design features a lower overall height while maintaining a certain lifting height, resulting in cost savings.
Lightweight, Low Wheel Pressure, and Reliable Performance
MH Type Electric Hoist Gantry Crane
This crane is designed to work with CD1, MD1, and HC type electric hoists. It is a small and lightweight crane that operates on rails. It is suitable for lifting loads ranging from 5 to 20 tons, with spans ranging from 5 to 35 meters. The operating temperature ranges from -20°C to +40°C.
Features
Robust Construction: The Gantry Crane with Electric Hoist is built with high-quality materials and components to ensure durability and long-lasting performance. It can handle heavy loads with ease, providing reliable lifting capabilities.
Electric Hoist: The electric hoist attached to the gantry crane offers precise and controlled lifting. It provides smooth and efficient vertical movement, allowing for accurate positioning of loads.
Customizable Design: We offer customizable options to tailor the Gantry Crane with Electric Hoist to your specific requirements. Whether you need specific lifting capacities, spans, or control systems, our team can design a solution that meets your needs.
Easy Operation: The crane is designed for ease of use, with user-friendly controls and intuitive operation. The operator can efficiently control the lifting and movement of loads, ensuring smooth and precise material handling.
Safety Features: Safety is of utmost importance in crane operations. The Gantry Crane with Electric Hoist incorporates safety features such as overload protection, emergency stop buttons, limit switches, current overload protection system, voltage lower protection function, Top quality long time bearing polyurethane materials buffer, and safety hooks, ensuring safe and secure lifting operations.
Specification
Lifting weight | ton | 3~20 | ||||||
Span | m | 12~30 | ||||||
Lifting height | m | 6/9 | ||||||
Working | Travelling | Ground | m/min | 20 | ||||
Cabin | 20/30/45 | |||||||
Motor | Ground | YSE802-4/0.8*2 | YSE90L-4/1.5*2 | |||||
Cabin | ZDR100-4/1.5*2 | ZDR112L1-4/2.1*2 | ||||||
Reducer | Ld | |||||||
Wheeldia. | mm | Φ270 | ||||||
Electric | Type | CD1 MD1 | ||||||
Lifting speed | m/min | 80.8/8 | ||||||
Travelling speed | 20 | |||||||
Motor | Lifting | ZD41-4/4.5 ZDS10.4/4.5 | ||||||
Travelling | ZDY12-4/0.4 | |||||||
Working class | A3 | |||||||
Steel trackre commended | P24 P38 | |||||||
Power | 380v 50Hz | |||||||
The crane weight | Ground | kg | 6646/8646 | 7630/9430 | 10163/12163 | 11931/13931 | ||
Cabin | kg | 6996/8996 | 7780/9780 | 10513/12513 | 12281/14281 | |||
Max.Wheel pressure | KN | 37/42 | 40/46 | 44/50 | 48/54 | |||
Electric Hoist Gantry Crane Application
Sinoko Electric Hoist Gantry Crane with MH and L type designs has various applications in different industries and work environments. Here are some common applications: Outdoor Yards and Freight Terminals, Construction Sites, Manufacturing and Industrial Facilities, Warehouses and Distribution Centers, Port and Shipyard Operations, Power Plants and Heavy Machinery Handling, and so on. These are just a few examples of the applications of Sinoko Electric Hoist Gantry Crane. Its versatility and flexibility make it suitable for various industries where efficient and reliable lifting and material handling are essential.
Optimize your material handling operations with the reliable Gantry Crane with Electric Hoist. Experience robust construction, precise lifting, and easy operation. Contact us today to learn more about this crane and how it can enhance your lifting capabilities!
Thanks for checking and kindly please tell the main datas.
1. Load capacity: ?
2. Span: ?
3. Lift height: ?
4. Power Voltage: ?
4. Cantilever Length: ?
5. Speed Request:?
6. Control Mode Request: ?
CASE
See how Sinoko electric hoist gantry cranes improve material handling in workshops, warehouses, and job sites - delivering precise positioning, space efficiency, and reliable 3-500 ton lifts.
Pakistan Scrap Steel Dumping Container Gantry Crane Project Case
The Sinoko crane, leveraging years of experience and outstanding technology, designed a container gantry crane for customers, successfully solving the problem of transporting scrap steel for them.
Learn More Get a Quote
40.5T Rail-Mounted Gantry Crane Installation for Port Logistics Efficiency
The RMG gantry crane designed and manufactured by Sinokocrane has effectively solved the problems for the customers and reduced their operational costs.
Learn More Get a Quote
Installation of 10T European-Style Gantry Crane for Pakistani Client by Sinoko Cranes
Struggling with slow manual gates? Sinoko's European gantry crane slashed Pakistan customer's downtime by 64%! Transform your access efficiency – contact us!
Learn More Get a QuoteFAQs
Standard orders ship in 12-14 weeks by sea.
L-type: Shorter height (saves space), perfect for low-clearance warehouses; MH-type: Handles heavier loads (up to 20 tons), ideal for workshopsOur engineers will recommend based on your ceiling height
Yes! Standard models operate at -20°C. Add cold-weather package (+$1,200) for: ✓ Anti-freeze hydraulic fluid ✓ Snow-proof controls ✓ Ice-resistant casters
Minimal footprint: → Width: Fits standard 3m aisles → Height: L-type clears 80% warehouse doors → Requires flat concrete or QU70 rails
Simple monthly checks: 1.Grease hoist gears (10 mins) 2.Inspect wire ropes 3.Test limit switchesWe provide video guides
Three big wins: ① Precision control - Position loads within 2cm ② Operator fatigue down 80% ③ 30% faster than chain hoists
