Overview
Heavy duty gantry crane is a type of crane specifically designed to lift and move heavy loads in industrial settings. It is characterized by its sturdy construction, high lifting capacity, and ability to operate in challenging environments. Gantry cranes are commonly used in construction sites, shipyards, manufacturing facilities, and other industries where large and heavy objects need to be lifted and transported.
1. Heavy duty gantry crane is widely used together with winch or trolley for lifting device.
2. It is a medium and heavy size crane which travels in track.
3. Its proper lifting weight is 5 to 160 tons,and proper span is 18 to 35 meters.
4. Its proper working temperature is -20--+40 centigrade.
5 .This kind of crane is composed of main beam, support legs, crane traveling organ, trolley, electric equipment, strong lifting winch.
6. This product is a regular crane widely used in workshop, storage, port and hydroelectric power station and some other outdoor place, where it has a high frequency or more lifting times.
7. Power is supplied by cable or slide wire.
8. It is prohibited for lifting melt metal, flammable, explosive, corrosion, overloading, dust and other dangerous operations.
Features
Sturdy Construction: Built with high-quality materials, our heavy-duty gantry crane offers exceptional durability and longevity, ensuring reliable performance in the toughest conditions.
Powerful Lifting: With its impressive lifting capacity, this crane effortlessly handles heavy loads, increasing efficiency and reducing manual labor.
Smooth Operation: Equipped with advanced control systems, our gantry crane provides smooth and precise operation, enhancing safety and productivity.
Versatile Design: The gantry crane can be customized to suit your specific requirements, including adjustable span length, lifting height, and various optional features.
Easy Maintenance: Designed for easy maintenance, our gantry crane minimizes downtime, maximizing productivity and reducing overall operational costs.
Specification
Lifting Weight | t | 5 | 10 | 16/3.2 | 20/5 | ||||||||||||||||||||||||||
Working Duty | A5 | ||||||||||||||||||||||||||||||
Span | S(m) | 18 | 22 | 26 | 30 | 35 | 18 | 22 | 26 | 30 | 35 | 18 | 22 | 26 | 30 | 35 | 18 | 22 | 26 | 30 | 35 | ||||||||||
Lifting Height(m) | Main | H1(m) | 10 | 11 | 10 | 11 | 10 | 11 | 10 | 11 | |||||||||||||||||||||
Aux | H2(m) | 10.725 | 11.725 | 10.446 | 11.446 | ||||||||||||||||||||||||||
Speed | Lift | Main | m/min | 11.4 | 7.6 | 7.9 | 7.2 | ||||||||||||||||||||||||
Aux | 19.7 | 19.5 | |||||||||||||||||||||||||||||
Trolley Traveling | 38.3 | 43.8 | 44.6 | ||||||||||||||||||||||||||||
Long Traveling | 40.1 | 47.1 | 40.1 | 47.1 | 34.5 | 47.1 | 34.5 | ||||||||||||||||||||||||
Motor power | KW | 40.8 | 51.8 | 41.5 | 52.8 | 80 | 77 | 84 | 81 | ||||||||||||||||||||||
Max.Wheel Load | KN | 154 | 159 | 178 | 199 | 223 | 198 | 219 | 241 | 275 | 301 | 320 | 341 | 186 | 195 | 227 | 349 | 344 | 201 | 228 | 244 | ||||||||||
Steel track | 43kg/m | ||||||||||||||||||||||||||||||
Power Supply | 3-Phase A.C 50HZ 380V | ||||||||||||||||||||||||||||||
Sinoko Cranes is a trusted name in the industry, renowned for delivering high-quality, reliable, and innovative lifting solutions. With our commitment to excellence and customer satisfaction, we have become a leading provider of cranes and lifting equipment worldwide. Trust Sinoko Cranes for all your material handling needs.
Heavy Duty Gantry Crane Requirements for Quotation:
| Loadcapacity | （——） | Tips:5ton-200ton |
| Span | （——） | Tips:18m-35m |
| Liftheight | （——） | |
| voltage | （——） | Tips:380V 50Hz AC 3-phase or please note |
| Dutyclass | （——） | Tips:A5 if you don't know,please note |
| Hours perday | （——） | |
| Controlway | （——） | Tips:remote control,cabin control |
| Liftspeed | （——） | Tips:single speed or double speed |
| Cross& long travel speed | （——） | |
| Rail supply needed | （——） | Tips:if yes please note the length |
| Power supply needed | （——） | Tips:if yes please note the length |
| Your nearestport | （——） |
Upgrade your material handling capabilities with the Heavy Duty Gantry Crane by Sinoko Cranes. Experience superior performance, unmatched durability, and seamless operation. Contact us today to request a quote and elevate your operations to new heights!
CASE
See Sinoko gantry cranes lifting 200-ton loads in hurricane ports, arctic mines, and steel mills. Discover how our storm-proof designs deliver 98% uptime in brutal conditions.

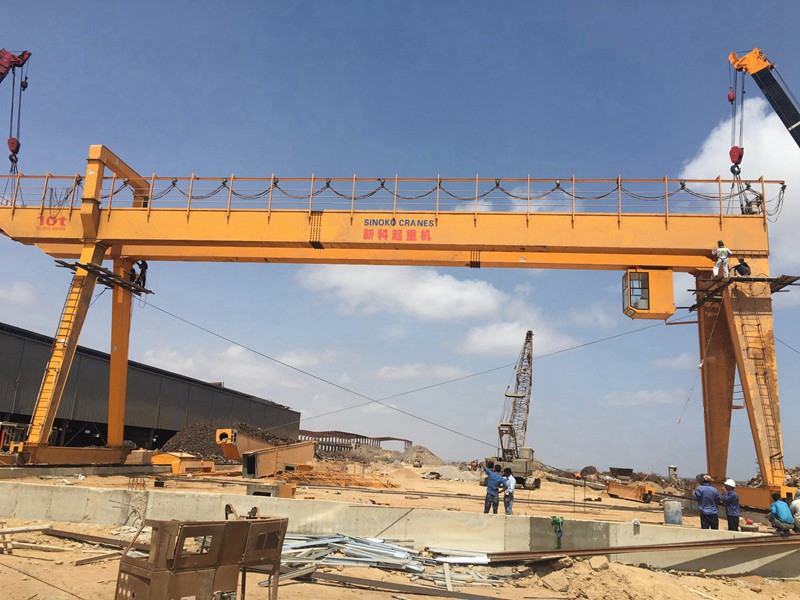

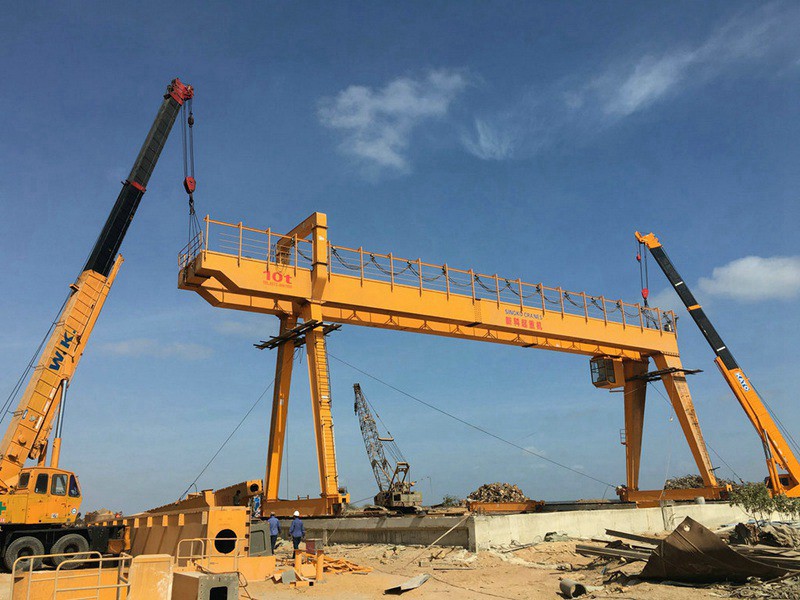

Installation of 10T European-Style Gantry Crane for Pakistani Client by Sinoko Cranes
Struggling with slow manual gates? Sinoko's European gantry crane slashed Pakistan customer's downtime by 64%! Transform your access efficiency – contact us!
Learn More Get a Quote
40.5T Rail-Mounted Gantry Crane Installation for Port Logistics Efficiency
The RMG gantry crane designed and manufactured by Sinokocrane has effectively solved the problems for the customers and reduced their operational costs.
Learn More Get a Quote
Pakistan Scrap Steel Dumping Container Gantry Crane Project Case
The Sinoko crane, leveraging years of experience and outstanding technology, designed a container gantry crane for customers, successfully solving the problem of transporting scrap steel for them.
Learn More Get a QuoteFAQs
Most orders ship in 14-16 weeks by sea. includes waterproof packaging and customs clearance support.
We've built industrial cranes since 2008 with 200+ installations across ports and steel mills. Our 50,000㎡ facility holds ISO, CE, and SGS certifications - book a video tour to see production lines.
Absolutely! Standard models handle -20°C environments with full capacity. For arctic sites like Alaska mines, we add cold-proof hydraulics at no extra cost.
Our engineers will:① Install rails (QU100/QU120 recommended)② Train your crew for 2 days③ Give maintenance checklist before leaving④ Offer 24/7 remote troubleshooting
Disassembled in weatherproof crates via sea freight. We: ✓ Handle all export documents ✓ Send loading photos/videos ✓ Track shipments weekly ✓ Deliver to your nearest port
Three key advantages: ✅ European specs at Asian prices ✅ Customizable spans up to 35m ✅ 48-hour stress testing before shipping
