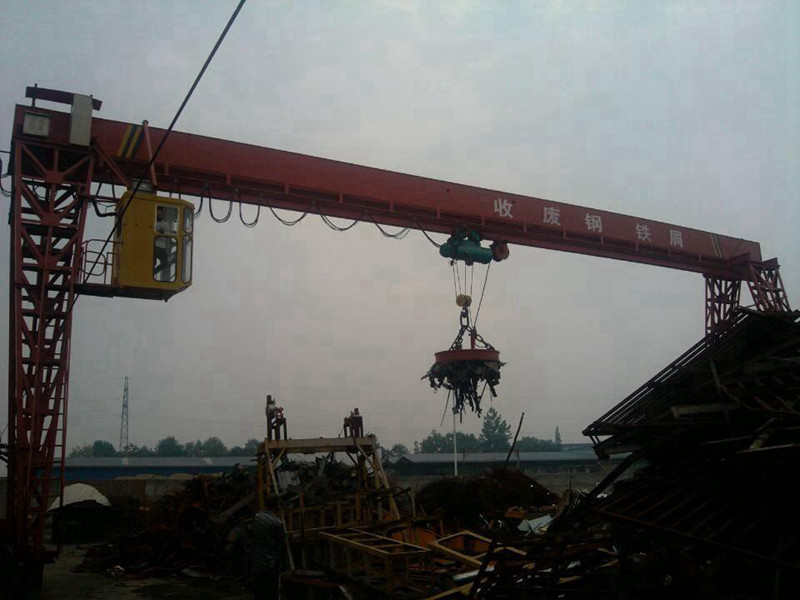

The magnet Gantry Crane consists of four main parts, namely, the bridge structure, the traveling mechanism, the trolley and electric equipment, and electromagnet. All moments of the crane are controlled form cabin. Either rigid shapes of steel (angles or tees) or flexible insulated cable shall be selected to be utilized as runway conductors and proposed in the order by purchaser. Max. and Min. value of environment temperature, the sort of power supply, the voltage and other data shall be proposed by user when filling in the order form.
Applied Situation of Magnet Gantry Crane

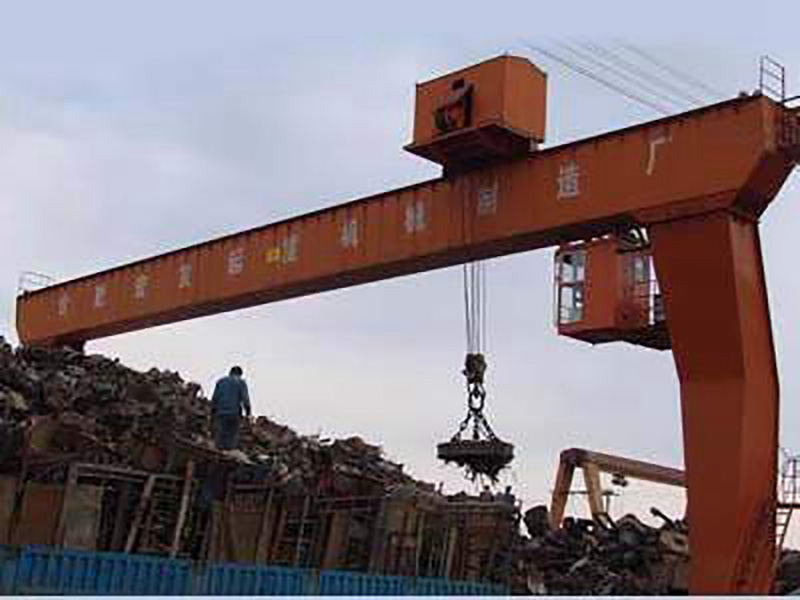

Mourn the hook the machine of double beam magnet gantry crane applicable to the steel milling. Cast Ingot, Steel Ball, Pig Iron, Machine Chip, various kinds of steel scraps, return scraps, baling scraps and etc in foundry factories and for iron powder in coal washer.
Features

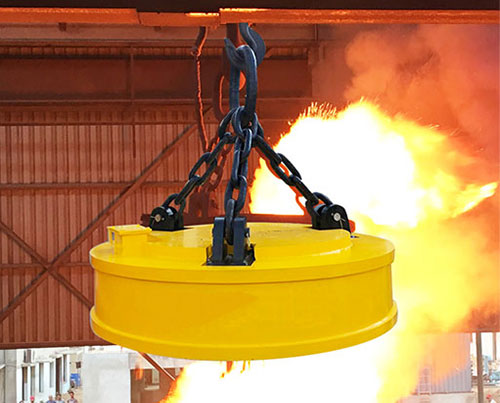

Powerful Electromagnet Spreader: The Gantry Crane is equipped with a high-capacity electromagnet spreader that securely holds and lifts ferrous materials. The electromagnet can be activated and deactivated as needed, providing precise control over the lifting process.
Robust Construction: Built with sturdy materials and components, the Gantry Crane ensures durability and long-term reliability even in demanding industrial environments. It is designed to withstand heavy loads and continuous operation.
Versatile Lifting: The Gantry Crane with Electromagnet Spreader is suitable for handling a wide range of ferrous materials, including steel plates, bars, and scrap. It provides flexibility in material handling operations and can be customized to meet specific lifting requirements.
Precise Control System: The advanced control system allows for smooth and precise lifting, lowering, and traversing motions. The operator can control the crane's movements with ease, ensuring efficient and safe material handling.
Safety Features: Safety is paramount in crane operations. The Gantry Crane incorporates safety features such as overload protection, emergency stop buttons, limit switches, and audible alarms to ensure safe lifting operations and prevent accidents.
Specification
Lifting Capacity | t | 3 | 5 | 10 | 16 | 20 | ||
Operational method | Pendent line with push button /cabin | |||||||
Speed | Lifting | m/min | 8 ,8/0.8 | 8,8/0.8 | 7,7/0-7 | 3.5 | 3.5 | |
Cross travelling | m/min | 20 | 20 | 20 | 20 | 20 | ||
Long travelling | Ground | m/min | 20 | 20 | 20 | 20 | 20 | |
Electric hoist | Type | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC | ||
Lifting height | m | 6, 9 | ||||||
Working duty | A3 | |||||||
Power supply | 380V 50HZ 3phase AC | |||||||
Span | m | 12, 16, 20, 24, 30 | ||||||
At Sinokocranes, we specialize in providing high-quality and innovative lifting solutions. Our Gantry Crane with Electromagnet Spreader is designed to meet the specific requirements of material handling involving ferrous materials. Choose Sinokocranes for superior performance, durability, and excellent customer service.
Optimize your material handling of ferrous materials with the Gantry Crane equipped with an Electromagnet Spreader. Experience powerful lifting, precise control, and reliable performance. Contact us today to learn more about this crane and how it can enhance your operations!
Kindly please provide the following information when sending enquiry to us.
Load Capacity | ( ) | Tips: 5 10 16 20t |
Span | ( ) | Tips: 7.5m-22.5m |
Lift Height | ( ) | |
Voltage | ( ) | 380V 50Hz AC 3-phase |
Working Class | ( ) | Tips: A3 |
Hours Per Day | ( ) | |
Control Way | ( ) | Tips: remote control, cabin control or pendent control |
Lifting Speed | ( ) | Tips: single speed or double speed |
CASE
See Sinoko magnet cranes lifting steel plates and scrap metal in ports, foundries, and scrapyards worldwide – delivering 99.9% drop-free operations since 2012.
Pakistan Scrap Steel Dumping Container Gantry Crane Project Case
The Sinoko crane, leveraging years of experience and outstanding technology, designed a container gantry crane for customers, successfully solving the problem of transporting scrap steel for them.
Learn More Get a Quote
40.5T Rail-Mounted Gantry Crane Installation for Port Logistics Efficiency
The RMG gantry crane designed and manufactured by Sinokocrane has effectively solved the problems for the customers and reduced their operational costs.
Learn More Get a Quote
Installation of 10T European-Style Gantry Crane for Pakistani Client by Sinoko Cranes
Struggling with slow manual gates? Sinoko's European gantry crane slashed Pakistan customer's downtime by 64%! Transform your access efficiency – contact us!
Learn More Get a QuoteFAQs
Standard orders take 14 weeks by sea. Rush option: 10 weeks.
Battery backup holds magnets for 5 minutes (plenty to land loads)Dual-circuit redundancy
Absolutely! The electromagnet adjusts to jagged shapes. Our Turkish scrapyard lifts 35 tons/hour of mixed scrap - no hooks/chains needed.
IP66 sealed system works in monsoons and sandstorms. Add our salt-proof kit for coastal sites.
Coils baked in thermal varnish + stainless steel cores. Lasts 3x longer than standard electromagnets - proven in Korean steel mills running 24/7.
Two simple monthly tasks:Wipe magnet surface (5 mins)Check cable connectionsWe send video checklists in 10 languages.
