Overview:

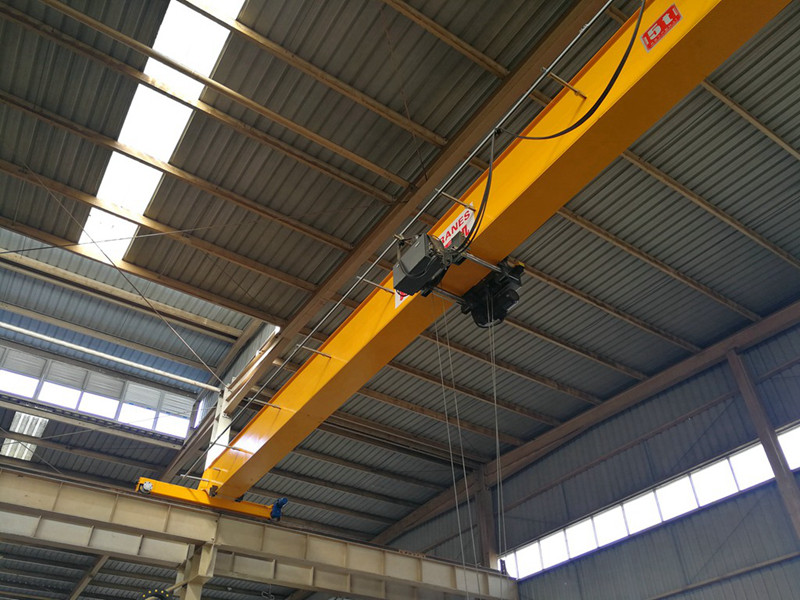

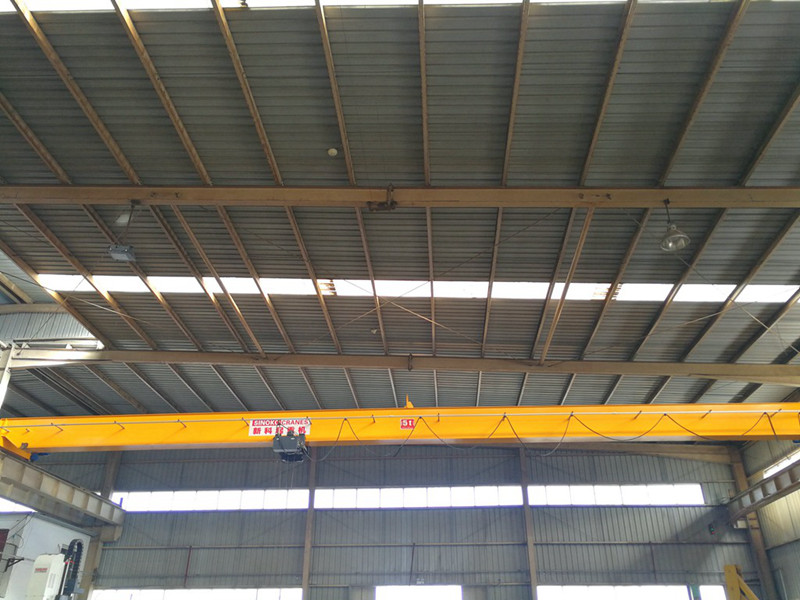

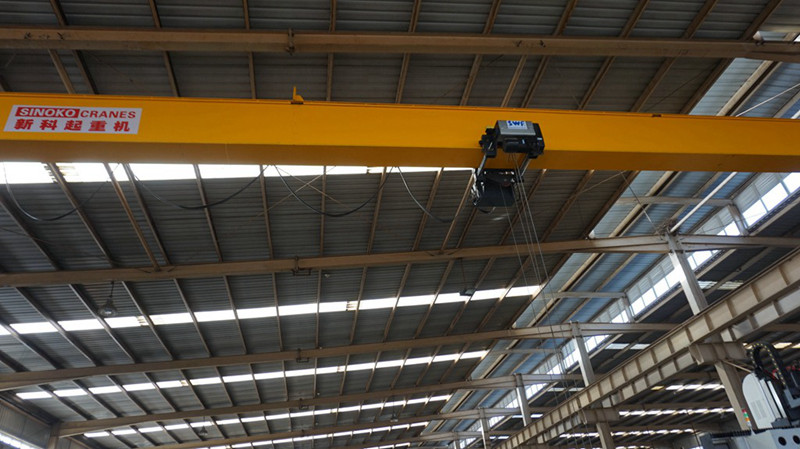

European single-girder Monorail Overhead Crane consists of hoisting mechanism (wire rope electric hoist and other structures), main beam, end beam, electric control system, etc.
European crane has low height, small size, light weight, small wheel pressure and humanity. The design and many other advantages are a new generation of innovative products, superior performance, compact structure, small net space size, and full use of the plant's effective space.
The maximum lifting capacity is 20T, the overall protection class is IP55, Class F insulation, the lifting mechanism adopts high-strength galvanized steel wire rope, the lifting frequency reaches 2 million times, and the operating mechanism is equipped with hard tooth surface reducer (HRC60) and squirrel-cage motor ( 60% ED), self-adjusting disc brakes, precise drive gears, hardened tooth surfaces, and abrasive treatment ensure long-term, trouble-free operation. The perfect braking system greatly improves safety and reliability. The high-performance brake adopts a dust-proof design that can be automatically adjusted and has a safety life of more than 1 million times.
All components are manufactured using European technical standards, with excellent performance and maintenance-free advantages. The standard configuration of the crane is the frequency conversion of the car and the frequency conversion of the car, and the positioning is quick and accurate. At the same time, the anti-swing device configured effectively solves the problem of swing of the transshipment. The smooth braking ensures stable, safe and reliable driving. The stepless variable frequency control system is designed for crane applications.
At the same time, depending on the characteristics of the customer's on-site operations, it is possible to allocate hoisting frequency conversion or double hoist operation. Such hoisting structures are often used in the loading and unloading operations of precision machining equipment. They fully consider the needs of customers and increase the safety of customers during use.
Features
The structure of the 3 ton monorail overhead crane is light, the performance is excellent, the structure is reliable, the weight of the whole machine is light, the load is reasonable, and the basic load is small;
Specification
| Capacity | 3 tons |
| Lift height | Max. 90 m |
| Span | 7.5~40m |
| Work duty | M3~M6 |
| Protection class | IP54/IP55 |
| Working temperature | -20~+60℃ |
CASE
Based on their intended use, overhead cranes can be classified into general-purpose cranes, steel mill cranes, and explosion-proof cranes. Each type is designed with specific working environments and load requirements in mind, ensuring safety and efficiency.
Installation of QZ-Type Grab Bucket Bridge Crane Project Case
The Sinoko QZ-Type Grab Bucket Bridge Crane was specially designed for a Brazilian client as a grab bucket crane, which significantly improved the client's work efficiency and received unanimous praise from the client.
Learn More Get a Quote
Automotive Repair Facility in Russia 5 Ton Workshop Bridge Crane Project Case
The Sinoko crane, a 5-ton bridge crane tailor-made for a Russian customer's auto repair shop, has helped the customer solve the problem of lifting and transportation, improved the customer's work efficiency, and saved the customer's work costs.
Learn More Get a Quote
3× 5T European-Style Single-Girder Cranes for Kenyan Sugar Refinery
Sinoko cranes has designed three 5-ton bridge cranes for Kenyan customers, which have solved their problems. Come and contact Sinoko cranes to solve your lifting problems.
Learn More Get a QuoteFAQs
A: Our FEM-compliant design features ultra-low headroom (500-550mm height), IP55/F-class insulation, and hardened gear surfaces (HRC60). This creates a 20% more efficient system with maintenance-free galvanized ropes rated for 2 million lift cycles - ideal for space-constrained facilities.
A: Absolutely. With standard frequency control and optional anti-swing technology: Achieves ±10mm positioning accuracy Enables dual-hoist synchronized lifting for delicate loads Features stepless variable speed control (5-20 m/min travel)
A: Built for harsh industrial conditions: -20°C to +60°C operating temperature IP55 protection against dust/moisture Corrosion-resistant alloy components Self-adjusting brakes with 1M+ safety cycles
A: Compared to conventional cranes: Requires 30% less headroom clearance Compact girder design maximizes usable bay width Wheel pressure reduced by 40% (lighter runway requirements) 90m max lift height minimizes floor footprint
A: Full compliance with: FEM M3-M6 duty standards DIN 15401 suspension systems ISO 12488-1 load testing protocols CE-marked electrical components
A: Yes - optional ATEX-compliant packages available for: Zone 22 combustible dust environments Class I Div 2 hazardous locations Customized explosion-proof motors/controls
A: Designed for minimal upkeep: Sealed, lubricated-for-life bearings Maintenance-free wire ropes Modular components for easy replacement Remote diagnostics via control system
