Overview:

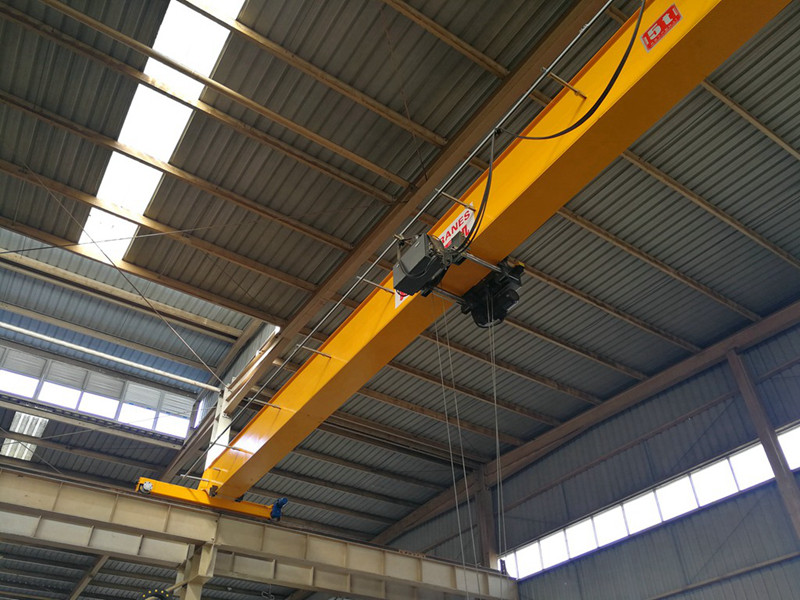

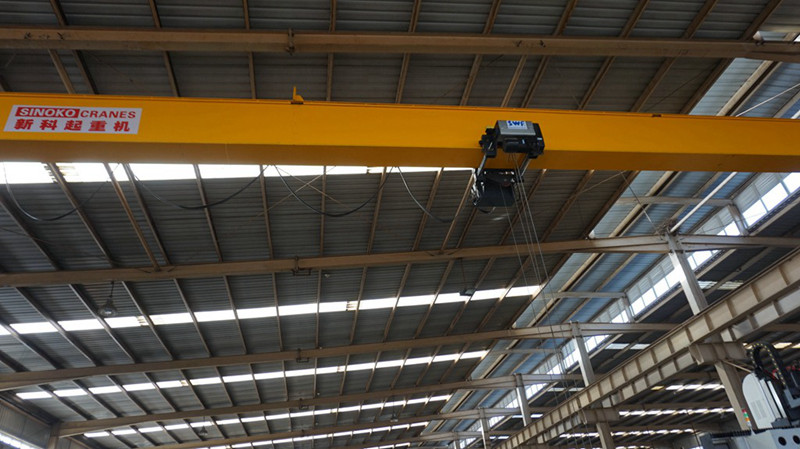

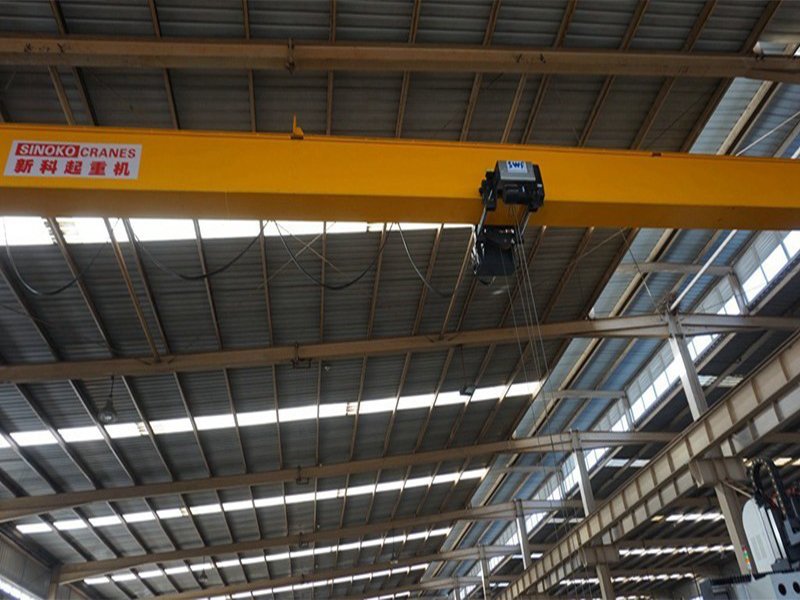

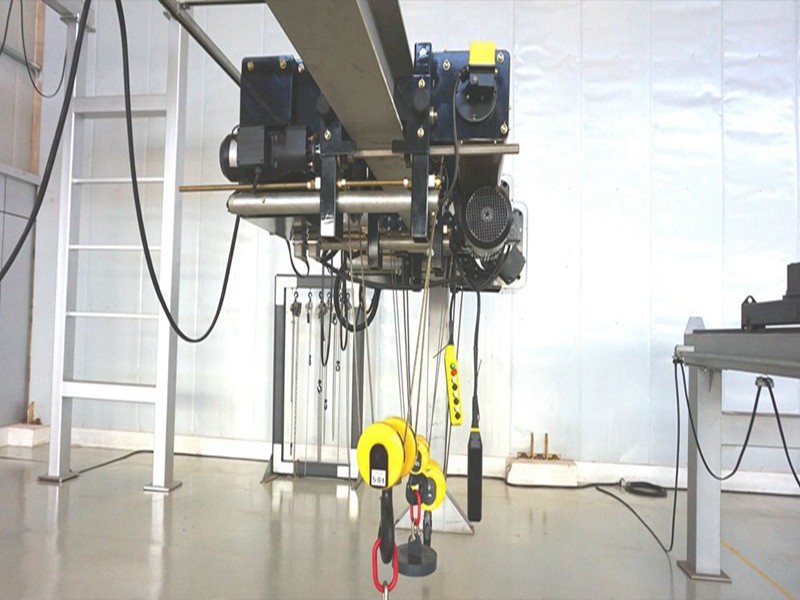

European CXTD Monorail Wire Rope Hoist Cranes consists of hoisting mechanism (wire rope electric hoist and other structures), main beam, end beam, electric control system, etc.
CXTD Monorail Wire Rope Hoist Cranes has low height, small size, light weight, small wheel pressure and humanity. The design and many other advantages are a new generation of innovative products, superior performance, compact structure, small net space size, and full use of the plant's effective space.
The maximum lifting capacity is 20T, the overall protection class is IP55, Class F insulation, the lifting mechanism adopts high-strength galvanized steel wire rope, the lifting frequency reaches 2 million times, and the operating mechanism is equipped with hard tooth surface reducer (HRC60) and squirrel-cage motor ( 60% ED), self-adjusting disc brakes, precise drive gears, hardened tooth surfaces, and abrasive treatment ensure long-term, trouble-free operation. The perfect braking system greatly improves safety and reliability. The high-performance brake adopts a dust-proof design that can be automatically adjusted and has a safety life of more than 1 million times. All components are manufactured using European technical standards, with excellent performance and maintenance-free advantages.
The standard configuration of the CXTD Monorail Wire Rope Hoist Cranes is the frequency conversion , and the positioning is quick and accurate. At the same time, the anti-swing device configured effectively solves the problem of swing of the transshipment. The smooth braking ensures stable, safe and reliable driving.
The stepless variable frequency control system is designed for crane applications. At the same time, depending on the characteristics of the customer's on-site operations, it is possible to allocate hoisting frequency conversion or double hoist operation. Such hoisting structures are often used in the loading and unloading operations of precision machining equipment. They fully consider the needs of customers and increase the safety of customers during use.
Features
● European cranes improve work efficiency by at least 20%, which greatly improves the material handling efficiency in production and operations.
● Ultra-low failure rate, advanced technology protection;
● The most advanced lifting mechanism, good maintenance-free;
● High precision of electrical control, perfect protection device;
● High precision, precision, strong sense of technology;
● European low headroom design - energy saving and environmental protection, making full use of the plant's effective space for customers;
● Frequency conversion control, stable braking; anti-swing technology can be added, lifting is safer;
● European design, the appearance of the machine is beautiful, strong corrosion resistance;
● Fast, smooth loading, safe and comfortable handling.
Specification
| Capacity | 1~20 tons |
| Lift height | Max. 90 m |
| Span | 7.5~40m |
| Work duty | M3~M6 |
| Protection class | IP54/IP55 |
| Working temperature | -20~+60℃ |
Monorail hoist cranes are typically designed with modular components which allow for easy customization to fit the size and capacity requirements of a particular application. The standard components of a monorail hoist crane include a motorized trolley, a main girder, end trucks, and lift motors. Additional features may include safety features such as load guards, speed limiters, and emergency stop buttons. The motors and control system of a monorail hoist crane must be chosen according to the type of application and required speed, capacity, and reliability.
CASE
Based on their intended use, overhead cranes can be classified into general-purpose cranes, steel mill cranes, and explosion-proof cranes. Each type is designed with specific working environments and load requirements in mind, ensuring safety and efficiency.
3× 5T European-Style Single-Girder Cranes for Kenyan Sugar Refinery
Sinoko cranes has designed three 5-ton bridge cranes for Kenyan customers, which have solved their problems. Come and contact Sinoko cranes to solve your lifting problems.
Learn More Get a Quote
Automotive Repair Facility in Russia 5 Ton Workshop Bridge Crane Project Case
The Sinoko crane, a 5-ton bridge crane tailor-made for a Russian customer's auto repair shop, has helped the customer solve the problem of lifting and transportation, improved the customer's work efficiency, and saved the customer's work costs.
Learn More Get a Quote
Installation of QZ-Type Grab Bucket Bridge Crane Project Case
The Sinoko QZ-Type Grab Bucket Bridge Crane was specially designed for a Brazilian client as a grab bucket crane, which significantly improved the client's work efficiency and received unanimous praise from the client.
Learn More Get a QuoteFAQs
A CXTD Monorail Wire Rope Hoist Crane is a type of overhead crane designed for efficient lifting and transportation of heavy loads using a wire rope hoist, mounted on a monorail system.
Key features include high load capacity, compact design, smooth operation, and advanced safety mechanisms. It's perfect for tight spaces where space efficiency is crucial.
The CXTD Monorail Wire Rope Hoist can lift loads ranging from several hundred kilograms up to 20 tons, depending on the model and specifications.
This crane is widely used in industries like manufacturing, warehouses, logistics, and construction for lifting materials, goods, and equipment.
Regular maintenance includes inspecting the wire ropes, hoist brakes, and electrical components. It’s important to schedule annual checks with certified technicians to ensure optimal performance and safety.
Yes, Sinoko Crane offers customization options for the CXTD Monorail Hoist, including load capacity, span, control systems, and more to meet specific operational requirements.
