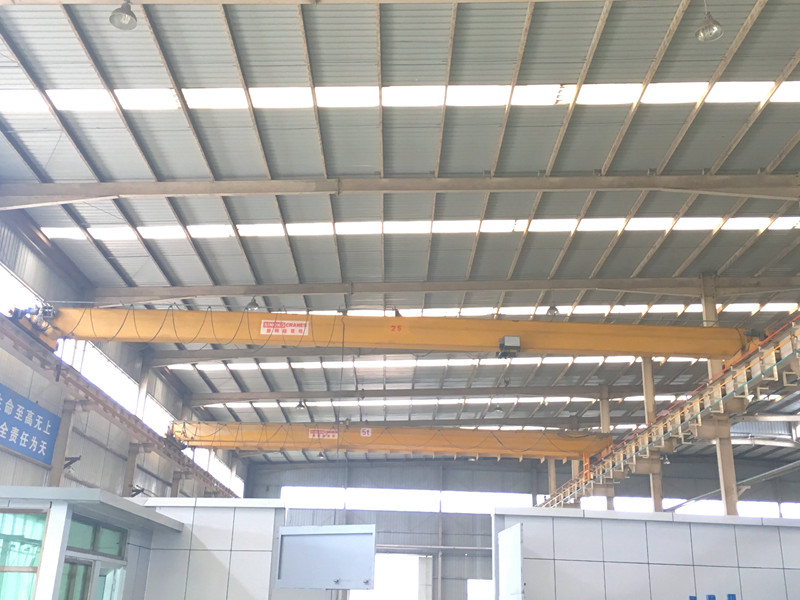

With its versatility and robust design, the 5-ton overhead bridge crane serves as a reliable material handling equipment across various industries. Engineered with dependable motors and accessories, it guarantees high-quality and safe operations. Kinocranes Crane, a reputable crane manufacturer in China, brings 15 years of experience in bridge crane production. Our 5-ton bridge crane options can be customized to suit specific working conditions, offering the choice between single or double beams for lifting and lowering configurations.
5 ton Overhead Bridge Crane Parts
The 5-ton Overhead Bridge Crane boasts an array of advanced components and configurations to ensure top-notch performance. It is equipped with Schneider electricals, ABM/Nord/SEW triple gear motors (consolidating the motor, gear box, and brake into a single unit), galvanized high-strength wire rope, self-adjusting disk brakes, durable hard tooth reducers, and programmable lifting limit switches, among other features. These cutting-edge elements contribute to the crane's efficiency, reliability, and enhanced safety during lifting and transportation operations.
Features
High Reliability and Safety: The crane exhibits a high level of reliability and safety, with a low maintenance rate. It adheres to FEM2M and M5 work duty standards, boasts IP55 protection class, insulation class F, and offers a continuous rate of 60% (for high-class motors). It also features a 30% higher cooling rate than normal cranes and includes over-temperature protection at 170℃.
Compact and Lightweight Design: The crane's compact design and low dead weight contribute to its small size and low headroom, optimizing space utilization.
Low Noise Operation: The crane operates with minimal noise, minimizing disturbances in the workplace.
Cost-Effective Investment: With its light dead weight and low wheel pressure, the crane reduces the civil work cost of the workshop, providing cost-saving benefits.
Energy-Efficient: The crane's total motor power is significantly lower than conventional designs, resulting in power savings.
Specification
Capacity(t) | 5t | 10t | 16t |
Span(m) | 6.5m---28.5m | ||
Lifting height(m) | 3m---30m | ||
Control mode | Pendant control,wireless remote control,cabin control | ||
Lifting speed(m/min) | 2.8 ,8 , 8/0.8 | 2.3 , 5/0.8 7, 7/0.7 | 4, 4/0.4 |
Travelling speed(m/min) | 20,30,45 (Inverter) | ||
Service class(work grade) | a) M2, M3: used in places of mild service, such as workshop and warehouse. | ||
Supply power(three phase power) | 380V 50HZ 3Phase (according to user require) | ||
Hoist type | Wire rope or chain hoist ,single or double speed | ||
Working ambient temperature | -20 °C~ <55°C. | ||
Note | It’s not suitable for lifting blazing & melting metal or toxicant as well as explosion-proof or insulating working conditions. | ||
Don't miss out on the opportunity to enhance your lifting operations. Contact us now to get started with the industry-leading 5-ton overhead bridge crane.
CASE
Discover how our 5-ton Overhead Bridge Crane has transformed operations for industries worldwide. From improving efficiency to ensuring safety, this reliable crane meets diverse material handling needs. Explore successful case studies and learn how it can benefit your business today!

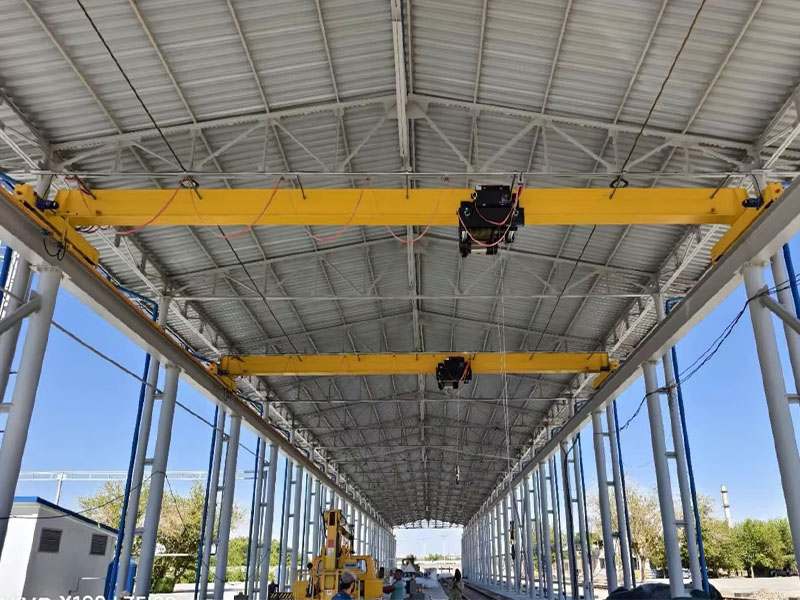

Automotive Repair Facility in Russia 5 Ton Workshop Bridge Crane Project Case
The Sinoko crane, a 5-ton bridge crane tailor-made for a Russian customer's auto repair shop, has helped the customer solve the problem of lifting and transportation, improved the customer's work efficiency, and saved the customer's work costs.
Learn More Get a Quote

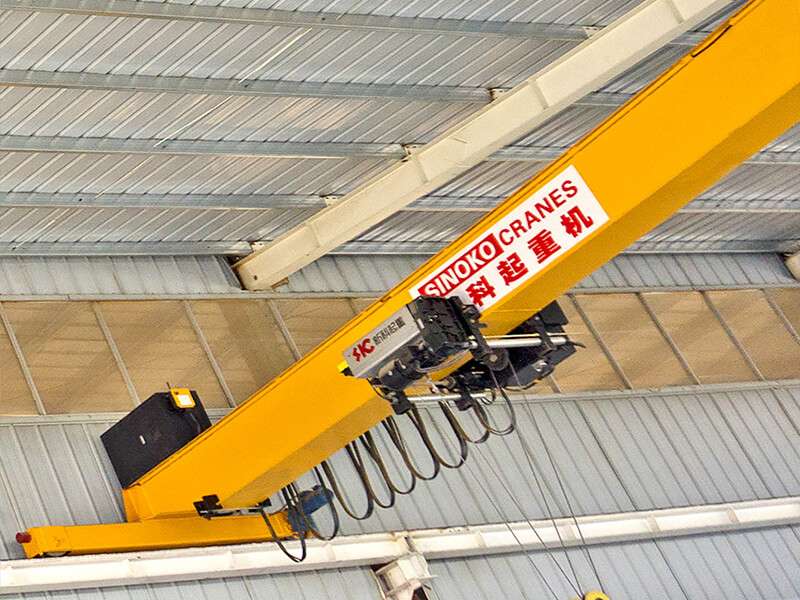

3× 5T European-Style Single-Girder Cranes for Kenyan Sugar Refinery
Sinoko cranes has designed three 5-ton bridge cranes for Kenyan customers, which have solved their problems. Come and contact Sinoko cranes to solve your lifting problems.
Learn More Get a Quote
Installation of QZ-Type Grab Bucket Bridge Crane Project Case
The Sinoko QZ-Type Grab Bucket Bridge Crane was specially designed for a Brazilian client as a grab bucket crane, which significantly improved the client's work efficiency and received unanimous praise from the client.
Learn More Get a QuoteFAQs
A 5-ton overhead bridge crane is designed for lifting and moving heavy loads in factories, warehouses, or construction sites. It's ideal for lifting materials up to 5 tons in weight.
The crane operates by using a bridge that runs along two tracks mounted on the ceiling. The bridge is equipped with a hoist to lift and lower the load, providing horizontal and vertical movement.
These cranes are widely used in manufacturing, construction, steel production, logistics, and heavy machinery industries to improve material handling and increase operational efficiency.
Sinoko’s crane offers durable construction, precise load control, high safety standards, and customizable configurations for various applications. It is built for smooth operation and longevity.
Installation typically requires professional setup, including mounting the crane tracks and hoist system. Our team provides full guidance and support for seamless installation.
Regular maintenance includes checking the hoist, inspecting electrical components, lubricating moving parts, and ensuring proper alignment. We offer service packages to keep your crane in optimal condition.
