European standards 10 ton Overhead Crane

Depending on the working frequency, the 10 ton overhead crane can be designed as a single girder or double girder crane;

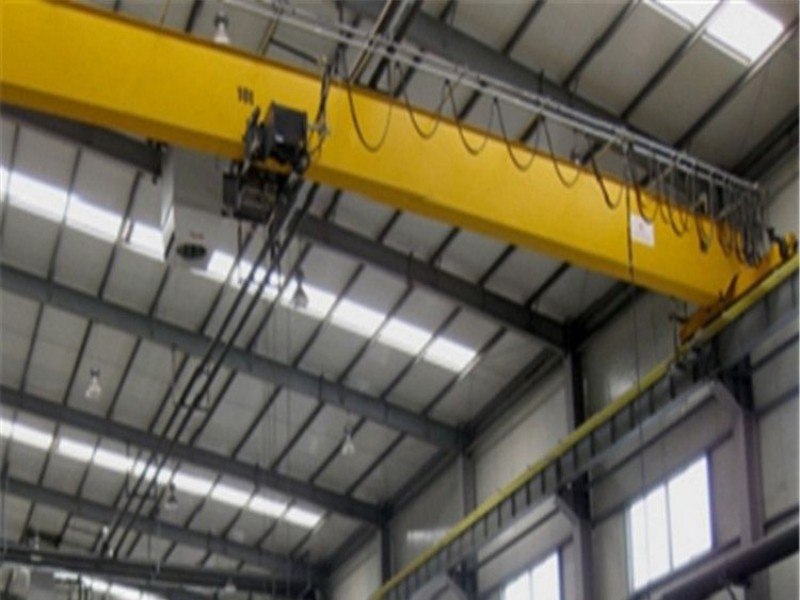

European Single Girder 10 ton Overhead Crane For Sale

European 10 ton electric single-girder crane is used with a supporting electric rail hoist rail light rail crane. The product is compact, beautiful appearance, reasonable force and so on.


This type crane is widely used in machinery manufacturing, warehousing, assembly, yard and other places for loading and unloading and handling objects, the prohibition of the use of inflammable and explosive corrosive media and lifting of molten metal. Which has the following brief features


(1) The general capacity is less than 50t, and the span is less than 35m,  Single girder cranes are a better choice.

(2) The main beam is I-shaped steel or a combination of steel type and steel plate


European Double Girder 10 ton Overhead Crane For Sale

Electric double girder overhead crane is a horizontal frame in the workshop, warehouse and yard the material lifting equipment.It is shaped like a bridge because its two ends are perched on tall concrete columns or metal supports.The bridge of the overhead crane runs longitudinally along the track laid on the viaduct on both sides, which can make full use of the space below the bridge to lift materials and is not hindered by the ground equipment.It is the most widely used, the largest number of a kind of lifting machinery.


In addition, we also provide 10 ton electromagnetic overhead crane, grab overhead crane, explosion proof overhead crane, steel mill overhead crane, etc. to meet customers's pecific applications.

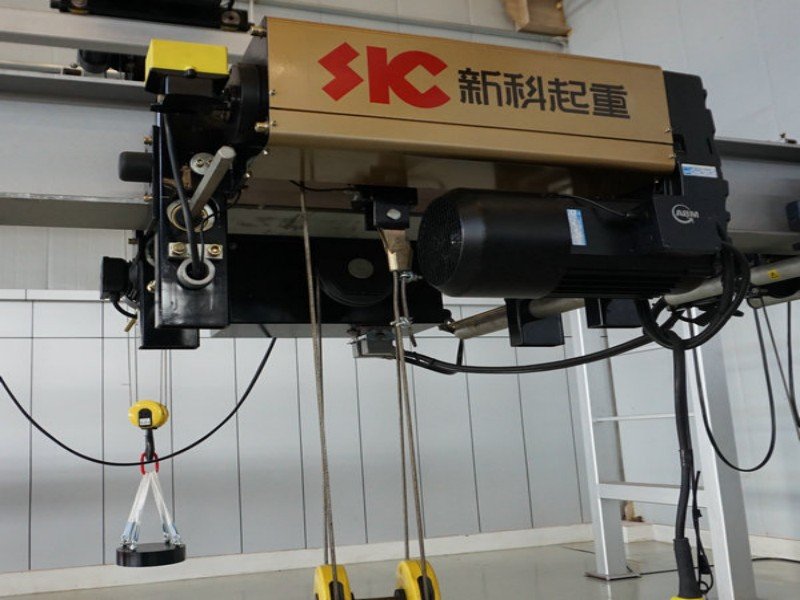

(1)Changeable poles , two-speed and there in one motor, has high reliability and small volume.

(2)Highly energy-efficient motor with hardened gear box, to achieve low-power and big torque output.

(3)High-precision automatic adjustment of electromagnetic brakes, to achieve fast, low noise and reliable braking.

(4)High-strength, highly-flexible wire rope for greater and more secure tension

(5) High-strength nylon guide rope, pulley, self-lubrication to achieve longer wire rope life

(6) High-strength alloy wheels for longer wheel life

(7)Modular design, flexible combination

(8)Single girder maximum lifting capacity up to 20t, double girder maximum lifting capacity up to 63t

European Single Girder 10 ton Overhead Crane Specification


Capacity10 tons
Lift heightMax. 90 m
Span7.5~40m
Work dutyM3~M6
Protection class IP54/IP55
Working temperature-20~+60℃

European Double Girder 10 ton Overhead Crane Specification

Capacity10 tons
Spanup to 35 m
Lifting speed5/0.38 m/min or customized
Traveling speed0~40 m/min
Cross Speed0~100 M/Min (VVVF)
Working ClassM3-M6
SpecificationCE, ISO


How Much Does A 10 Ton Overhead Crane Cost?

Let's take single girder 10 ton overhead crane for example.


10 ton overhead crane refers to a single girder overhead crane with a rated lifting capacity of 10 tons, which can be divided into 10 ton single girder grab cranes, single girder electromagnetic cranes, explosion proof single girder cranes, etc., single girder overhead cranes rated lifting capacity includes the self-weight of the grab and the electromagnetic chuck.


The 10 ton single girder bridge crane is a tonnage that customers inquire more about, and everyone pays more attention to its price. If you want to know how much the 10 ton single girder bridge crane costs, you must first know the span of the crane. The span of the crane refers to the center distance between the two running rails of the crane. Customers need to provide accurate values so that the price can be calculated accurately.

Secondly, the customer needs to provide the lifting height of the crane. The lifting height refers to the distance from the ground to the highest point of the hook. If the customer is not sure, it can be estimated by the load-bearing beam or the height of the workshop. Commonly used standard electric hoist rope lengths are 6 meters, 9 meters, 12 meters, 18 meters, 24 meters, etc.

The customer also needs to provide the stroke of the single girder bridge crane. The stroke of the crane refers to the running span of the cart (the whole crane), which can be calculated according to the length of the unilateral track or the load-bearing beam of the workshop.


You need to provide other specifications of the 10 ton bridge crane, working environment, type of material to be lifted, duty cycle, your destination, etc. so that the crane manufacturer can provide you with an accurate quote.


The price of 10 ton single girder bridge cranes given by different manufacturers may be different. You still have to look at the product configuration first, and then consider the price.
