Crane electromagnet are matched with various cranes to provide ideal material handling solutions for steel, shipbuilding, heavy machinery, steel warehouses, ports, railways, etc. At the same time, we can provide different shapes of crane electromagnet to meet the handling of different materials, such as round shaped, oval and square crane electromagnet.

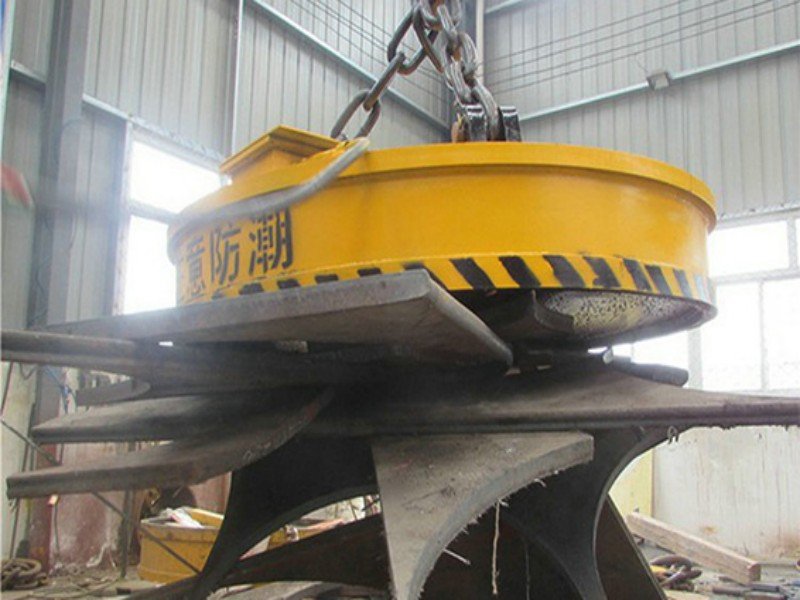

Scrap yard crane electromagnet advantage
1. Fully sealed structure, no maintenance on the surface, stable operation, no seals, not easy to leak
2. Large bearing capacity, simple and compact structure, reasonable design, stable and not easy to swing, good adaptability
3. Small size, uniform suction force of the disc, can be remotely operated, and scrap yard crane electromagnet is not easy to deform
4. The scrap yard crane electromagnet specifications and models are complete, and can be processed and customized according to actual operation requirements
Sinokocranes can provide you with customized services to meet the various needs of various applications. As a professional material handling solutions provider, Sinokocranes promises to provide the best material handling equipment for your application at the most cost-effective price.
Features
1. Fully sealing structure with good property of moisture-proofing
2. Tailored design with reasonable structure, light dead-weight, strong attraction force and low energy consumption
3. The energizing coils are processed by special technology to improve the electrical & mechanical function.
4. Heat-resistant grade of insulating material reaches grade C with long service life
5. High rated power-on sustaining rate of 80% improves the magnet efficiency
6. High temperature type electromagnet adopts unique method of heat protection, the temperature of the attached materials is increased from 600 °C to 700 °C, which expands application range of the electro magnet
Specification
| Model | Diameter(mm) | Current (A) | Power (kW) |
| MW5-70L/1 | 700 | 15 | 3.3 |
| MW5-80L/1 | 800 | 18 | 3.96 |
| MW5-90L/1 | 900 | 26.6 | 5.85 |
| MW5-110L/1 | 1100 | 35 | 7.7 |
| MW5-120L/1 | 1200 | 45.5 | 10 |
| MW5-130L/1 | 1300 | 54 | 11.9 |
| MW5-150L/1 | 1500 | 71.2 | 15.6 |
| MW5-165L/1 | 1650 | 75 | 16.5 |
| MW5-180L/1 | 1800 | 102.4 | 22.5 |
| MW5-210L/1 | 2100 | 129 | 28.4 |
| MW5-240L/1 | 2400 | 154 | 33.9 |
CASE
To help you better understand how our bridge cranes and electromagnetic lifting systems operate in actual working conditions, we’ve gathered a selection of project case studies from clients in the scrap and steel industries. These examples demonstrate the durability, efficiency, and adaptability of Sinoko Crane solutions in demanding environments. Explore the projects below to see how we help customers improve productivity and safety in material handling.
32T Steel Coil Handling Crane Project Case
Sinoko Crane with years of experience in crane manufacturing and design, the steel coil handling crane has helped customers reduce costs and improve the efficiency of steel coil transportation.
Learn More Get a Quote
Installation of QZ-Type Grab Bucket Bridge Crane Project Case
The Sinoko QZ-Type Grab Bucket Bridge Crane was specially designed for a Brazilian client as a grab bucket crane, which significantly improved the client's work efficiency and received unanimous praise from the client.
Learn More Get a Quote
30T C-Hook Deployment for Copper Producer in Ecuador by Sinoko Cranes
Sinoko C-Hooks cut Ecuador copper coil damage to 0%! 30T capacity, 150°C heat-resistance & EdgeGuard™ jaws boost throughput 50%. Get coil lifting solutions now!
Learn More Get a QuoteFAQs
The scrap yard crane electromagnet is designed to lift a wide range of magnetic materials including steel scraps, cast-iron ingots, and steel balls, making it ideal for industrial sectors such as metallurgy, mining, machinery, transportation, shipbuilding, railways, steel warehouses, and ports.
Key design advantages include a fully sealed, moisture-proof structure, lightweight and compact form, strong magnetic attraction, and automated intelligent operation—ensuring stable functionality and minimal maintenance requirements.
Absolutely. The electromagnet is available in multiple shapes—such as round, oval, or square—and comes in various diameters from 700 mm to 2400 mm. Sinoko supports customized designs tailored to match unique operation needs and crane configurations.
Equipped with Grade‑C heat-resistant insulation and a high 80% power-on duty rating, the high-temperature model employs specialized heat-protection techniques that allow it to lift materials up to 600 °C–700 °C—expanding its usability to extreme industrial environments.
Models span from 700 mm diameter (MW5‑70L/1) up to 2400 mm (MW5‑240L/1), with current ratings ranging from 15 A to 154 A and power capacities between 3.3 kW and 33.9 kW—offering a wide selection to meet different lifting capacities and operational demands.
This electromagnet offers several benefits: it operates with high automation and intelligent features, is easy to install and maintain, operates with strong and uniform suction, resists deformation, and delivers a stable and cost-effective lifting solution across demanding industrial use cases.
