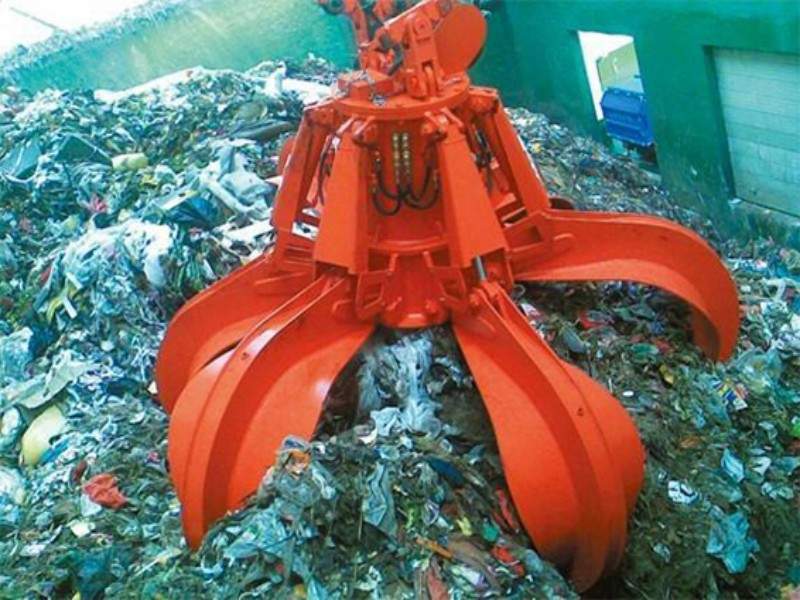

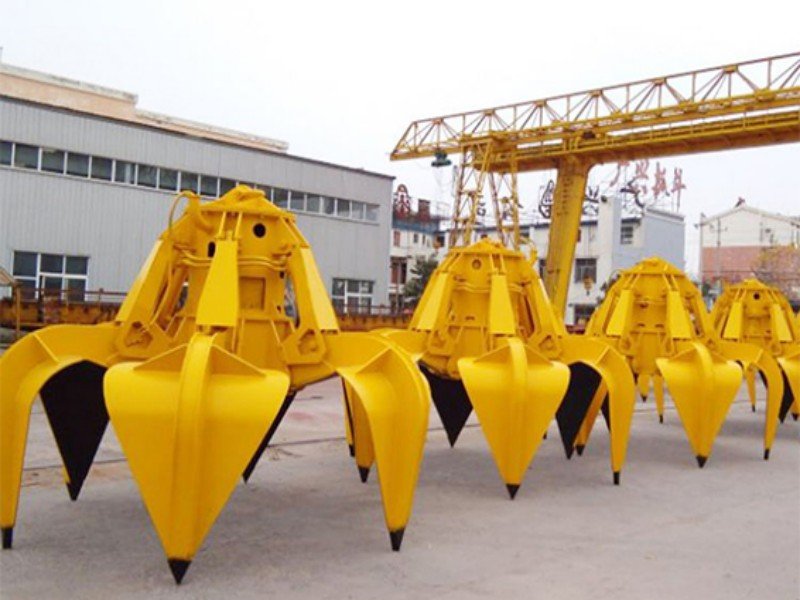

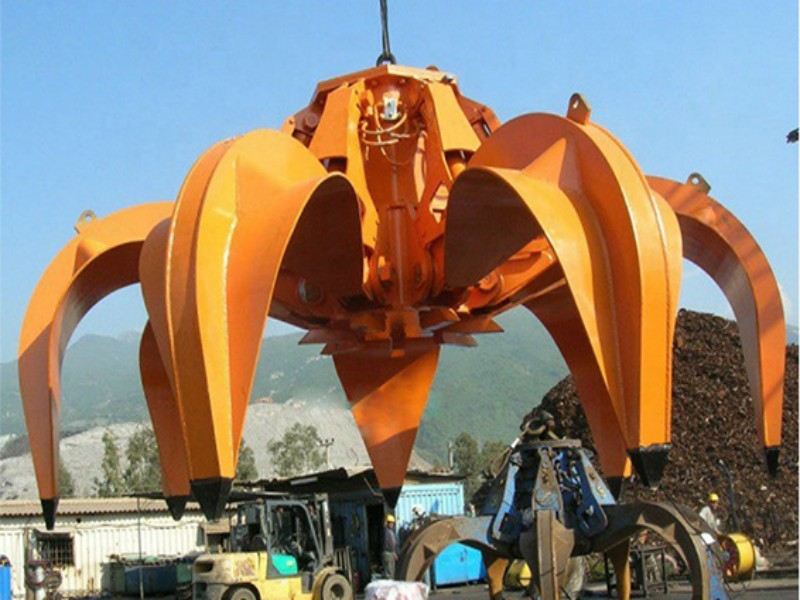

An Orange Peel Grab (sometimes also called a Cactus Grab or Polyp Grab) is specialized for handling materials unsuitable for a Clamshell Grab due to size or penetration needs. It offers variations like open, half-closed, or fully closed shells based on the material type and size. The Grab Specialist customizes grabs to match specific application requirements.
• Single Rope Orange Peel Grab Bucket
• Double Rope Orange Peel Grab Bucket
• Four Rope Orange Peel Grab Bucket
• Electro Hydraulic Orange Peel Grab Bucket
Features
Design for loading and unloading Scrap steel, pig iron, ore, waste and other irregular and large materials in hazardous environment.
Simple grab structure, Easy Maintenance and can finish any open and close working very precise.
Unique grab design to help all kinds buld material handling. Cable interface on the grab convenient to connect the cranes.
This orange peel grab bucket is usually working with 8~40 ton cranes.
Customized service avaliable.
Reduction in self-weight.
Increased volume of goods grabbed.
Enhanced production efficiency.
Specification
| Type | Orange Peel Grab Bucket |
| Capacity | 1 CBM TO 20 CBM |
| Grab Structure | Q345B |
| Pins & Axles | 40 Cr 1 Mo 28, IS; 1570, Hardened, ground and tempered and Hard Chromium Plated |
| Working Pressure | Opening pressure 140 bar Closing pressure 220 bar |
| Grab Working Cycle | Opening 10 to 15 seconds |
| Closing | 13 seconds |
Contact us today to optimize your material handling efficiency with our orange peel grab solutions. We prioritize cost-effectiveness by using top-quality steel in all our Orange Peel grabs.
CASE
Explore our project cases to see how Sinoko’s Orange Peel Grab Buckets and other crane solutions are delivering performance and reliability across industries worldwide. From ports to recycling plants, discover how we meet diverse lifting challenges.
30T C-Hook Deployment for Copper Producer in Ecuador by Sinoko Cranes
Sinoko C-Hooks cut Ecuador copper coil damage to 0%! 30T capacity, 150°C heat-resistance & EdgeGuard™ jaws boost throughput 50%. Get coil lifting solutions now!
Learn More Get a Quote
Pakistan Scrap Steel Dumping Container Gantry Crane Project Case
The Sinoko crane, leveraging years of experience and outstanding technology, designed a container gantry crane for customers, successfully solving the problem of transporting scrap steel for them.
Learn More Get a Quote
Installation of QZ-Type Grab Bucket Bridge Crane Project Case
The Sinoko QZ-Type Grab Bucket Bridge Crane was specially designed for a Brazilian client as a grab bucket crane, which significantly improved the client's work efficiency and received unanimous praise from the client.
Learn More Get a QuoteFAQs
It handles granular and blocky materials—fertilizers, grain, coal, coke, ore, sand, scrap steel, pig iron, waste—in steel plants, waste facilities, ports, construction, and recycling .
It offers mechanical, hydraulic, electro‑hydraulic, and rope‑driven configurations to match different cranes and bulk material types.
Available capacities range from 1 to 20 m³; opening pressure is ~140 bar, closing pressure ~220 bar, with cycle times of ~10–15 s opening and ~13 s closing.
Match capacity to material density, crane lifting capacity, operation frequency, and job requirements to maximize efficiency and safety .
Hydraulic and electro‑hydraulic systems offer stronger grip, smoother remote operation, and faster cycles; mechanical variants are simpler and cost‑effective where precision or hydraulics are not required.
Yes—Sinoko offers customization on structure (open, half‑closed, fully closed), materials, and compatibility with your crane setup for enhanced productivity and reduced weight .
