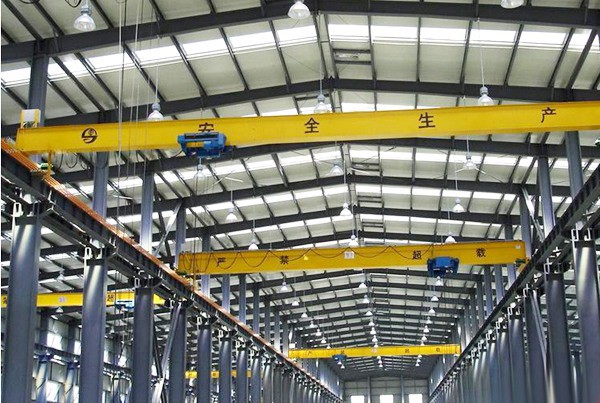

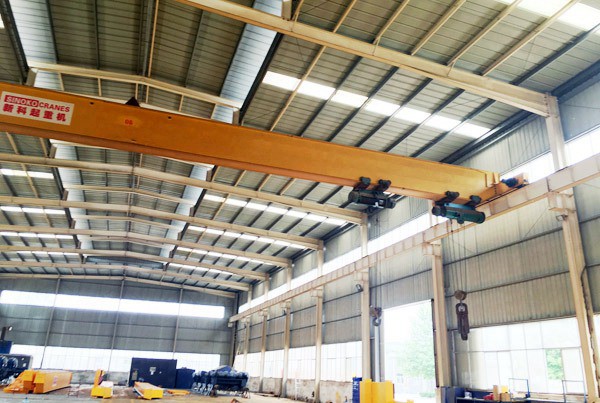

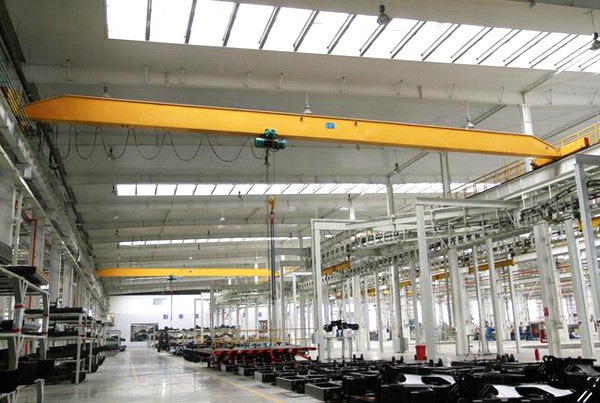

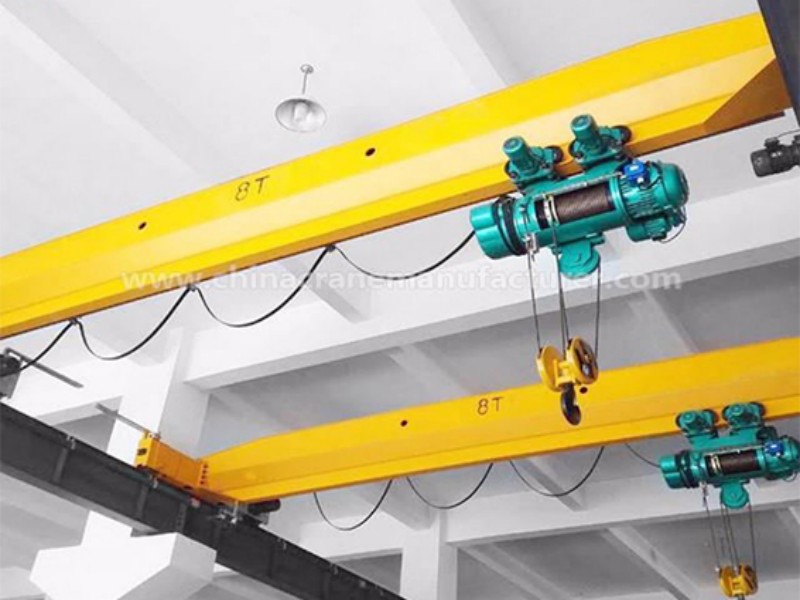

Single girder overhead crane is widely used in factory, workshop, warehouse and cargo yard, forbid to be used in corrosive and explosive places. This crane belongs to light duty overhead crane.

Working temperature: -25°C ~ +40°C.
Lifting capacity: 0.25-20ton
Span length: 7.5-32mtrs
Lifting height: 6-30mtrs
Working duty: Class A3- A5
Power: AC 3Ph 380V 50Hz or according to client's requirement
Control mode: Cabin control/remote control/control panel with pendant line

Share With:


Single Girder Overhead Crane

Sinoko Rich Industrial Experiences

Sinoko Cranes have rich experience and good at fully automatic intelligent cranes, metallurigical cranes, explosion-proof cranes, and other special cranes, we can provide you with various optional functions according to the special lifting needs in your industry, such as electronic anti-sway, remote monitoring, lifting synchronization and other functions. These are just a part of them.

What Are The Advantages of Single Girder Overhead Traveling Crane?

  • Lower upfront costs due to less material and faster installation.

  • The most economical choice for light to medium duty cranes.

  • Weight overload protective device

  • Top quality polyurethane buffer

  • Crane traveling limit switch and lifting limit switch

  • Low voltage protection function

  • Emergency stop system

  • Laser anti-collision system

Customized Single Girder Overhead Crane

The standardized design of Sinoko electric single girder overhead cranes can optimize the use of facility space. The configuration of single-girder cranes is standardized and can be combined with our hoist series to achieve maximum space utilization. In addition, single-girder cranes are also lighter in weight.


In order to provide a suitable overhead crane system for your plant, please inform us of your specific requirements, including but not limited to:

customized crane.jpg


Specification



lifting capacity(T)

1,2,3,5,10T

16,20T

Span(M)

7.5-31.5M

Crane travelling
mechanism

Travelling speed(m/min)

20/30

20/30

Motor

Model

ZDY21-4

ZDY21-4

ZDY122-4

ZDY131S-4

ZDY112L1-4

Power(kw)

2/0.8

2/1.5

1.5/2

2.2/2

2.2/2

Rotation (m/min)

1380

1380

Lifting mechanism

Electric hoist model

CD1/MD1

MD1/HC
(electric hoist)&electric hoist
travelling mechanism



Lifting speed (m/min)

8,8/0.8 7,7/0.7

3.5 3.5/0.35

Lifting height (m)

6 ,9 ,12, 18, 24, 30

12,18,24,30

Travelling speed (m/min)

20(30)

20(30)

Motor

Taper Squirrel-cage type

Taper Squirrel-cage type

Work duty

A3-A5

Power supply

380V 50HZ three phase

Wheel diameter

270mm

370mm

Tread of trail

37-70mm

37-70mm




Get a Free Quote

CASE

Based on their intended use, overhead cranes can be classified into general-purpose cranes, steel mill cranes, and explosion-proof cranes. Each type is designed with specific working environments and load requirements in mind, ensuring safety and efficiency.

Automotive Repair Facility in Russia 5 Ton Workshop Bridge Crane Project Case

Automotive Repair Facility in Russia 5 Ton Workshop Bridge Crane Project Case

The Sinoko crane, a 5-ton bridge crane tailor-made for a Russian customer's auto repair shop, has helped the customer solve the problem of lifting and transportation, improved the customer's work efficiency, and saved the customer's work costs.

Learn More Get a Quote
3× 5T European-Style Single-Girder Cranes for Kenyan Sugar Refinery

3× 5T European-Style Single-Girder Cranes for Kenyan Sugar Refinery

Sinoko cranes has designed three 5-ton bridge cranes for Kenyan customers, which have solved their problems. Come and contact Sinoko cranes to solve your lifting problems.

Learn More Get a Quote
Installation of QZ-Type Grab Bucket Bridge Crane Project Case

Installation of QZ-Type Grab Bucket Bridge Crane Project Case

The Sinoko QZ-Type Grab Bucket Bridge Crane was specially designed for a Brazilian client as a grab bucket crane, which significantly improved the client's work efficiency and received unanimous praise from the client.

Learn More Get a Quote

FAQs

Q: How much space can be saved vs double girder cranes?​

A:​​ ​​30% lower headroom requirement​​ with only 300mm hook-to-ceiling clearance. Ideal for workshops under 8m height - uses European compact hoist design for max vertical space utilization.

Q: What's the maximum cost savings compared to double girder?​

A:​​ ​​Up to 40% lower upfront cost​​ due to reduced steel usage and 50% faster installation. Maintenance costs 25% lower from simplified structure.

Q: Can it handle outdoor or corrosive environments?​

A:​​ Optional ​​IP56 protection package​​ includes: epoxy-coated steel (Q345B), stainless steel bolts, and sealed ZDY-series motors (anti-corrosion rating C4).

Q: What safety systems prevent overload accidents?​

A:​​ Triple protection: ​​±3% accuracy load limiter​​, dual-limit switches, and emergency stop on all controls (pendant/remote/cabin). Laser anti-collision available.

Q: Which control mode is best for high-precision tasks?​

A:​​ ​​Wireless remote control​​ enables ±10mm positioning: • 100m operating range • IP65 waterproof transmitter • Speed presets for delicate loads

Q: Can I upgrade for explosive environments?​

A:​​ ​​ATEX-certified explosion-proof version​​ available: • Flameproof motors • Anti-static wheels • Gas detection auto-shutdown • Certified for Zone 22 dust environments
